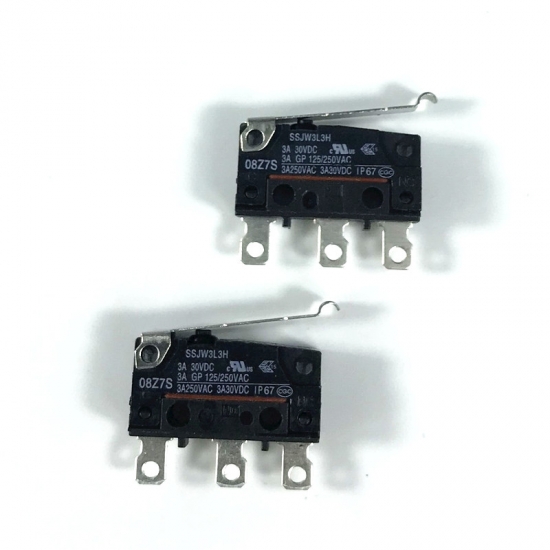

Home Switch Micro switch G10 Series lever waterproof micro switch

lever waterproof micro switch

micro switch fro pcb 3 pin 3a lever waterproof micro switch

  • Brand:

    Gangyuan
  • Item NO.:

    SSJW3L1H
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    14 working days for payment
  • Product Detail

micro switch fro pcb 3 pin 3a lever waterproof micro switch

Basic Information

Rating 3A 250VAC
Contact Resistance ≤50mΩ
Insulation  Resistance ≥100MΩ
Operating Force 0.6N Max
Operation life 1,000,000cycles
Waterproof IP67
Return Force 0.05N Min
Heat resistance 105±2℃
Moisture  resistance 60±2℃

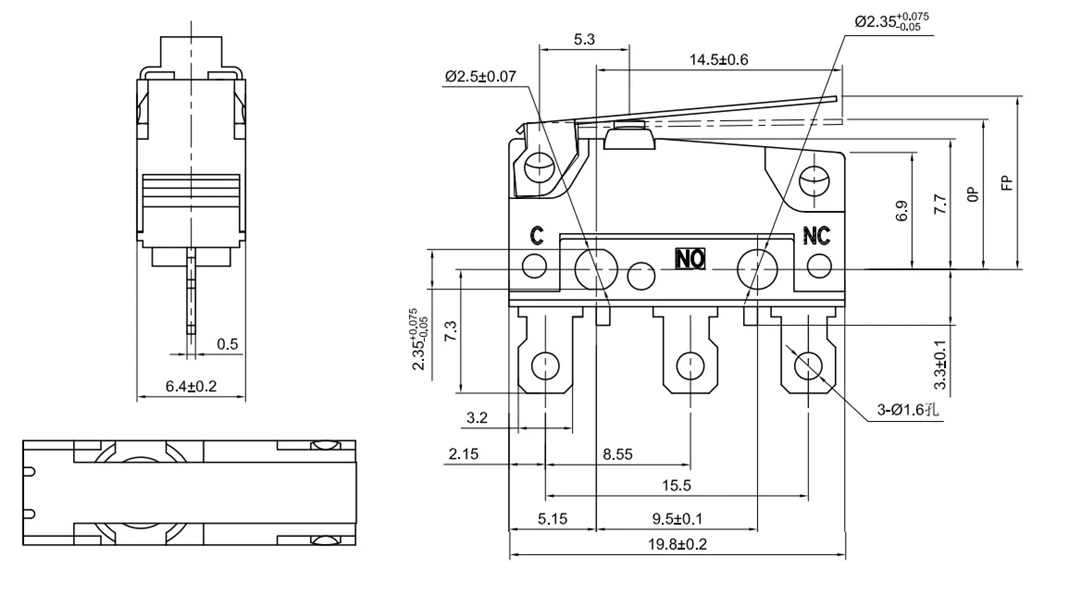

Dimension

waterproof micro switch.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
