AC Power Socket

Products

Home |Switch |Micro switch |ENEC 3 pin micro

New Products

ENEC 3 pin micro

ENEC 3 pin micro limit micro pressure switch 40t85 5e4 ip67

  • Brand:

    Gangyuan
  • Item No.:

    G15-10PM
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

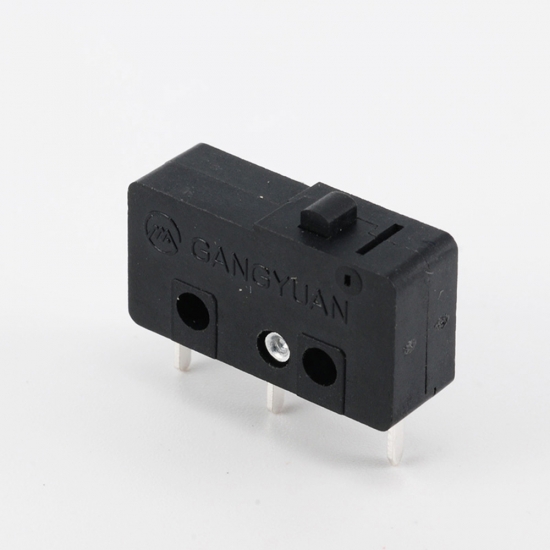

ENEC 3 pin micro limit micro pressure switch 40t85 5e4 ip67



Product Description:





Model Name:

ENEC 3 pin micro limit micro pressure switch 40t85 5e4 ip67

Model No.:

G15-10PM

Dimension:

44X34X34 cm

Operating force:

150±50gf

Life cycles:

10,000Cycles

Waterproof:



High Level

Working tempreture:

-25℃~+125℃

Rating:

10A 125/250VAC

Insulation resistance:

100MΩ Min.

Operating relative humidity

≤85%

Contact resistance:

100m Ω max.
