Copper lever operated limit micro switch

Copper lever operated limit micro switch

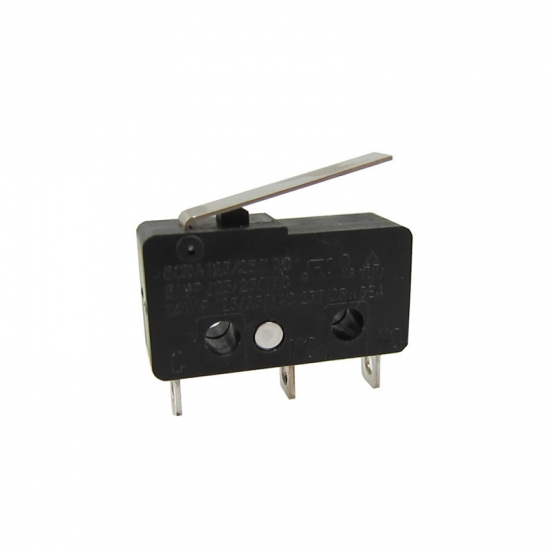

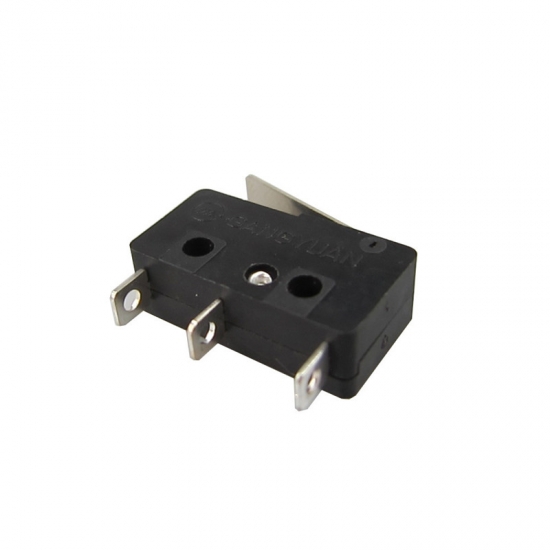

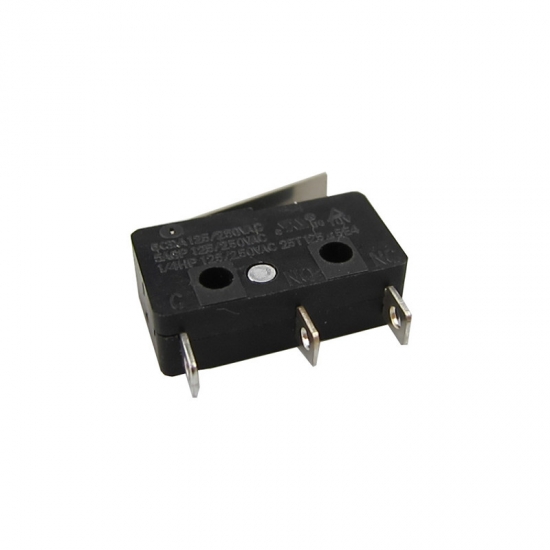

Black lever operated SPST solder terminal micro switch

Product details

1.Operating Temperature Range : -25℃～+125℃
2.Operating Relative Humidity : ≤85%
3.Voltage Rating : 125/250V AC
4.Current Rating : 10A
5.Contact Resistance : ≤100mΩ
6.Insulation Resistance  : ≥100MΩ
7.Dielectric Withstanding Voltage  : 1000V AC 1Min
8.Soldering Temperature : 260±5℃ 5s
9.Operating Force : 40±20gf
10.Life Time(mating cycles) : 10000 Cycles

Benefits of using micro switches

   The main advantages of micro switches are their simple operation, long mechanical life and low price. Micro switches are also widely used. Some micro switches have an IP67 degree of protection, which means they can operate normally in dust and water environments.

Company advantage
   We are a supplier with a history of more than 25 years. The production chain is complete and the supply is stable. Most of the products have achieved mechanized production. In addition, we have a 100,000-level dust-free workshop, which truly achieves product dust-proof testing requirements.

FAQ

1. Why choose GANGYUAN ?
A: We promise: All our products have quality assurance, and are of high quality and competitive prices. We have the best after-sales service to ensure that you receive the goods satisfactorily. 100% long-term full load aging test/aging test has been carried out before leaving the factory.

2. What is the scope of application of this product?
A: Household appliances, automotive electronics, office equipment, medical treatment. Industrial control and other fields.

3. Can your products pass CE/ROHS certification?
A: Yes, our products comply with industry standards, such as CE / ROHS / CCC

4. Accept sample orders? What is your minimum order quantity?
A: Trial orders or sample orders can be accepted, but the cost is different from bulk purchase

5. What shipping methods can you provide?
A: Express/air/sea according to customer requirements.

6. Does your product come with a warranty?
A: Yes, we promise to provide 1-3 years warranty according to different models.
