Home Switch Rocker switch China 3 pin rocker switch t85 55

China 3 pin rocker switch t85 55

Rocker switches are used in water dispensers, treadmills, computer speakers, battery cars, motorcycles, ion televisions, coffee makers, power strips, massage machines, etc., and are mainly used for household appliances.

  • Brand:

    Gangyuan
  • Item NO.:

    KCD1-103B-1
  • Order(MOQ):

    1000
  • Payment:

    EXW
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

Wholesale 10A 250VAC round rocker switch manufacturers

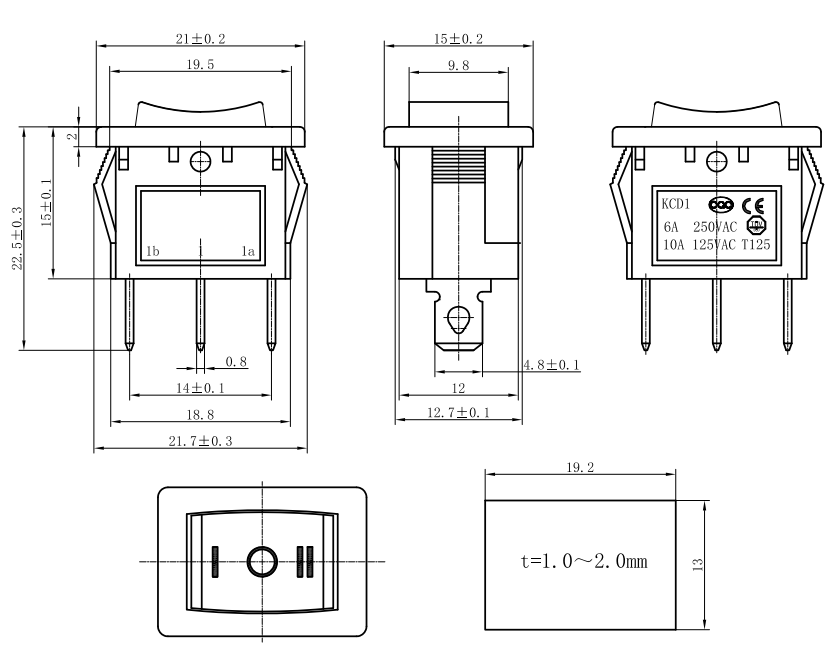

Product Specification Drawing


Detailed parameters show


Product name
Rocker switch
Contact Resistance
≤100mΩ
Insulation Resistance
≥100MΩ
Rating
6A 250VAC/10A 125VAC
Life
≥10000 cycles
Circuit
ON OFF ON
Number of rods
3 ways
Relative humidity
98% (40℃)


Rocker switches are designed to perform in a variety of applications



1. Instrumentation front panels (shut-off switches)


2. Electrical equipment (power supplies, power outlet strips, battery chargers)

3. Household appliances (small and large, vacuum cleaners, food equipment)

4. Computers and peripherals (servers, network hubs, routers)

5. Telecommunications

6. Audio/visual equipment

7. Industrial equipment (control panels, handling and packing machines, HVAC units, shop vacs)

8. Small equipment (handheld devices, electric tools, office equipment)

9. Lighting fixtures, emergency lighting and generators

10. Off-road vehicles

11. Medical equipment


The test method of ship switch life



Mainly test the number of opening and closing until it is damaged. If you don’t need to manually use a small motor to drive the eccentric opening and closing switch, use a counter to record the number of times! This switch requires safety certification is a must. If the product is sold in China, use CQC. Which country does the specific sales go to, such as UL in the United States, CUL in Canada, and European countries have VDE, ENEC, TUV and other safety certifications.


What should I do if the rocker switch fails?


The rocker switch is a very common one that lights up with a red light when it is switched on. Sometimes it can’t be turned off, just can’t bounce back, and it often jumps to the failure of the air switch.


Ways to solve the problem


There is a metal sheet inside the rocker switch with a spring fulcrum in the middle. The spring displacement and the aging and deformation of the plastic bracket make the switch inflexible. You can disassemble it after the power is turned off and have a look. If the plastic part is not damaged, it may be restored. The neutral wire inside the switch is straight through and has nothing to do with the switch components. Therefore, if the switch jumps to the air switch, the insulation layer of the neutral wire of the switch is damaged. You can cut off the damaged section and reconnect the wiring. Pay attention to the insulation to ensure . It is also possible that the indicator pin has a short circuit, just re-wiring.
