Home Switch Rocker switch boat rocker switch white round button

boat rocker switch white round button

6A 250VACrocker switch is an on/off switch that rocks (rather than trips) when pressed, which means one side of the switch is raised while the other side is depressed much like a rocking horse rocks back and forth.

  • Brand:

    Gangyuan
  • Item NO.:

    KCD1-101C-3Y
  • Order(MOQ):

    500
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    White
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

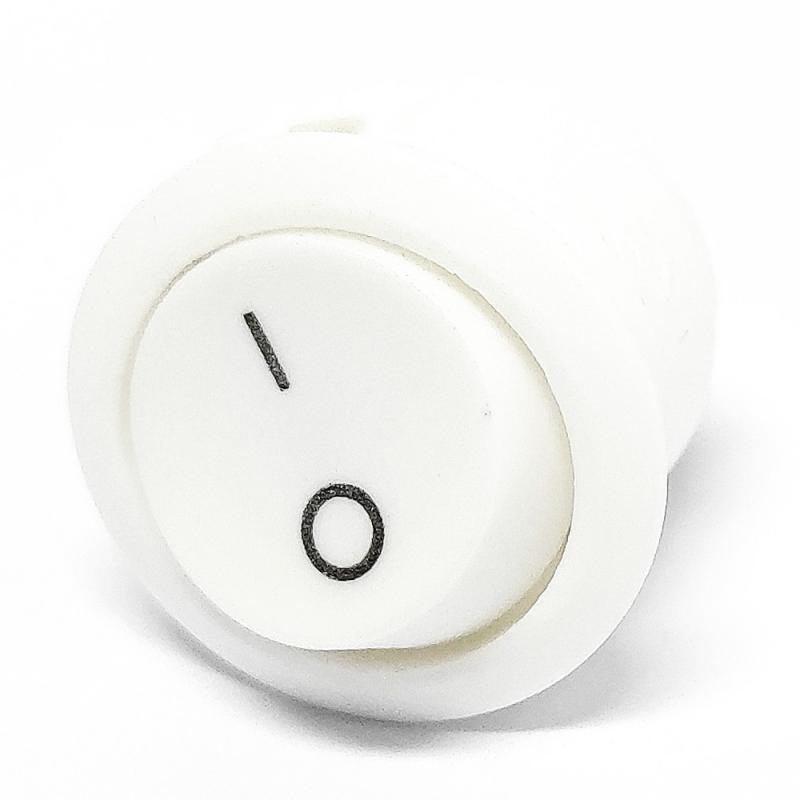

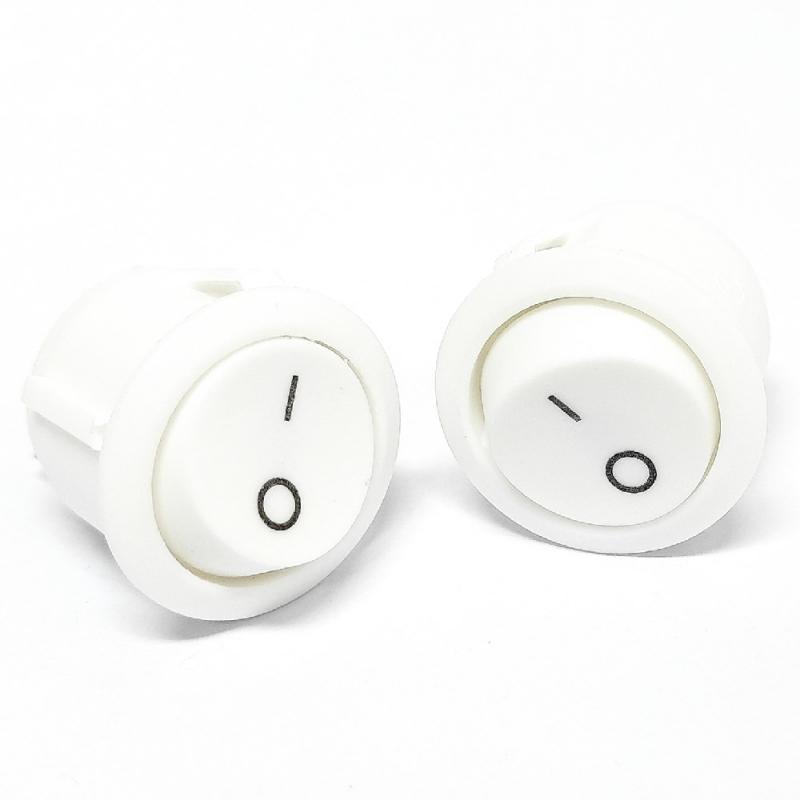

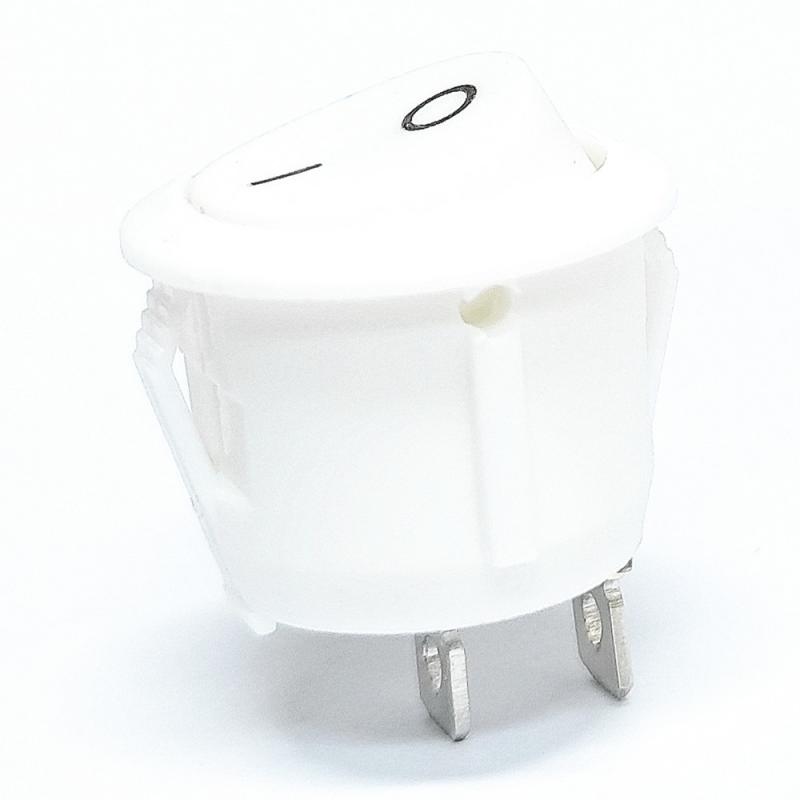

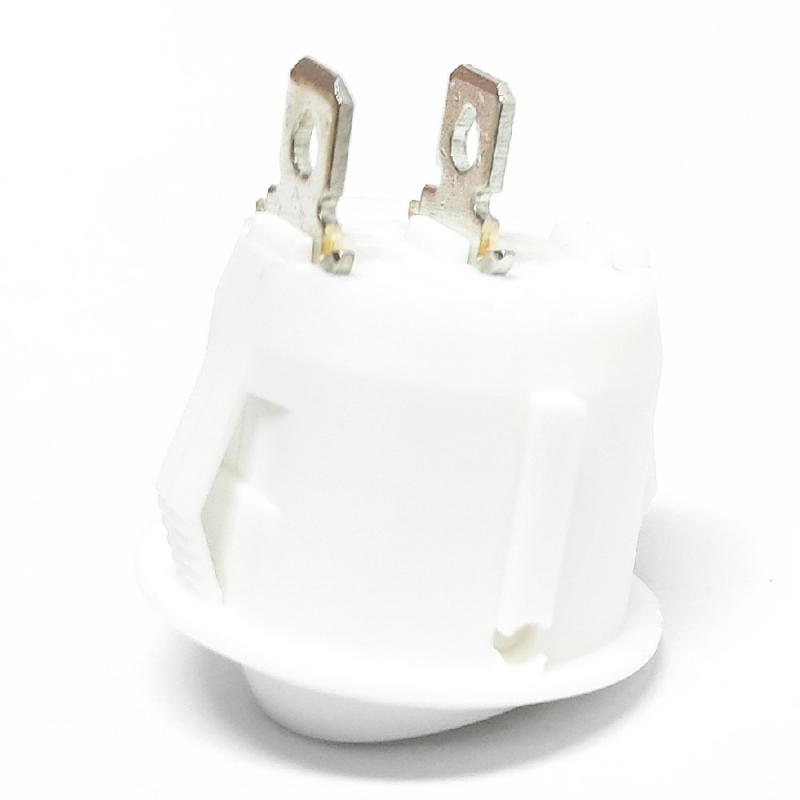

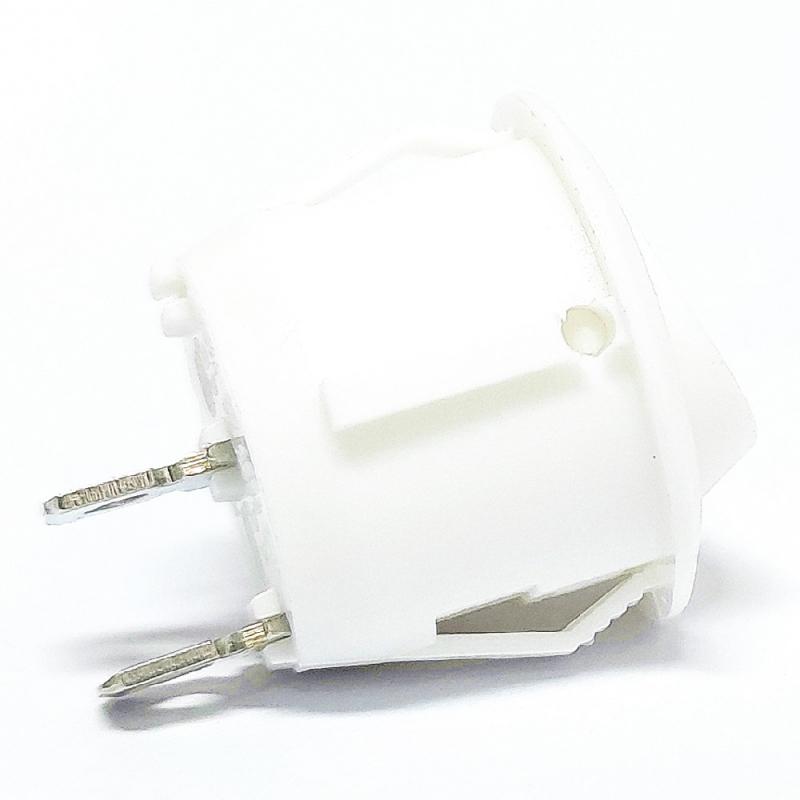

23mm diameter small white panel rocker switch

rocker switch wholesale supplier


 Parformance

Type: SPST round rocker switch

Circuit: ON-OFF

Rating: 6A 250VAC / 10A 125VAC

Insulation resistance: ≥ 100MΩ

Contact resistance: ≤ 100mΩ

Dielectric strength: ≥ 1500V/1 min

Endurance: ≥ 10000 cycles

Ambient temperature: T55

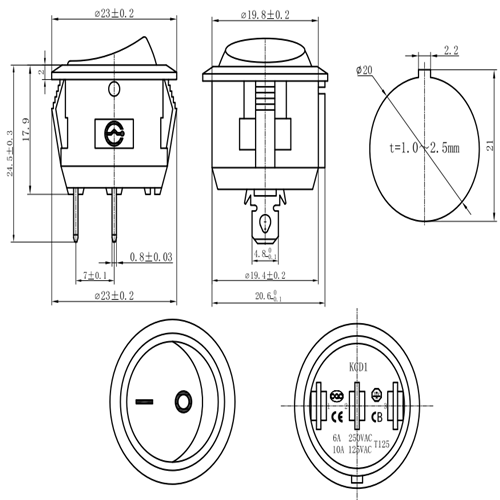

 2 pin rocker switch wiring diagram

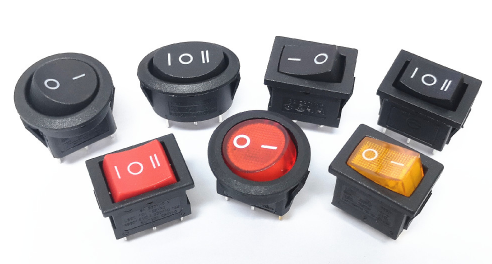

 What are the 4 types of switches ?


The types of switches are classified into four types namely:
SPST (Single Pole Single throw)
SPDT (single pole double throw)
DPST (double pole, single throw)
DPDT (double pole double throw)


 Scope of application


Rocker switches wholesaler are used in water dispensers, treadmills, computer speakers, battery cars, motorcycles,

ion televisions, coffee pots, massage machines, etc., and are mainly used for household appliances.
