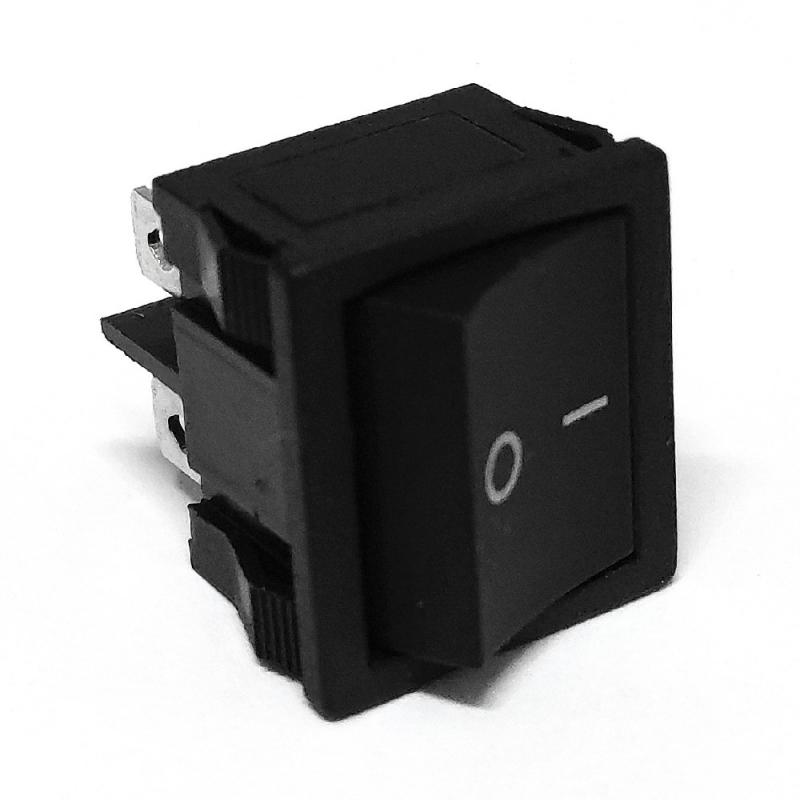

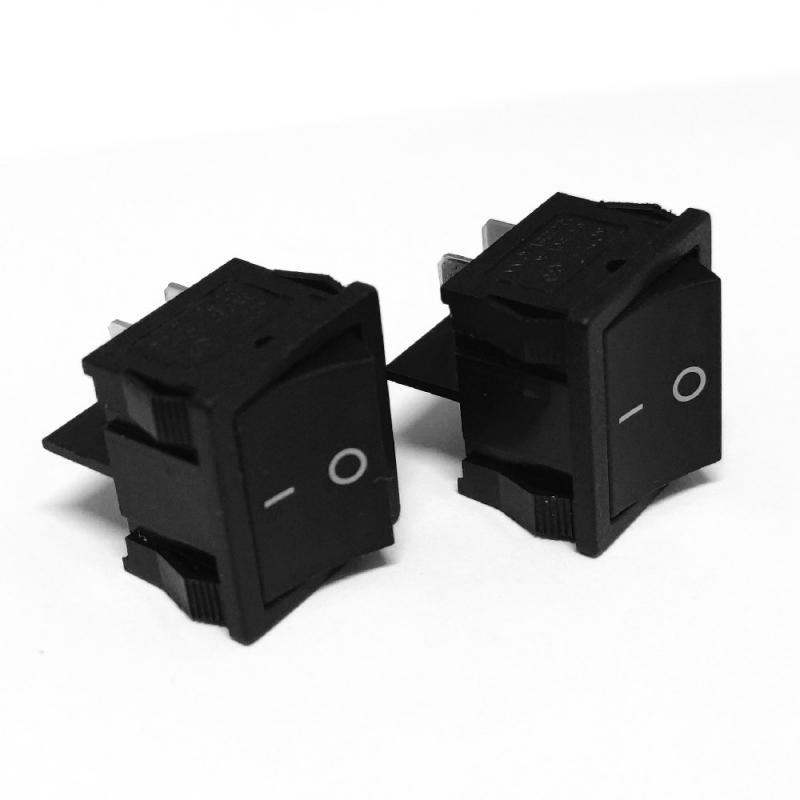

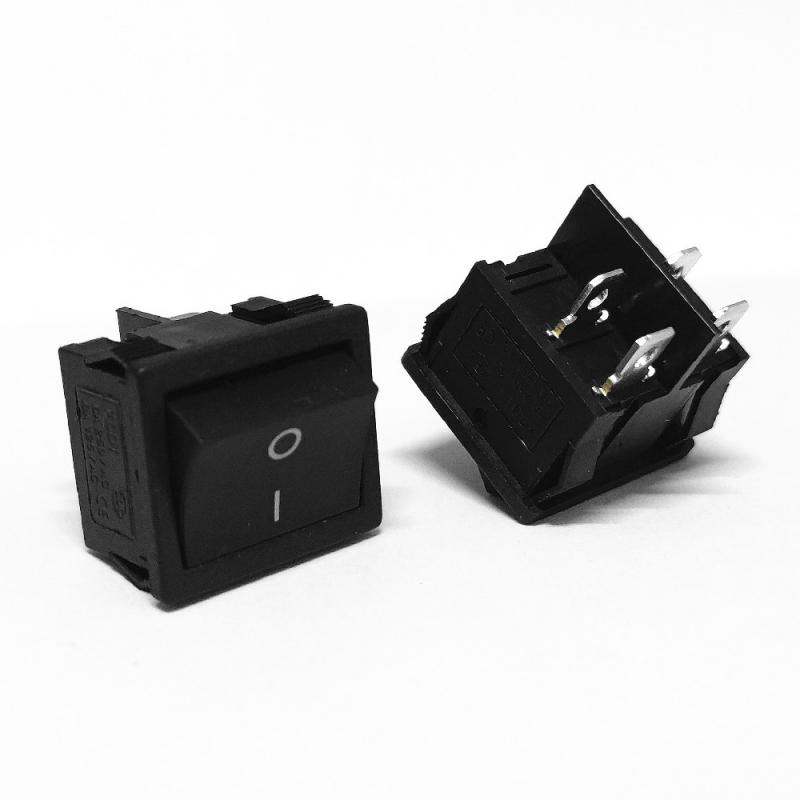

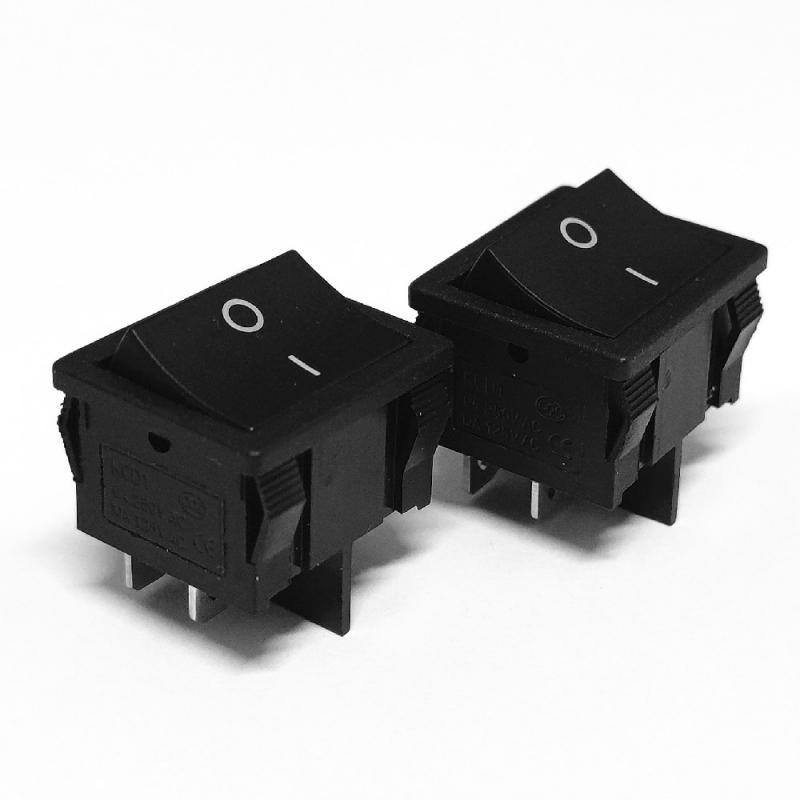

Our rocker switches are available in a variety of mounting and termination styles to suit a wide range of application requirements.
Brand:
GangyuanItem NO.:
KCD1-201A-YOrder(MOQ):
1000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
WenZhou/ShenzhenLead Time：
7-14 Working Days For Payment6A/250VAC, 10A/125VAC with hole pin boat rocker switch
rocker switch wiring 4 pin
Parameter

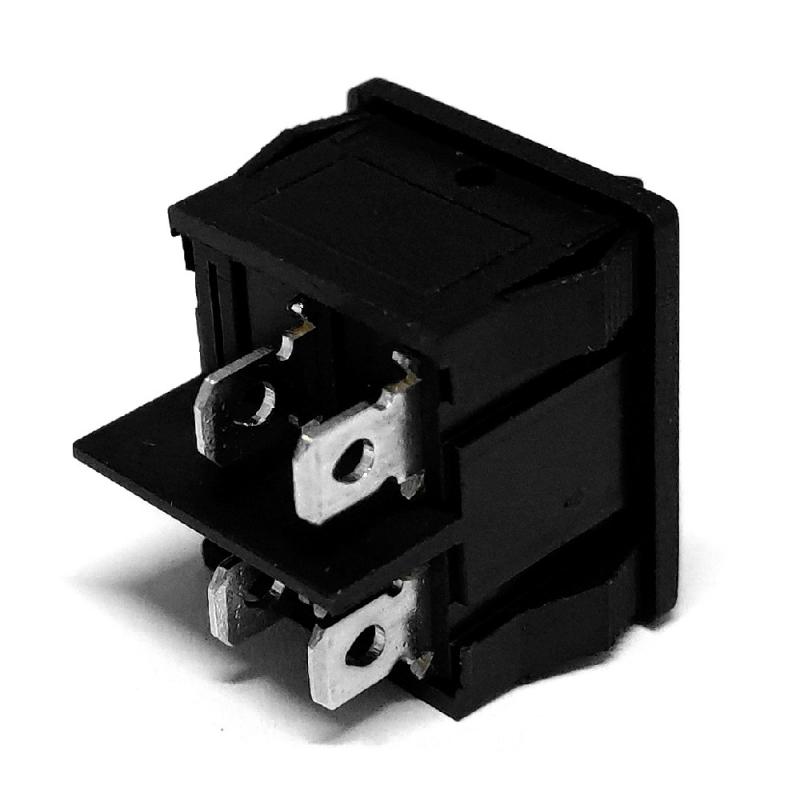

4 terminal rocker switch
Rated voltage/current:6A/250VAC, 10A/125VAC
Insulated resistance: ≥100MΩ
Contact resistance: ≤100MΩ
Dielectric strength: ≥1500V/5S
Endurance: ≥10000
Ambient temperature: T55
Circuit:

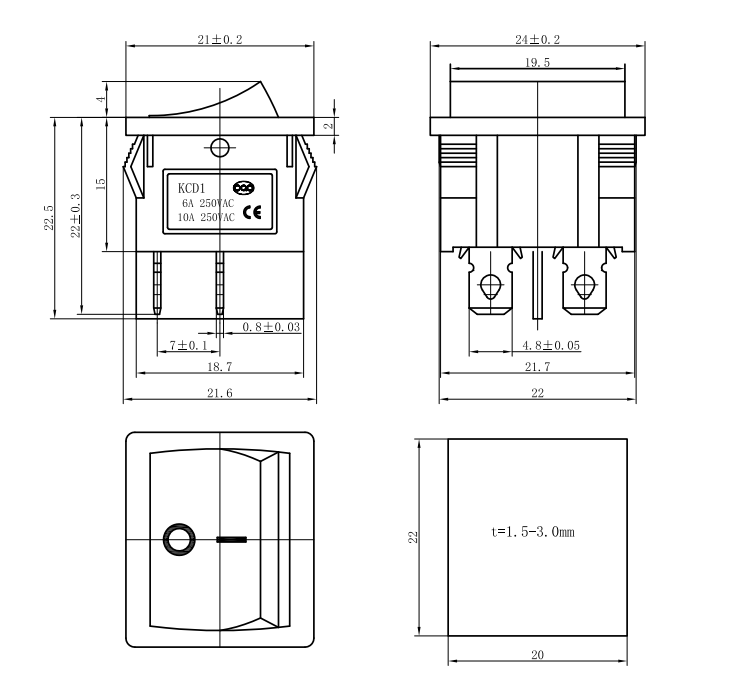

Drawing
Type of switch
SPST: 1 moving contact and 1 stationary contact. only 1 channel
SPDT: 1 moving contact and 2 static contacts, (the static contacts on both sides can be connected respectively)
Double pole single throw: 2 moving and 2 stationary contacts, with 2 channels
Double pole double throw: 2 moving contacts and 4 static contacts, there are 4 channels (2 static contacts on both sides can be connected respectively)
Application
Rocker switches are used in water dispensers, treadmills, computer speakers, battery cars, motorcycles, ion TVs, coffee pots, power outlets, massage machines, etc., mainly for household appliances.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
