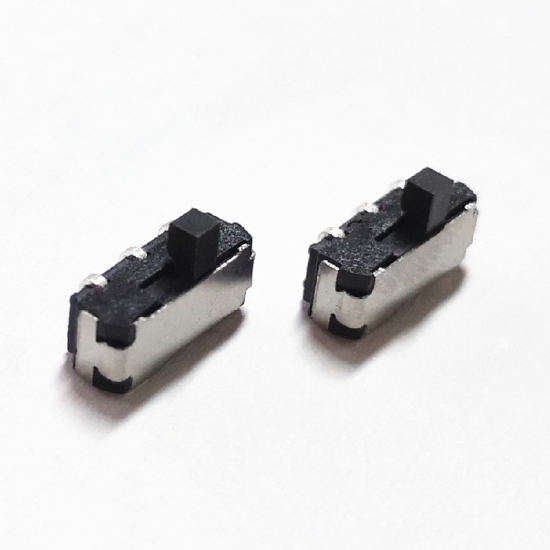

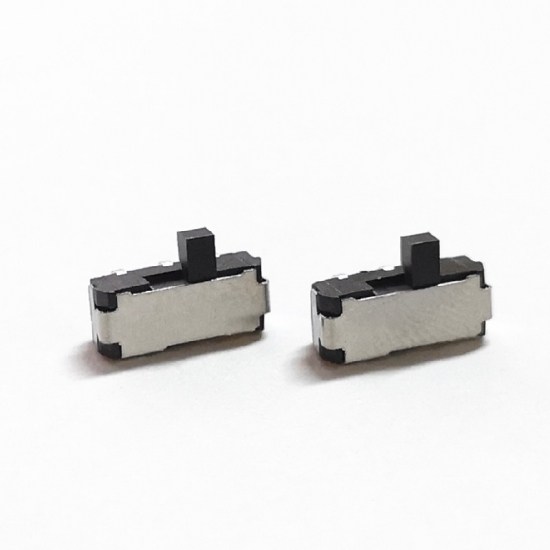

bent 6 pin micro slide switch

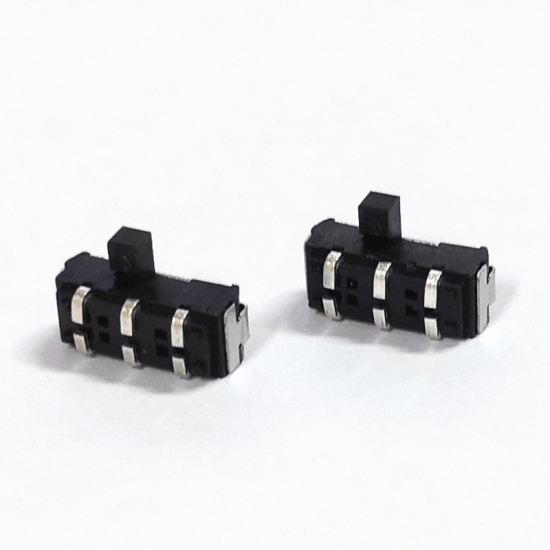

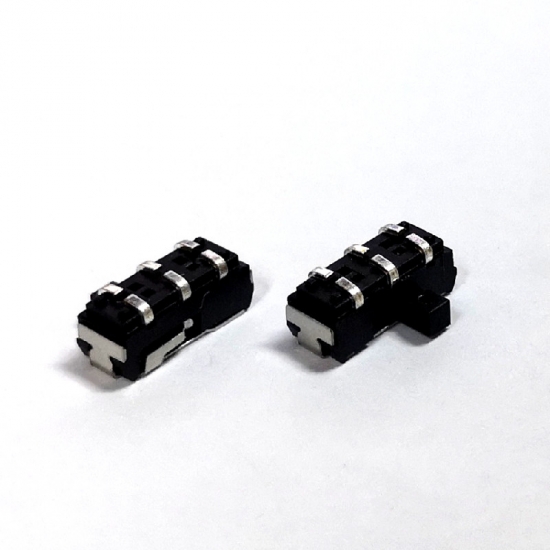

smd dpdt side push button slide switch

Slide switches are used to control current flow in a circuit, and typically use a mechanical slider to switch a current on and off, by sliding between an open and closed state.

 Detail parameter

Rating:DC120V 50mA

Insulation resistance: 100mΩ Min(DC 100V)

Practical temperature range: -16℃- +60℃

Operating force: 200gf±100gf

Life test: 15000 cycles

Operating temperature :-10℃~+60℃

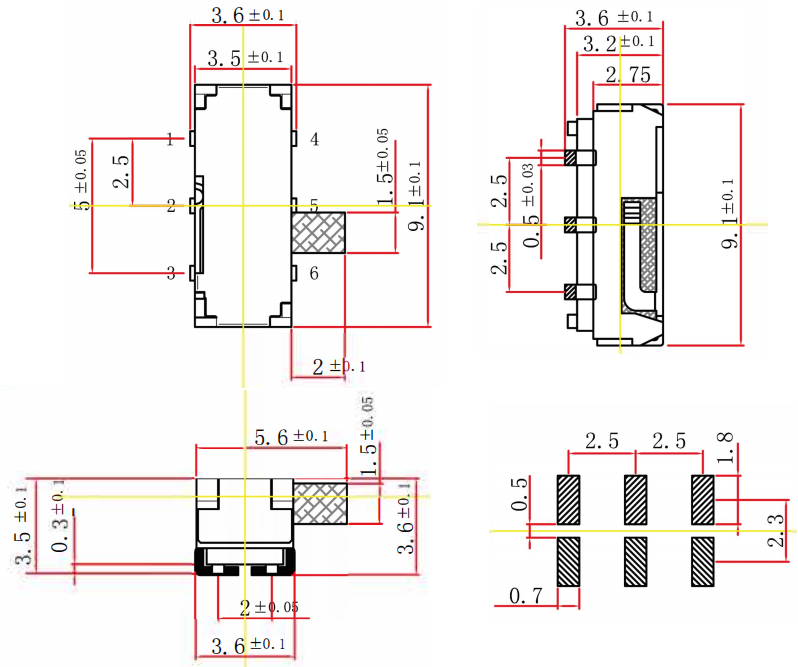

 Slide switch datasheet

 Is a slide switch ?

The toggle switch is a type of electrical switch that is identified by the presence of handle or lever that makes it possible to control the flow of electric current/signal from a power supply to a device or within a device. It is a hinged switch that can assume either of two positions ie

 Application

• Computers, peripherals and network devices (laptops, network hubs, routers, gaming controllers)
• Telecommunications equipment (telephone and cable modems, audio-visual devices, microphones)
• Consumer electronics (handheld games, remote controls, headphones, headsets, earbuds, channel selector on set-top boxes)
• Test and measurement equipment
• Appliances (small and large, both indoor and outdoor)
• Small equipment (handheld devices, portable tools, office equipment)
• Automotive and medical applications
• Thermostat select switch
• Lighting devices

 FAQ

1. Q: Are you manufacture/ factory? Location?

   A: Yes,metal push button switch factory.Three palnts located in Shenzhen , Zhejiang, Hubei     province.

2. Q: Can I get free sample before placing an order ? MOQ?

   A: Yes, free samples will get ready within 3~5 days. For the slide switches, our MOQ is 1,000pcs.

3. Q: What about the delivery time?

   A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

   A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?

   A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

  A: Yes, we have 100% test before delivery.
