Home Switch Slide switch 2 position colorful defond slide switch

2 position colorful defond slide switch

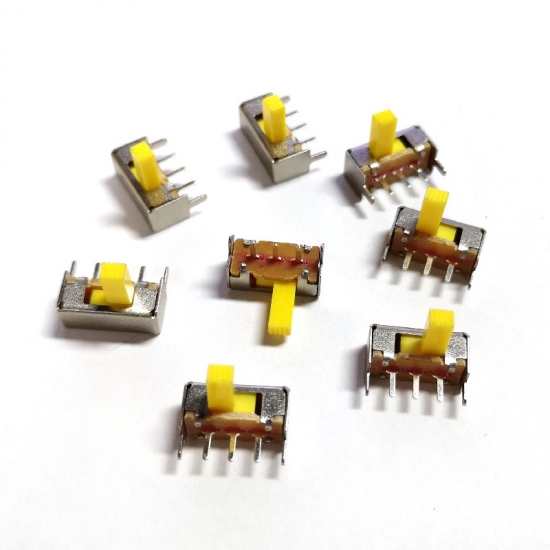

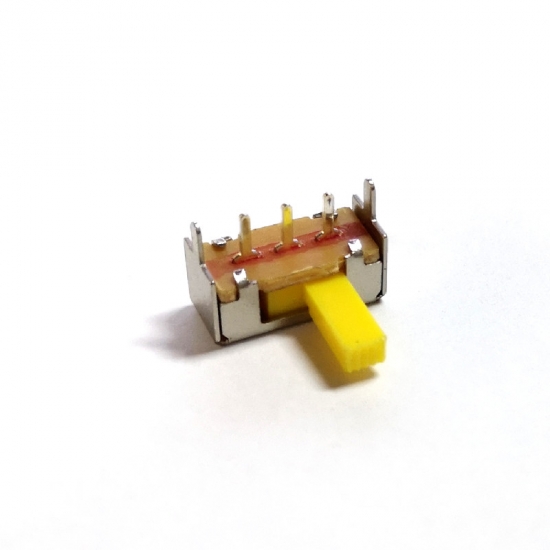

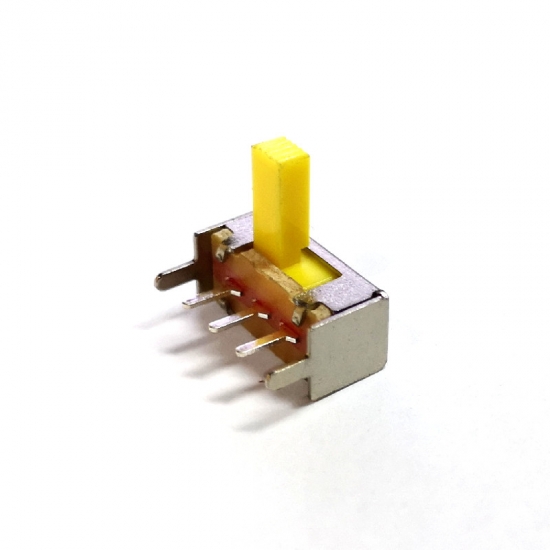

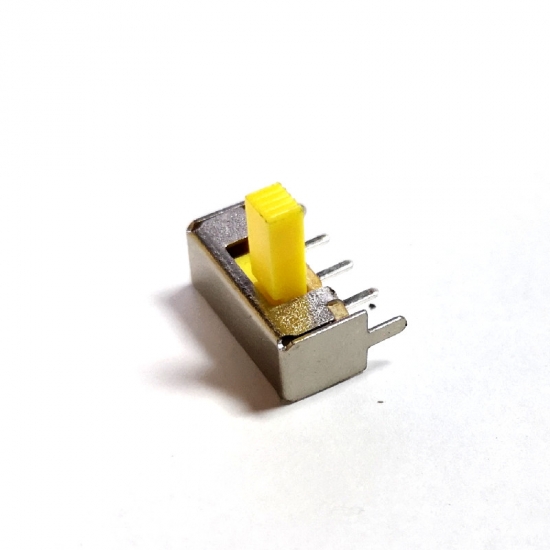

The slide switch handle is usually black. This yellow handle is custom switch. The surface of the switch is very smooth without burrs.

  • Brand:

    Gangyuan
  • Item NO.:

    SK12F14 ( Yellow Han
  • Order(MOQ):

    1000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Yellow handle
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

mechanical small 2 way slide switch

This slide switch can use nylon material to increase the use temperature. It can reach about 240°.


 Detail parameter


Rating:DC 50V 0.5A

Function:Non-shorting

Contact resistance: 30mΩ MAX

Insulation resistance: 100MΩ MIN

Practical temperature range: -16℃- +60℃

Operating force: 300gf±100gf

Life test: 8000 cycles

Handle height :7mm ( Can custom push button switches )

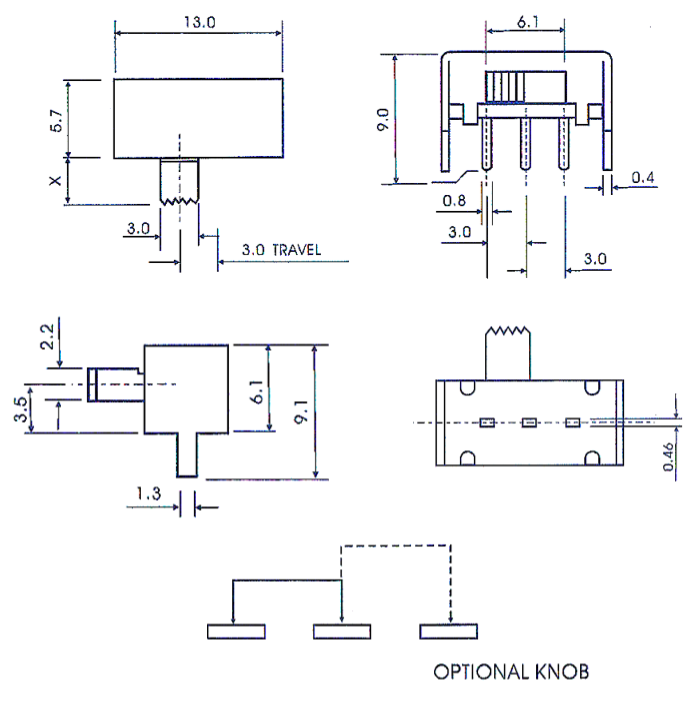

 Slide switch datasheet

 What is a toggle switch used for ?


The slide switch is a type of electrical switch that is identified by the presence of handle or lever that makes it possible to control the flow of electric current/signal from a power supply to a device or within a device.


 Application


  • Computers, peripherals and network devices (laptops, network hubs, routers, gaming controllers)
  • Telecommunications equipment (telephone and cable modems, audio-visual devices, microphones)
  • Consumer electronics (handheld games, remote controls, headphones, headsets, earbuds, channel selector on set-top boxes)
  • Test and measurement equipment
  • Appliances (small and large, both indoor and outdoor)
  • Small equipment (handheld devices, portable tools, office equipment)
  • Automotive and medical applications
  • Thermostat select switch
  • Lighting devices


 FAQ


1. Q: Are you manufacture/ factory? Location?

   A: Yes, electric switch manufacturer. Three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

   A: Yes, free samples will get ready within 3~5 days. For the slide switches, our MOQ is 1,000pcs.

3. Q: What about the delivery time?

   A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

   A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?

   A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

  A: Yes, we have 100% test before delivery.
