Home Relay & Sensor 8 Pin 12V 5A signal Relay

8 Pin 12V 5A signal Relay

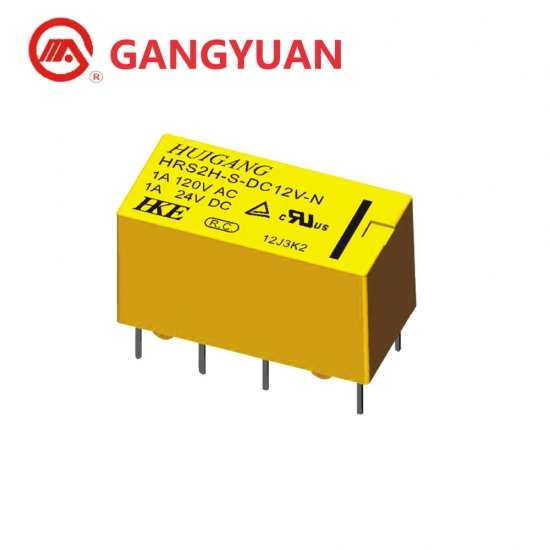

Yellow color 8 Pin 12V 5A small signal  Relay for PCB Board

  • Brand:

    Gangyuan
  • Item NO.:

    HRS2H-S-DC12V-N
  • Order(MOQ):

    50 pcs
  • Payment:

    T/T
  • Product Origin:

    zhejiang/shenzhen
  • Color:

    yellow
  • Shipping Port:

    ningbo or shenzhen
  • Lead Time:

    3 Working Days after payment
  • Product Detail

Yellow color 8 Pin 12V 5A small signal  Relay for PCB Board

Basic Information

1.Voltage Sensitive relay.
2.Contact type:a set normal open
3.Dimension:24.4*12.9*24.8mm

4.Certificate:UL,CSA,VDE,TUV.
5.Cross contacts and riveted points
6. Creepage distance: 6mm

Contact Form
2A
Contact Material
Ag Alloy
Coil Voltage
3-48VDC
Coil power consumption
250/540
Dielectric
1,000V
Operating temp range
-30-+70℃
Electrical life expectancy
100,000
Mechanical
5,000,000
Operating time
20ms
release time
10ms

Dimension



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
