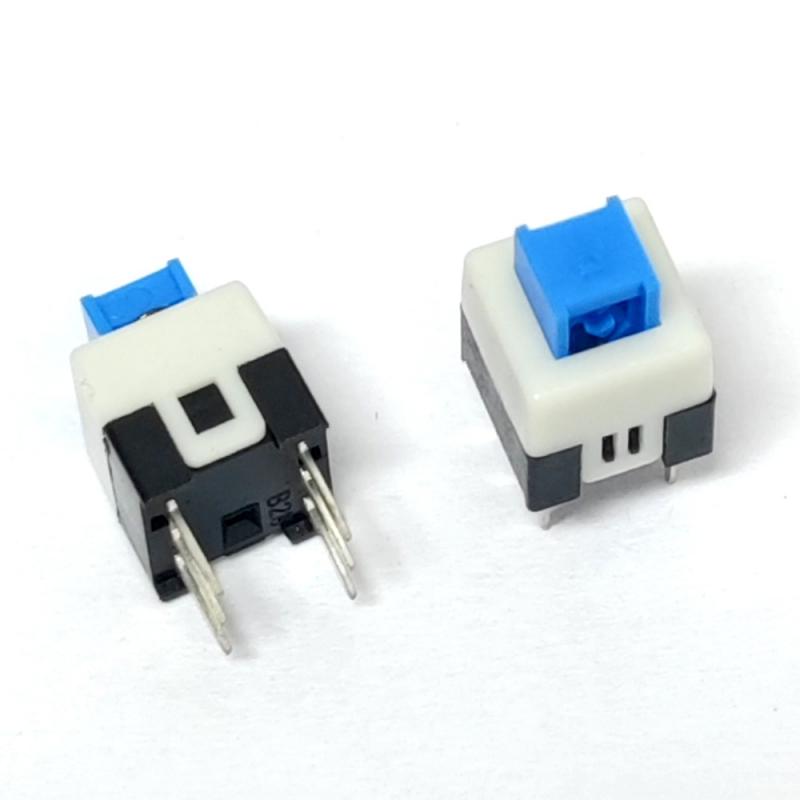

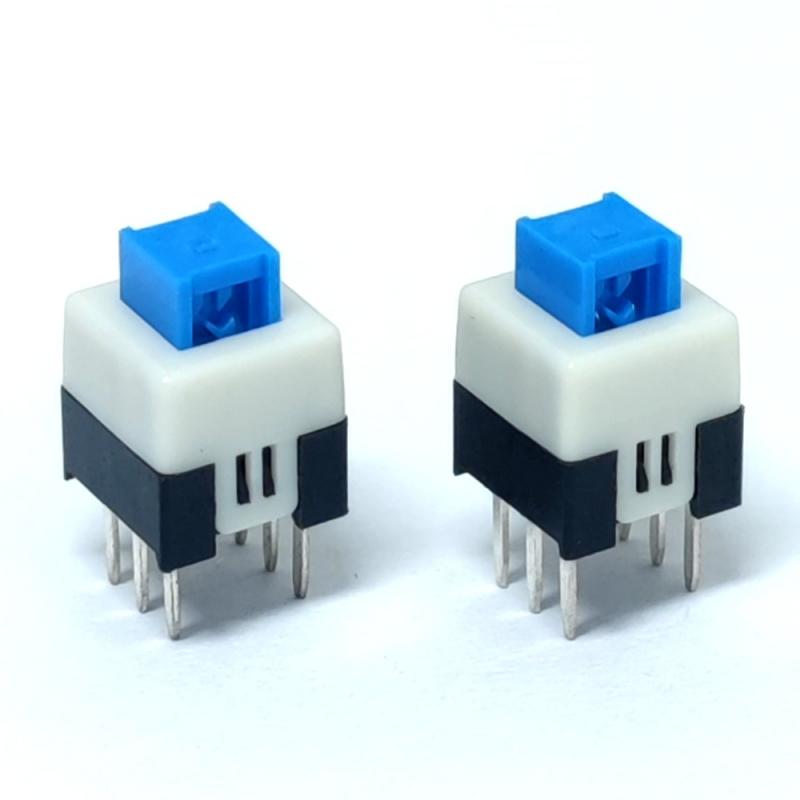

This 7x7 non-locking tactile switch features a compact 7x7mm footprint, 6-pin through-hole design for easy PCB soldering, and a blue actuator for clear visual feedback. It is a cost-effective alternative to ALPS, C&K, and Digi-Key stocked 7x7 push button switches, with consistent quality and flexible MOQ for bulk orders. Whether you need 7x7 self locking push button switches for latching control or 6 pin momentary push button switches for momentary operation, this through-hole tactile switch delivers reliable performance for your projects.
Brand:
GangyuanItem NO.:
PB22E07431-0107Order(MOQ):
100pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
7.00mm x 7.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
No IP RatingMini Type Power Button Switch High/Flat Head Double Row 6pin 7x7 Self Locking Switch
Specification
Type: 6 Pin Locking Push Button Switch
Ratings:DC 30V 0.1A
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Operating force: 250±70gf
Full Travel: 2.0±0.2mm
Lock Travel: 1.2±0.2mm
Operation Life: 5000 cycles

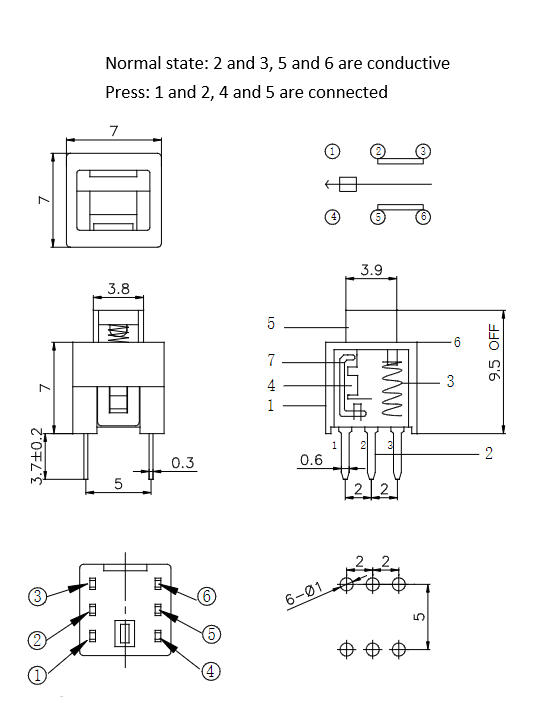

Schematic
Through hole PCB switch
Feature
1. Dual Operation Modes
Available in bothself-locking (latching) andnon-locking (momentary) actuation, covering diverse control
needs for latching and momentary operation in one compact footprint.
2. Compact 7x7mm Standard
FootprintIndustry-standard 7×7mm size, compatible with universal PCB layouts, ideal for space-constrained
consumer electronics and control panels.

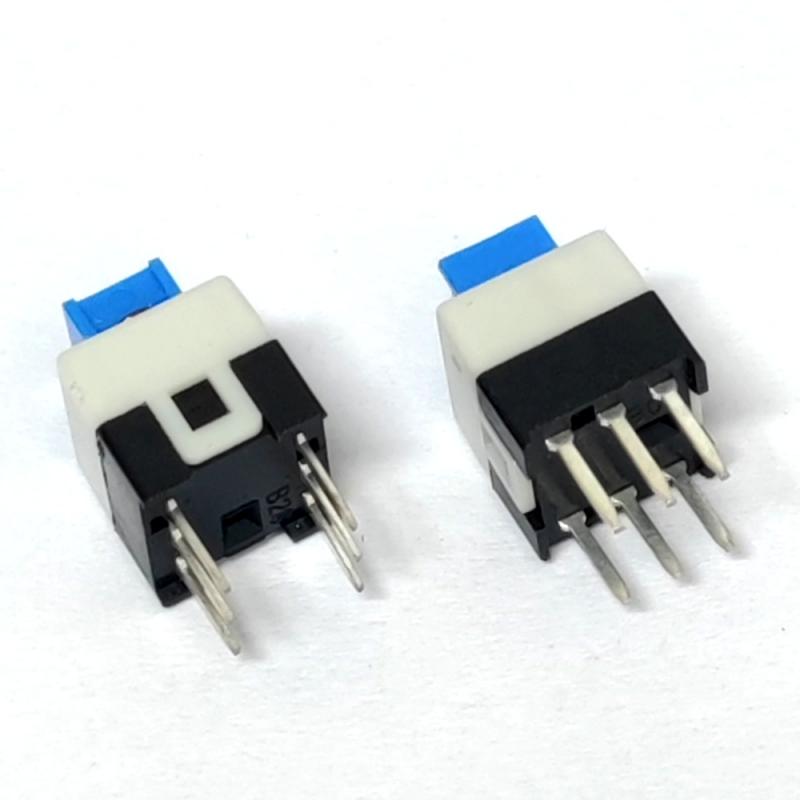

3. 6-Pin Through-Hole Mounting
6-pin through-hole design for secure PCB soldering, stable mechanical fixation, and reliable electrical connection,
compatible with automated assembly lines.
4. Clear Visual Feedback
Bright blue actuator with visible internal structure, providing intuitive operation feedback, easy for users to identify switch status.
5. Wide Application Compatibility
Suitable for consumer electronics, industrial control panels, household appliances, automotive electronics, and PCB-based control systems,
a cost-effective alternative to ALPS/C&K/Digi-Key stocked switches.
6. Factory-Direct Bulk Supply
Produced by our in-house switch manufacturing factory, with flexible MOQ, consistent quality, and customizable options for bulk orders.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.

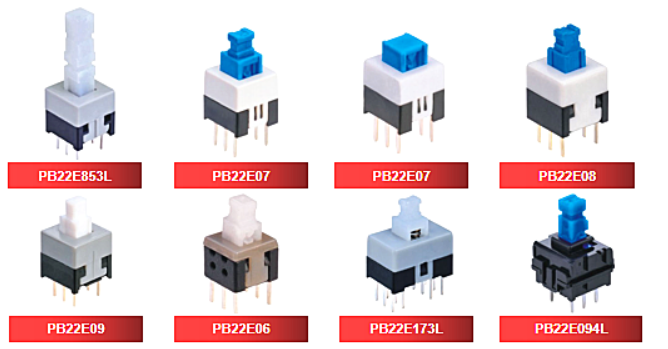

Categories
