The 5.8mm Tactile Push Switch with Lock Function & High Headis a 5.8mm-diameter momentary push button switch that supports both momentary (self-resetting, non-latching)
Brand:
GangyuanItem NO.:
PB22E06371-06Order(MOQ):
500pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
5.80mm x 5.80mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating

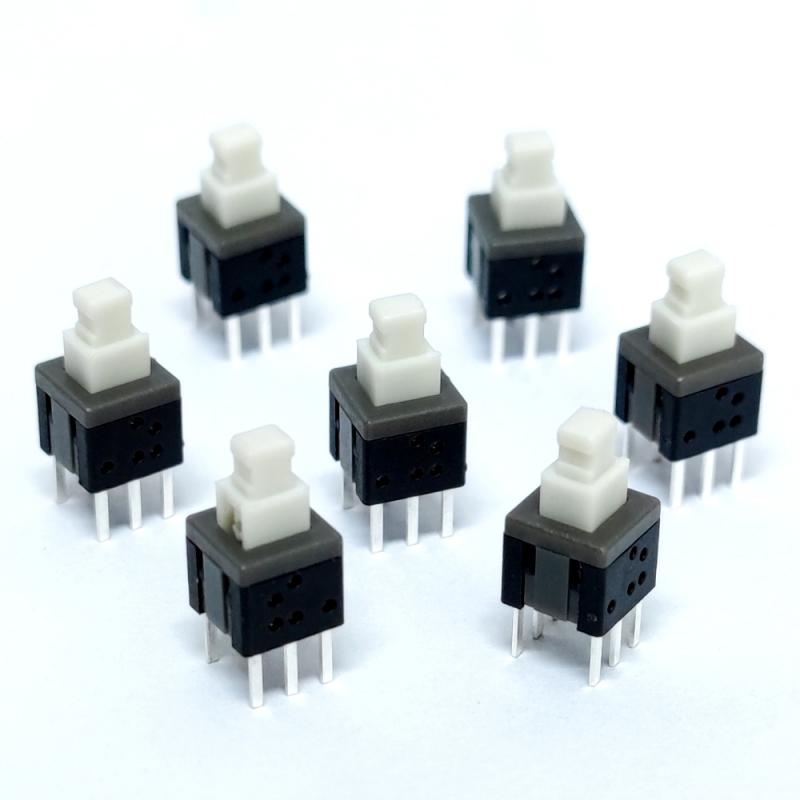

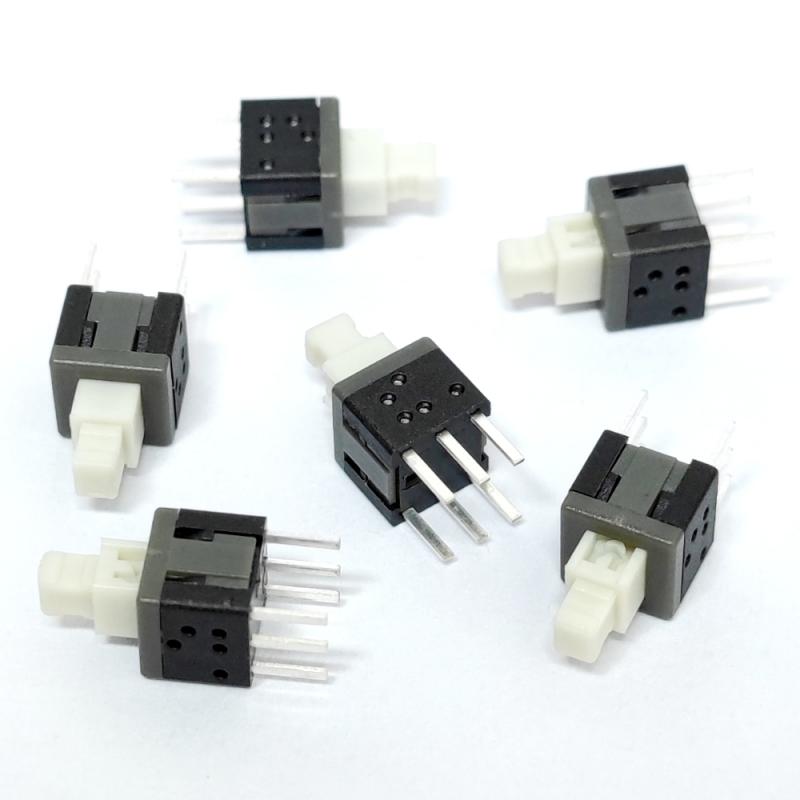

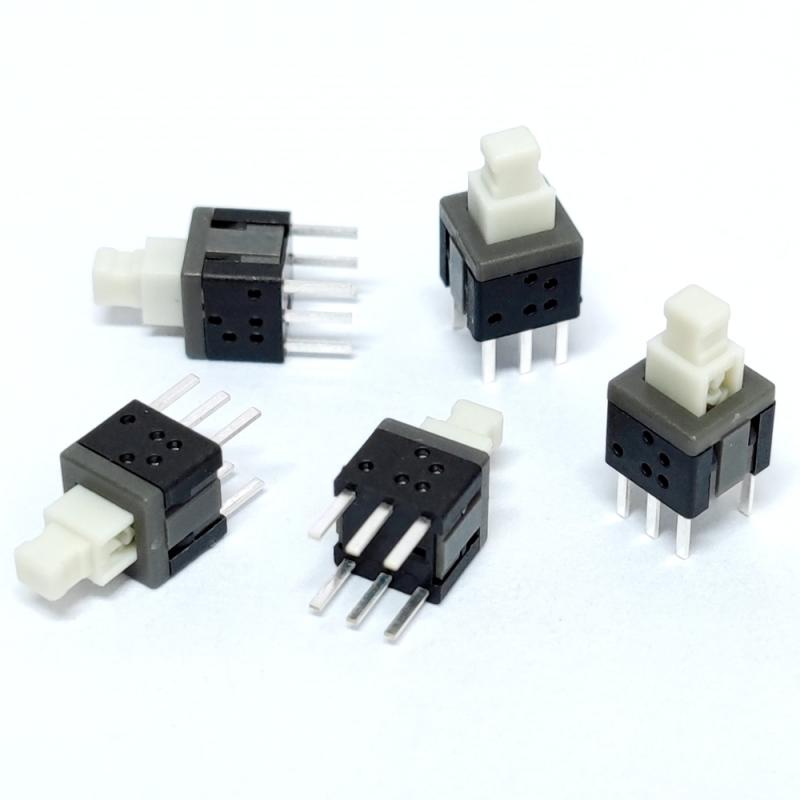

No IP Rating5.8*5.8mm High HeadLatching Tactile Push Button Switch
Specification
Type: 6 Pin Locking Push Button Switch
Ratings:DC 30V 0.1A
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Operating force: 200±80gf
Full Travel: 2.2±0.2mm
Lock Travel: 1.4±0.2mm
Operation Life: 5000 cycles

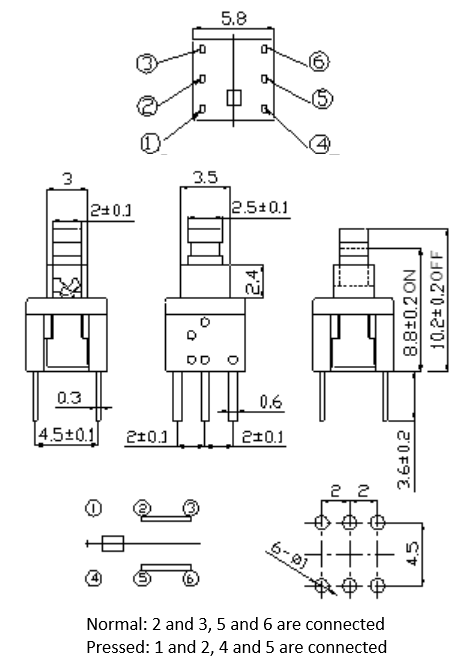

Schematic
Feature
1. High head design: The top of the button is obviously protruding, which is easy to press, identify and operate.
Suitable for scenarios requiring one-touch lock/unlock functionality or high-pressure feedback, such as industrial equipment control panels and consumer
electronics mode switching buttons.
2. SMD/THD mounting options: Compatible with PCB or panel mounting, stable contacts and long life.
Applications
Telecommunications / Networking
Computers/servers / Performance audio
Instrumentation / Low power on/off designs
External hard drives and modems
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
