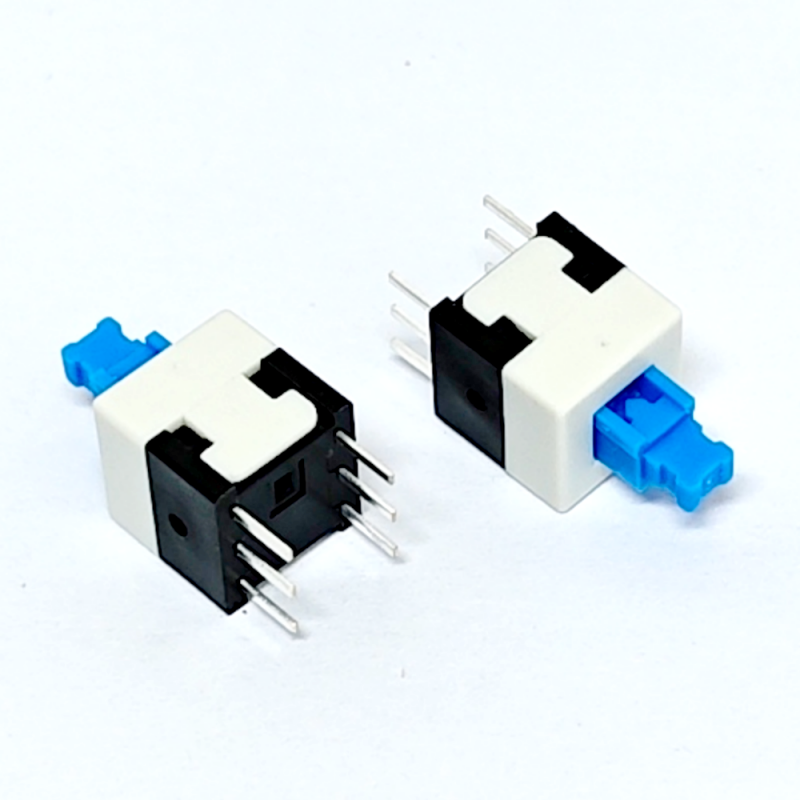

8x8mm Square Latching Pushbutton Switch

Engineered for versatility and reliability, our 8x8mm square push button switch offersdual operating modes (self-locking / momentary ) to meet diverse application requirements.

Brand:
Gangyuan
Item NO.:
PB21E08431-0506
Order(MOQ):
100pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 working days for payment

Outline (mm)
8.00mm x 8.00mm
Mounting Type
Through Hole
lllumination
Non-llluminated
IP Rating
No IP Rating

Product Detail

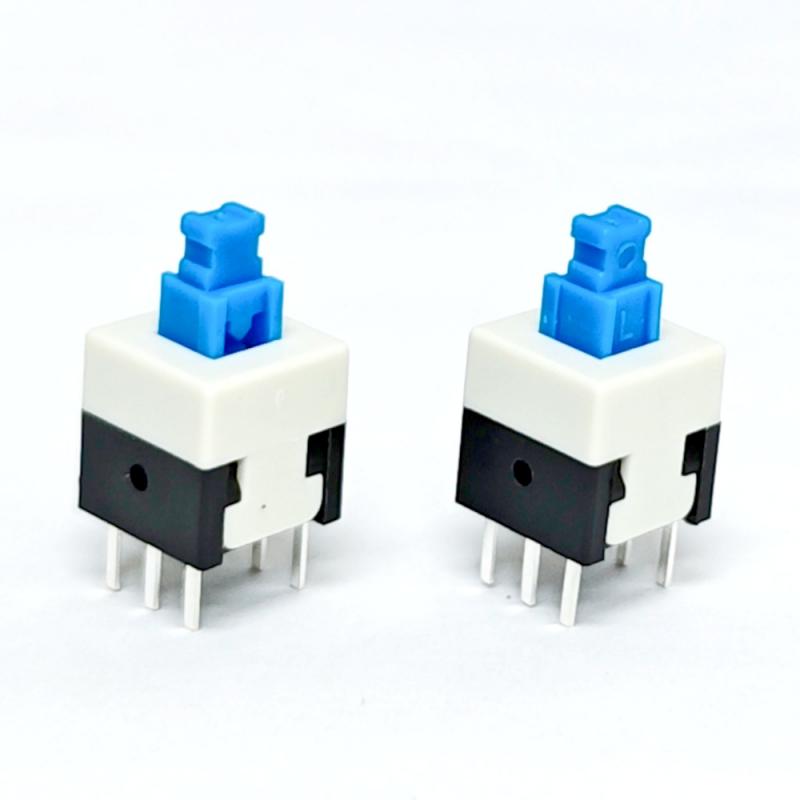

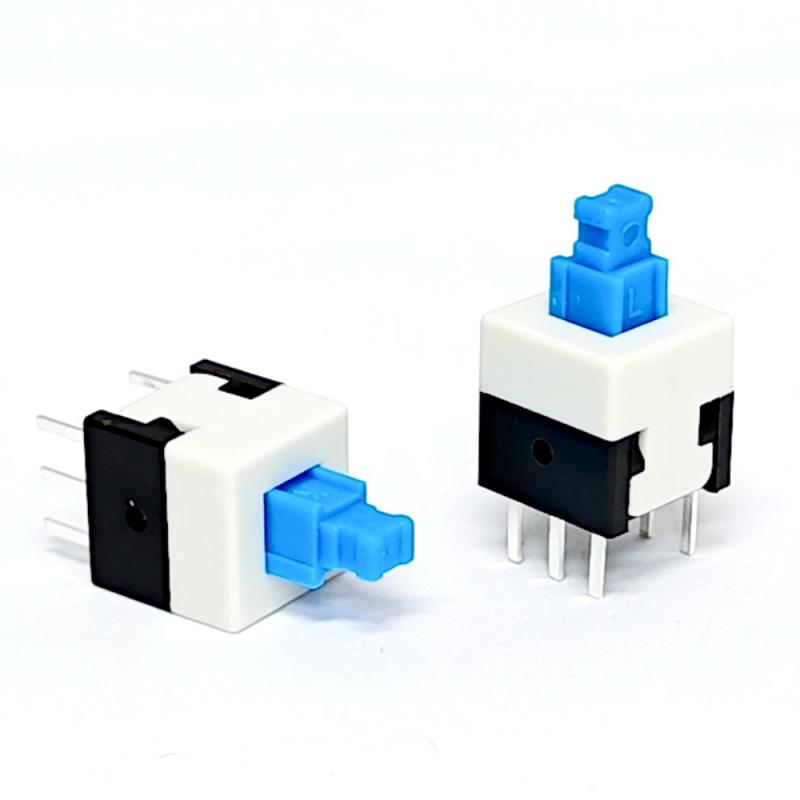

8x8mm Blue Actuator Non Lock Push Button Switch DPDT

Specification

Type: 8X8mm industrial control panel switch

Ratings:DC 30V 0.1A

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Operating force: 180±70gf

Full Travel: 2.5±0.2mm

Operation Life: 5000 cycles

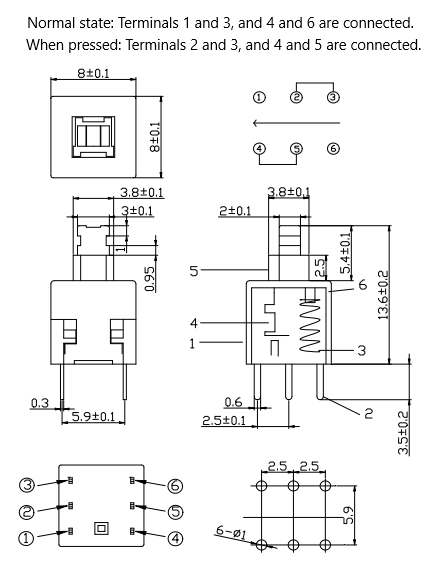

Schematic

8x8mm PCB through hole tocuh switch

Key Feature

1. Dual Operation Modes

Switch between self-locking (press-on/press-off) and momentary (press-to-activate) for versatile application compatibility.

2. Compact 8x8mm Form Factor

Space-saving design ideal for dense PCB layouts and miniaturized devices.

3. 6-Pin Through-Hole PCB Mount

Standard 2.5mm pin spacing for easy integration with prototyping boards and mass production lines.

4. Wide Operating Temperature Range

-30°C to +80°C, suitable for harsh industrial, automotive, and outdoor environments.

5. Rohs & REACH Compliant

Manufactured to international environmental and safety standards.

Customer Benefits

Reduce inventory complexity with a single switch for multiple application needs

Ensure long-term reliability in mission-critical industrial and consumer devices

Accelerate time-to-market with off-the-shelf stock and fast custom order lead times

Lower total cost of ownership with volume pricing and flexible MOQ options

Get dedicated technical support from design prototyping to mass production

Ideal Applications

Related Tags :

8x8mm latching push button switch 6-pin self-locking tact switch 8x8 momentary push button switch PCB mount self-lock switch Mini square pushbutton switch Industrial grade self-locking tactile switch
