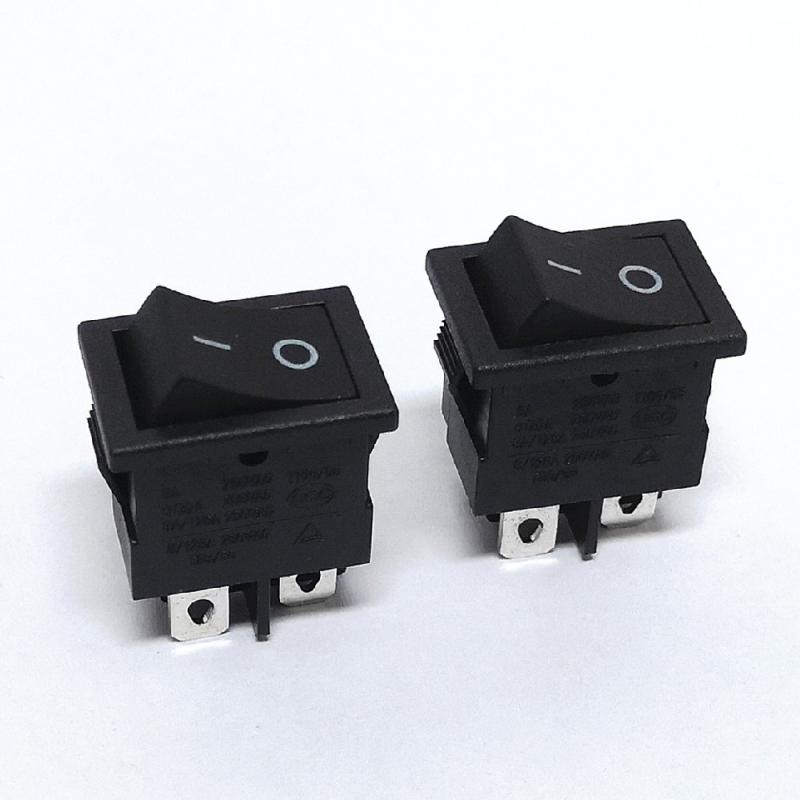

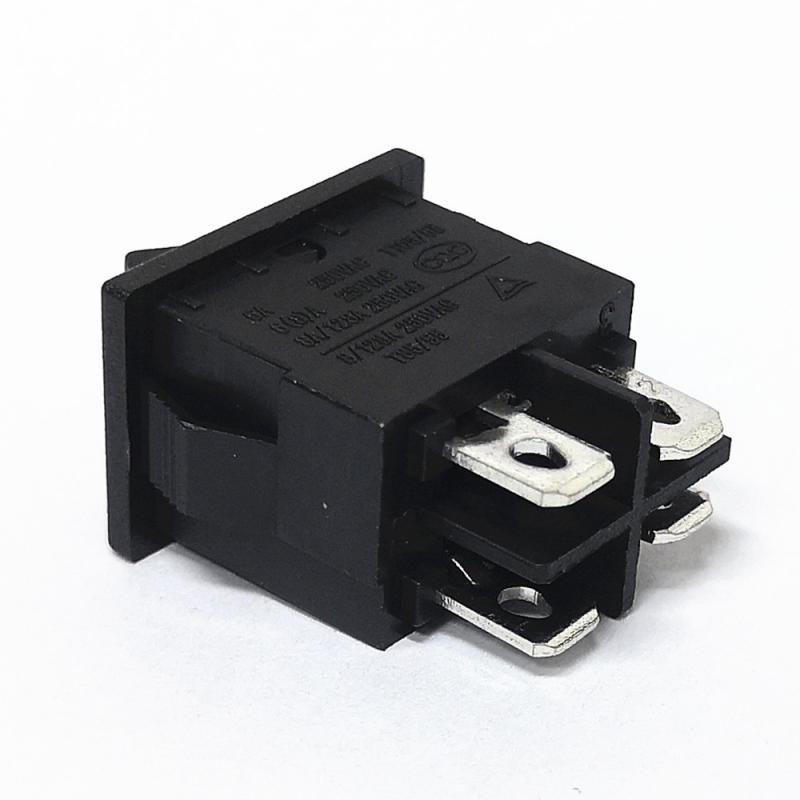

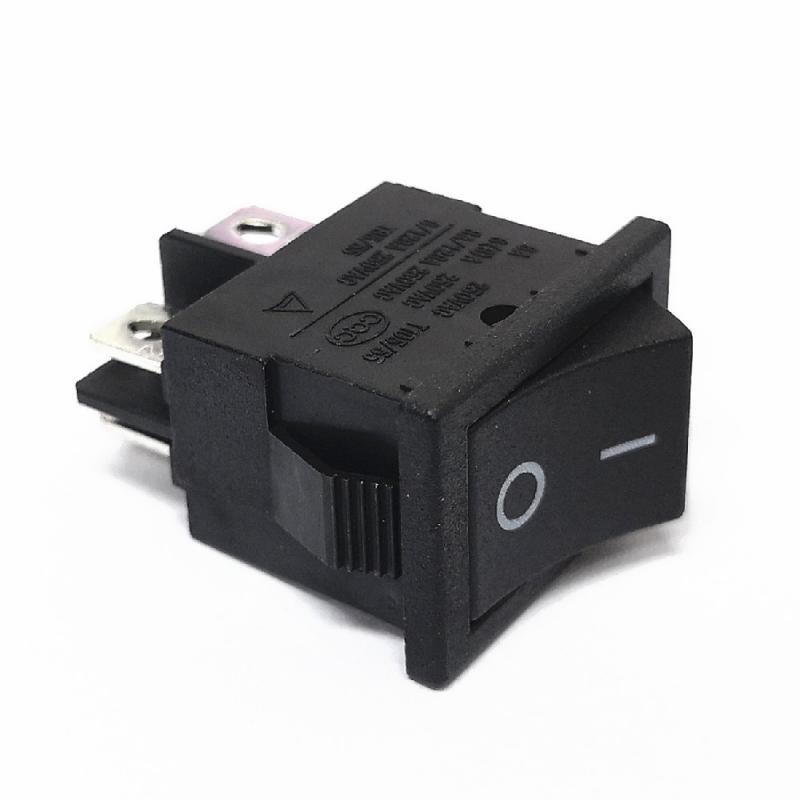

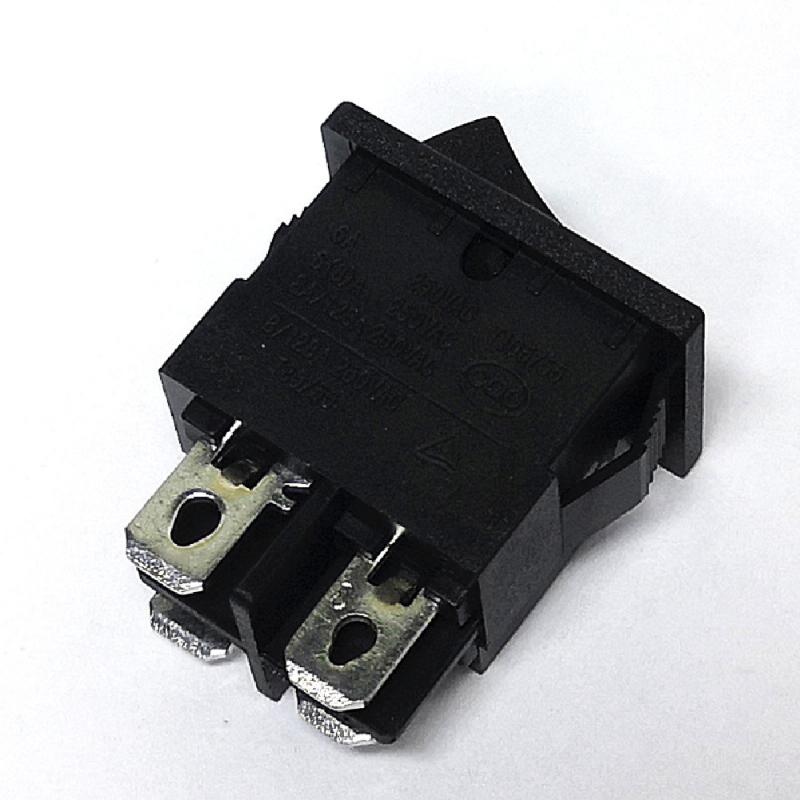

Home Switch Rocker switch 4 pin on off t85 55 rocker switch

4 pin on off t85 55 rocker switch

A rocker switch may have a circle (for "on") on one end and a horizontal dash or line (for "off") on the other to let the user known if the device is on or off. Rocker switches are used in surge protector s, display monitors, computer power supplies, and many other devices and applications.

  • Brand:

    Gangyuan
  • Item NO.:

    RS601D1B-2010011BB
  • Order(MOQ):

    500
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

t105/55 wholesale rocker switch on off factory 4 pins rocker switch


 Specification

DPST Rectangle rocker switch

Max. Current: 6A

Max. Voltage: 250VAC
Mechanical Life: ≥10000 cycles
Contact Resistance: ≤50mΩ(initial)
Insulation Resistance: ≥100MΩ
Electrical life: ≥10000 cycles
Circuit Diagram: 4P ON-OFF
Terminal strength: ≥ 80N
Body Materil: NYLON 66 94V-0~2

Size: 21X15mm

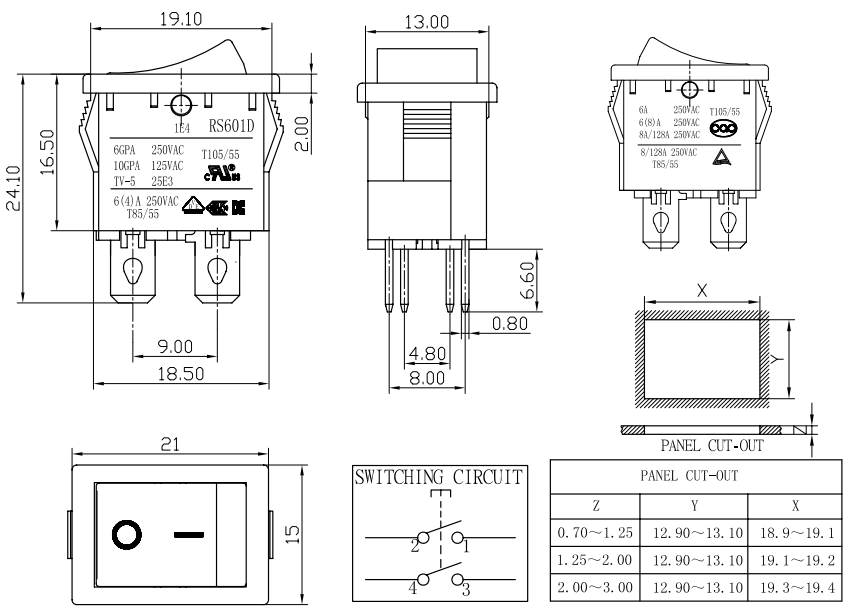

 Drawing



 How do I know if my rocker switch is on or off ?


The power switch is a rocker switch and it has two symbols on the face: “O” and “—“.

They are the International symbols for power “On” and power “Off”. “O” means the power is OFF and “–“means the power is ON.


 Application



One-stop laboratory equipment
The company has dedicated personnel to continuously test the products in all directions. Always pay attention to product reliability.
( Mechanical and electrical test equipment: 19 Sets )
( Environmental testing equipment: 8 Sets )

Possess a 100,000-level workshop
Implement strict environmental control. (dust-proof)
