Rocker switches are often used as power switches for electronic equipment. Their contacts are divided into single-pole single-throw and double-pole double-throw. Some switches also with led.
Brand:
GangyuanItem NO.:
KCDRS601C1-101N011TROrder(MOQ):
1000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
Black and RedShipping Port:
Ningbo/ShenzhenLead Time：

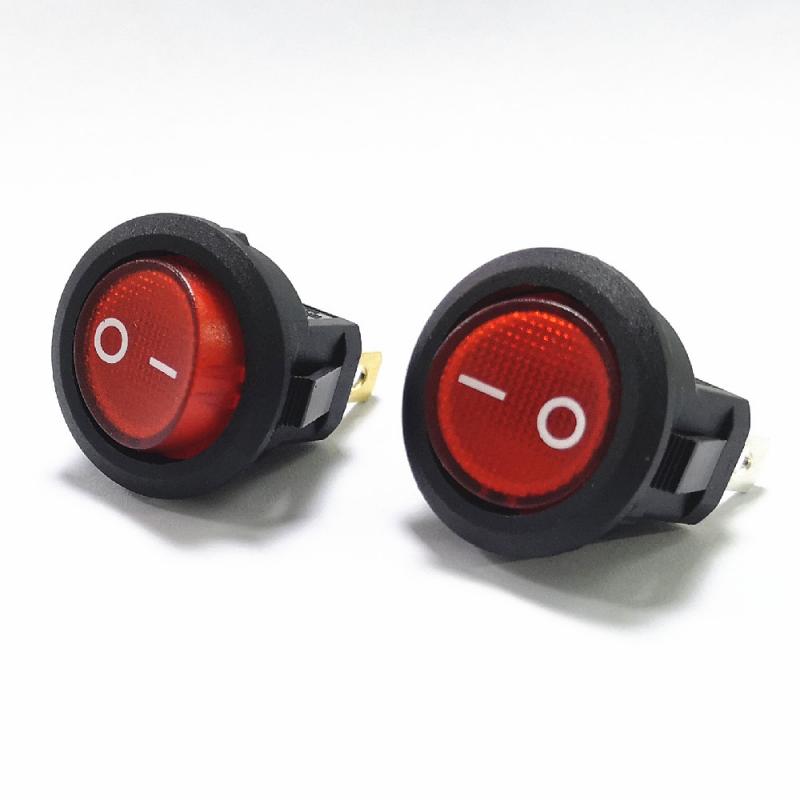

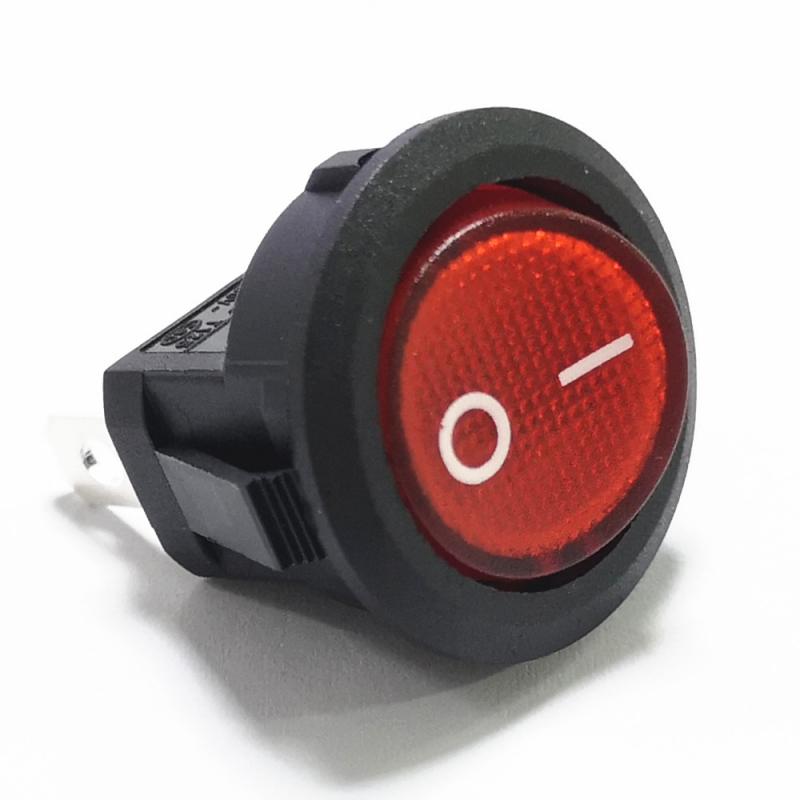

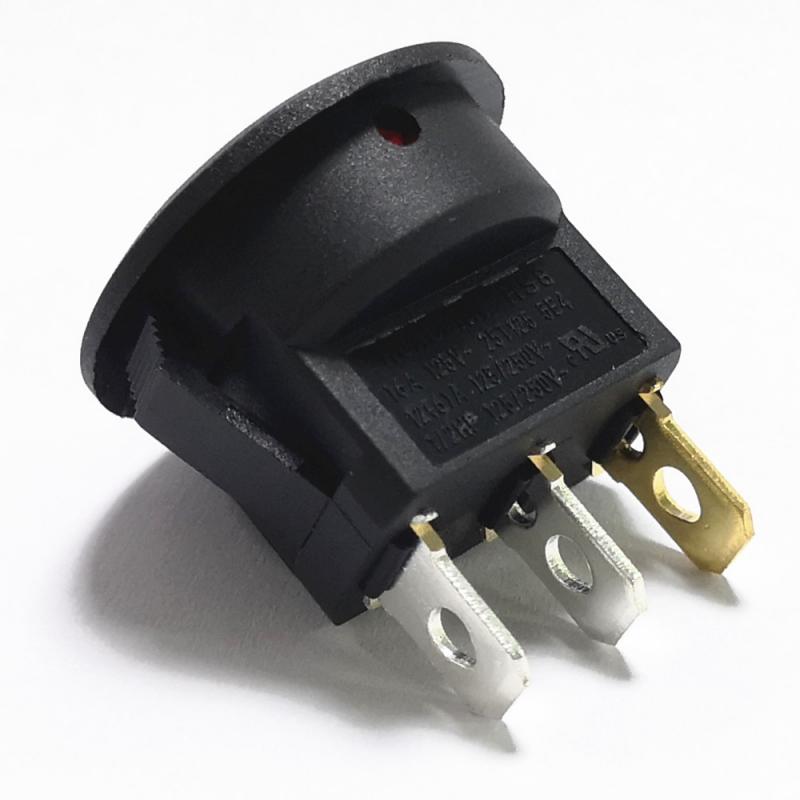

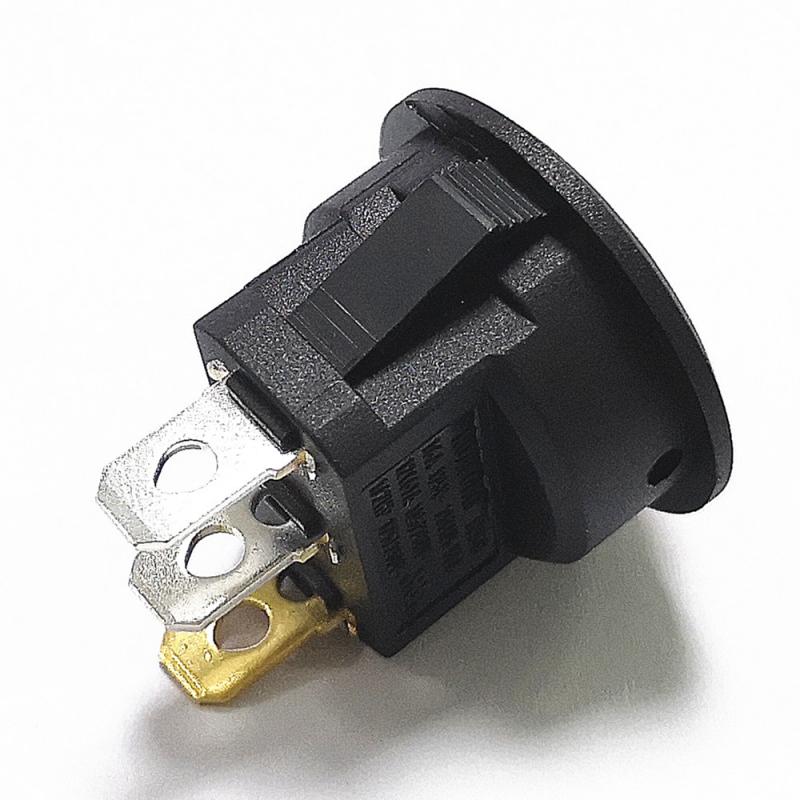

7-14 Working Days For PaymentSmall with hole pin round push button rocker switch
Product description
Max. Current: 10A
Max. Voltage: 250VAC
Contact Resistance: ≤50mΩ(initial)
Insulation Resistance: ≥100MΩElectrical life: ≥10000 cycles
Mechanical Life: 10000 cycles, ≥10000 cycles
Circuit Diagram: 3P ON-OFFTerminal strength: ≥ 80N
Body Materil: NYLON 66 94V-0~2
Drawing
Application of rocker switch
Rocker switches are used in water dispensers, treadmills, computer speakers, battery cars, motorcycles, ion televisions, coffee makers, power strips, massage machines, etc., and are mainly used for household appliances.
Function of rocker switch
The rocker switch has the same function as all other switches, and its function is to cut off and switch on the current. On the main circuit, it plays an important role in the process of input from the AC grid and output from the DC, including inversion, rectification and filtering.
The role of the rocker switch on the entire control circuit:
① On the one hand, provides the data for the test circuit, after the protection circuit is identified, the control circuit is provided to carry out various protection measures for the whole machine.
② On the other hand, samples are taken from the output terminal, compared with the set circuit standard, and then the inverter is controlled to change its frequency or pulse width to achieve stable output.
The rocker switch controls the current and thus has a protective effect.
FAQ
1. Q: Are you rocker switch manufacture/ factory? Location?
A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
