Round rocker switch wiring diagram with led

Round 3 pin welding wire safety rocker switch

T105/55 rocker switch

  • Brand:

    Gangyuan
  • Item NO.:

    RS601C1-101N171BB(L1
  • Order(MOQ):

    1
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    20 working days for payment
  • Product Detail

Round rocker switch wiring diagram with led

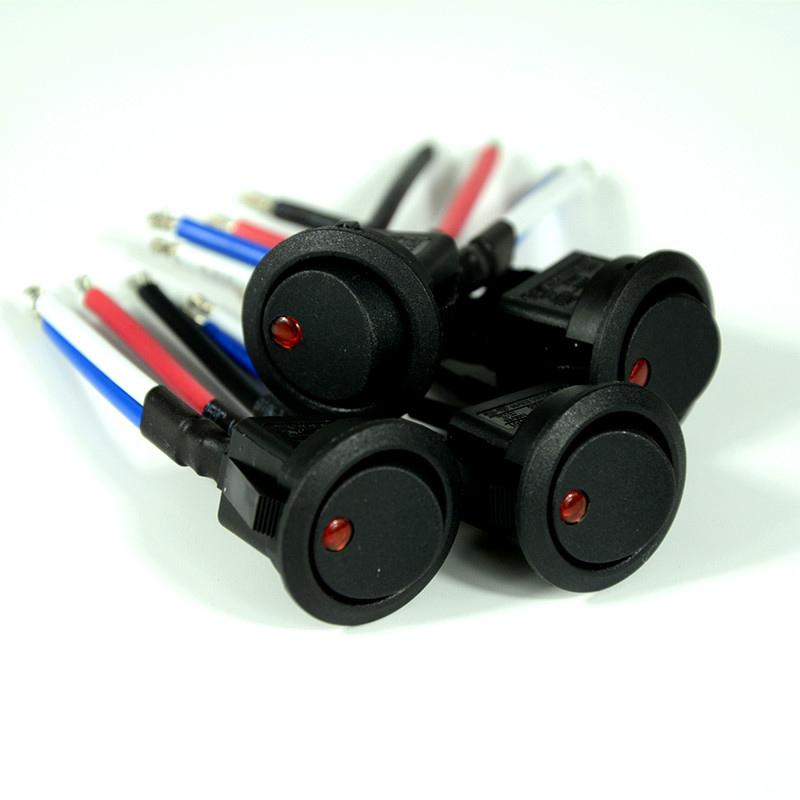

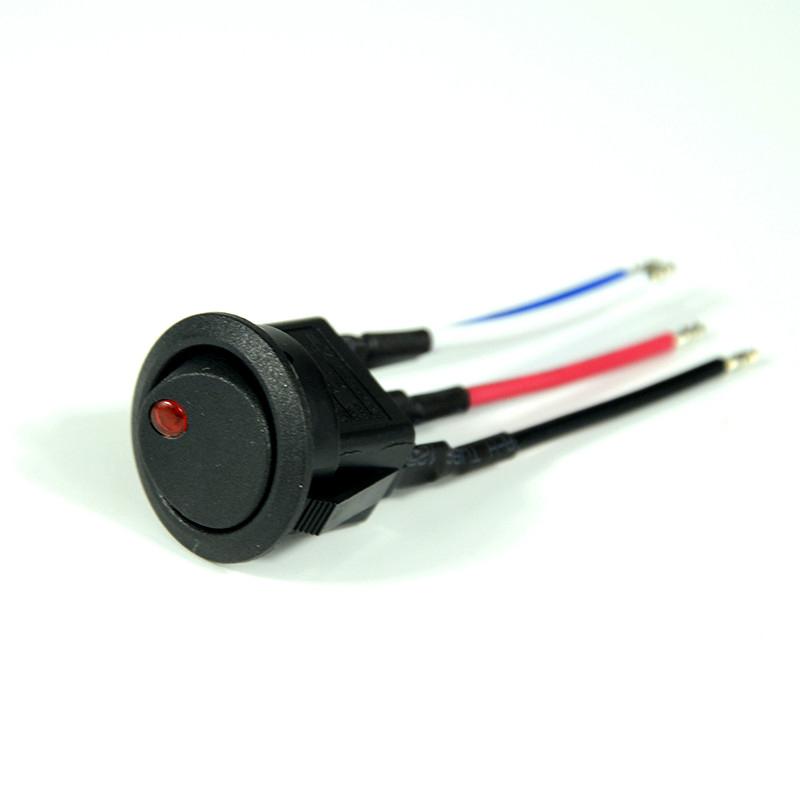

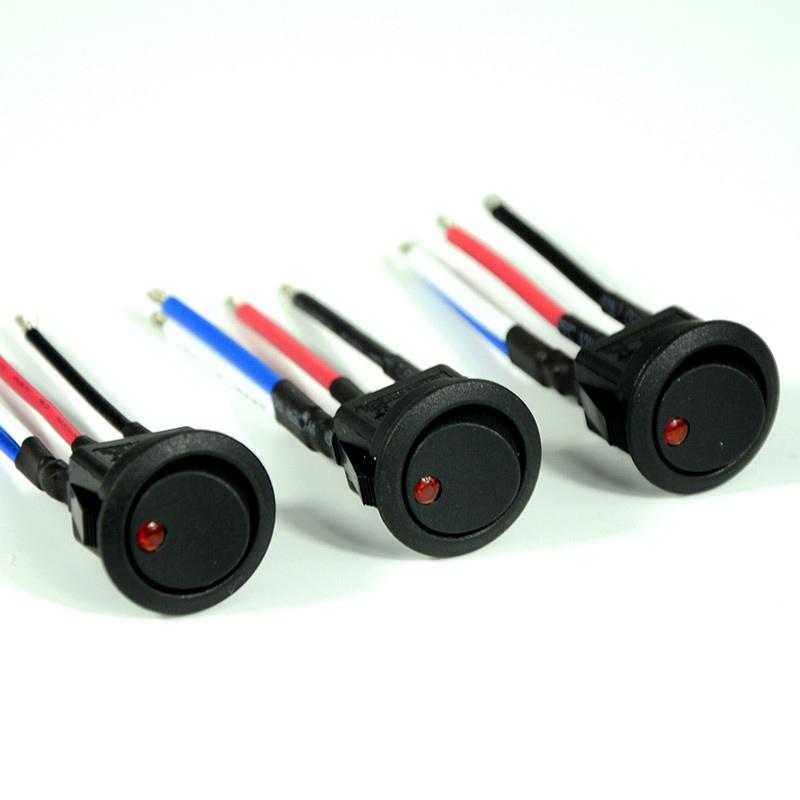

Soldering 3 red wires with white connectors electric Rocker Switches


  Basic Information


Rocker switch code RS601C1-101N171BB(L16)
Rating 6A 250VAC T105/55
Insulation resistance ≥100MΩ
Contact resistance 50mΩ

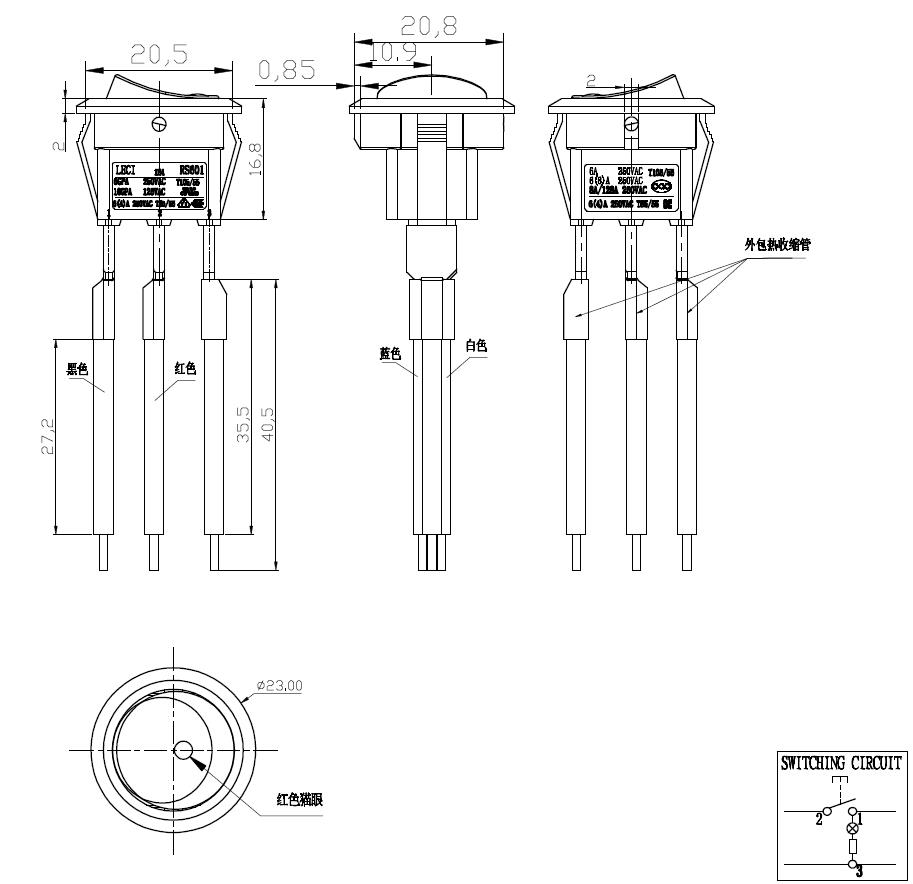

Circuit Diagram 3P ON-ON
Life expectancy 10000 cycles
Terminal Strength ≥80N
Body Material NYLON 66 94
Packing


100pcs/bag



  Dimension


  Product features


1. Type: Rocker switch wiring

2. Line color: According customer requirement

3. Waterproof level: No

4. Pin: 3 pin

5. Led color option: red, blue,yellow,green

  Product packing

100pcs/poly bag and then in carton box

  Our advantage


1. The factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of categories. More than 2000 models.

3. Good quality. Using raw materials imported from Japan and South Korea.

    More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.


 Application


Rocker switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

 FAQ


1. Q: Are you manufacture/ factory? Location?

    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.


Leave A Message

If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.

Related Products
Red Light Rocker Switch
Round Rocker Switch with Led Light

RS601C1 round rocker Switch with LED or Neon light, terminal tail welding wire processing could be provided if required.

Rocker Switch
Narrow Shape Rocker Switch 21x9.7mm

This series come in narrowest shape with excellent electrical performance, printing on stem could be made as customers request.

Rocker Switch
6A ON OFF ON Rocker Switch

RS601B Series rocker switch, long or short terminal for options, printing could be made at cusotmer request.

Oval rocker switch
Led Light Oval Rocker Switch

Oval rocker switch, light colors with red, blue, green, yellow. Great components for home appliance, industry control, computers etc.

Double Hole Rocker Switch
DPDT Rocker Switch 21x24mm

This series rocker switches posses different rocker colors, such as red, black, white, green etc. Base colors could be black or white. simple operation for DIY.

Rocker Switch
3A 2pin automotive Rocker Switch wiring

Hot Sell Wiring a rocker switch diagram 3A 2pin automotive Rocker Switch.

Rocker Switch
3pin on and off carling marine rocker switches wired and lighted

Rocker switches on and off with lighted, 3pin wiring smd.

Mini Rocker Switch
Illuminated Red LED On Off 4 Pin Mini Rocker Switch

PS102: 21*15mm, 6A 125VAC/ 10A 250VAC, CE、CQC、ROHS、VDE approval rocker switch.
