Home Socket 3 pin female socket

3 pin female socket

VDE CCC AC250V 2.5A 3 pin female socket

  • Brand:

    Gangyuan
  • Item NO.:

    DB-6-3S1S1
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

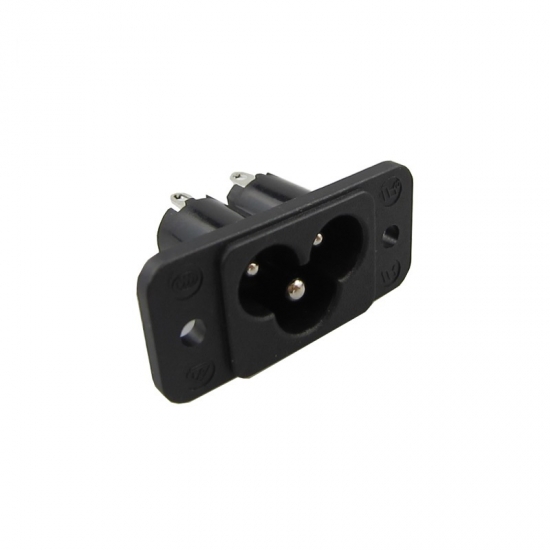

VDE CCC AC250V 2.5A 3 pin female socket


Female connect for household appliances, conforming to UL\ CCC certification, working voltage AC250V, current 2.5a,Standard three line circuit, Grounding protection against leakage.It is mainly used in laptop dc power jack, dc power jack connector plug pin socket and dc jack SONY vaio, etc


Basic Information

Type AC Socket

P/N

DB-6-3S1S1-LZ-(3.3)
Product size 18.3X39X16mm
Rated current AC250V/2.5A/5A
Product certification UL.VDE.CCC
Fire rating 94V2/94V0


Dimension


ac power socket.jpg

Products photos:

 dc power jack connector plug pin socket

laptop dc power jack.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
