Home Switch Micro switch G15 Series 10A micro switch push button
25t125 5e4 micro switch 25t125 5e4 micro switch 25t125 5e4 micro switch 25t125 5e4 micro switch 25t125 5e4 micro switch

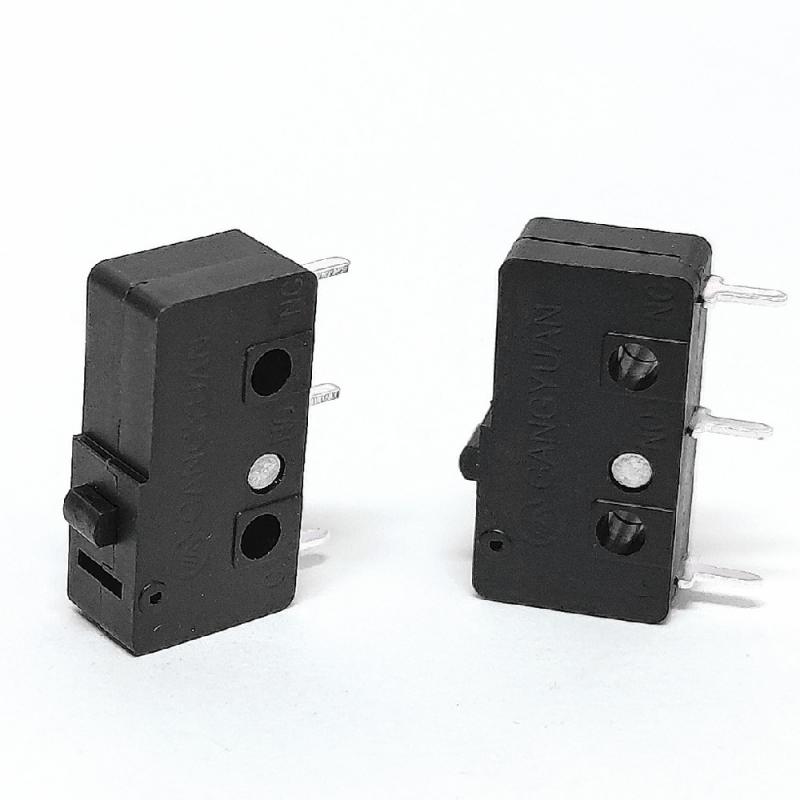

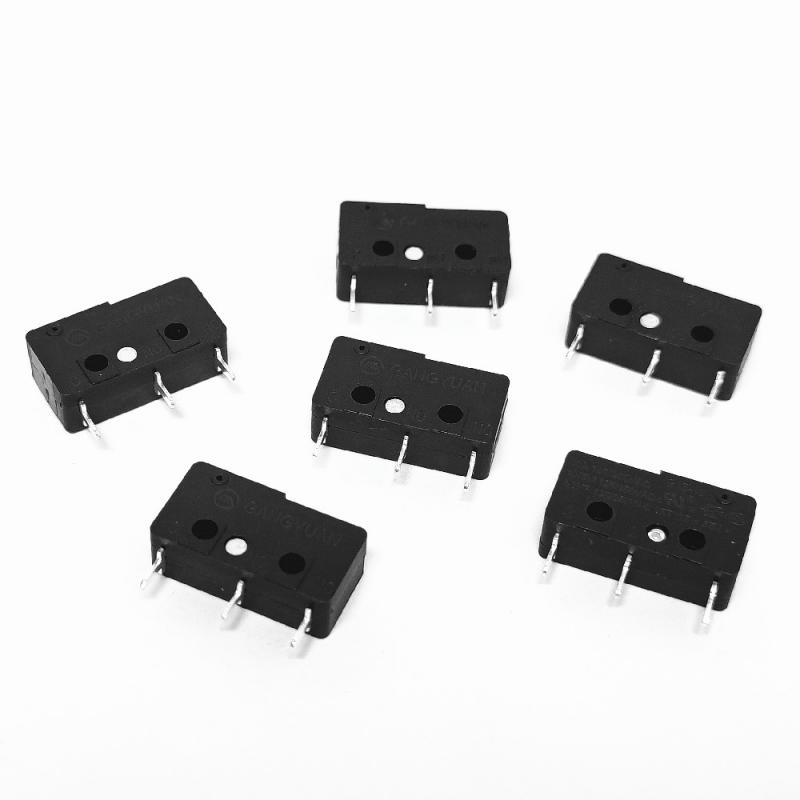

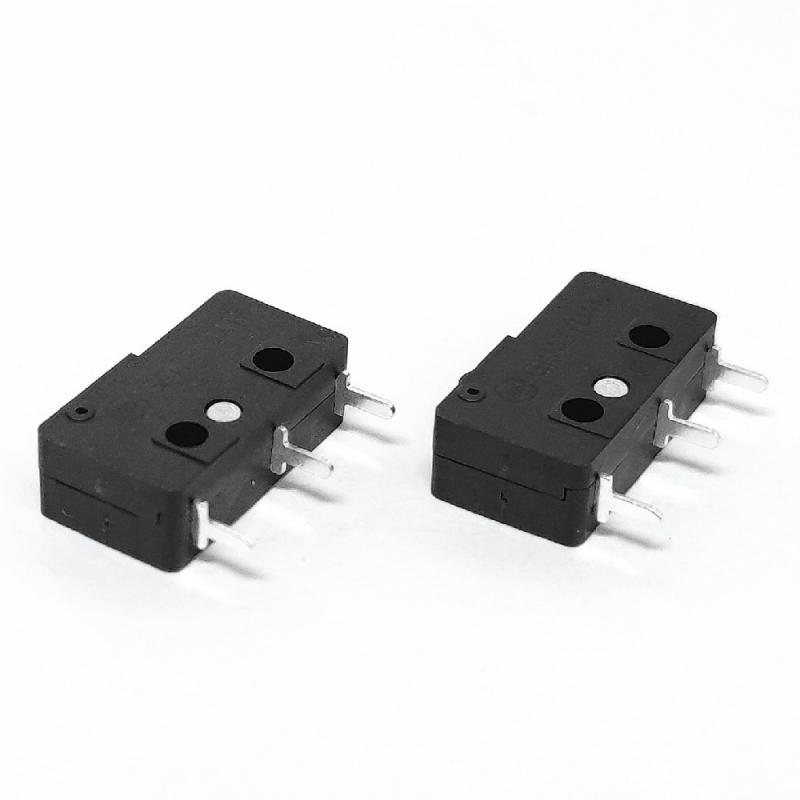

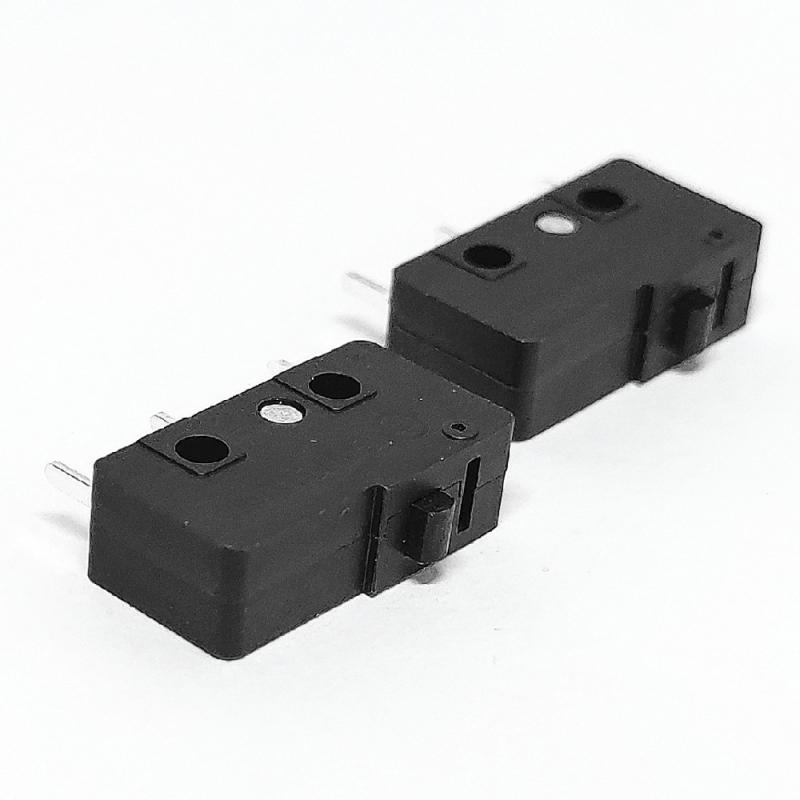

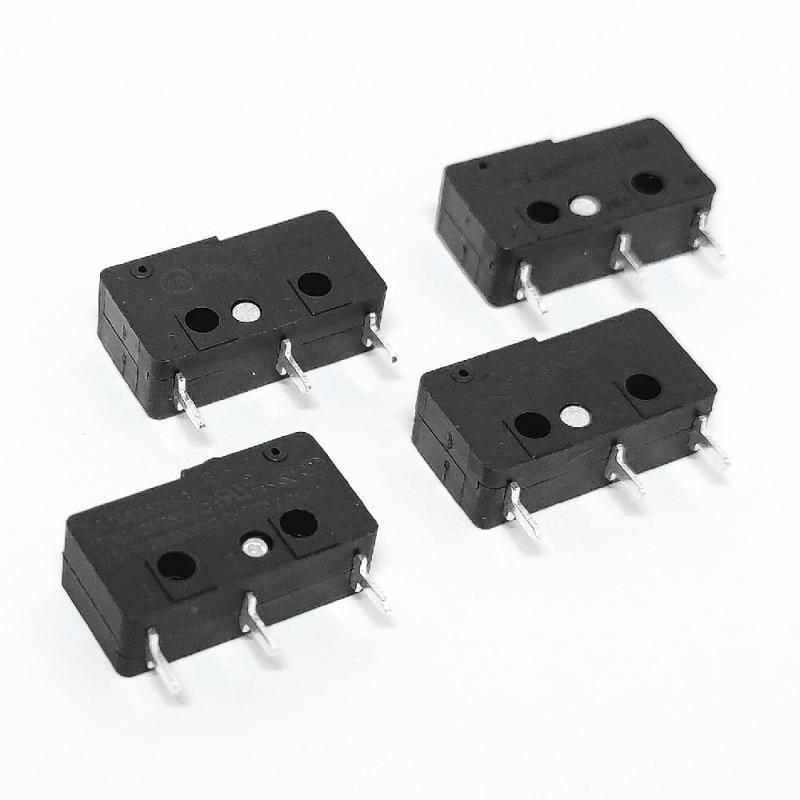

10A micro switch push button

Electronic components 10a 125/250V AC micro switch

  • Brand:

    Gangyuan

  • Item NO.:

    G15-10PM-250-82

  • Order(MOQ):

    500

  • Payment:

    100% T/T Before Production

  • Product Origin:

    Zhejiang, China (Mainland)

  • Color:

    black

  • Shipping Port:

    Ningbo/Shenzhen

  • Lead Time：

    7-14 working days for payment
Contact Us

  • Product Detail

pcb terminal push button switch sensitive mini micro switch for home appliances
3 pin SPDT micro switch

 Micro switch datasheet

Type: 20*10mm micro switch
Operating Temperature Range: -25℃～+125℃
Operating Relative Humidity: ≤85%
Voltage Rating: 125/250V AC
Current Rating: 10AContact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Operating Force:250±80gf
Life Time(mating cycles): 10000 Cycles

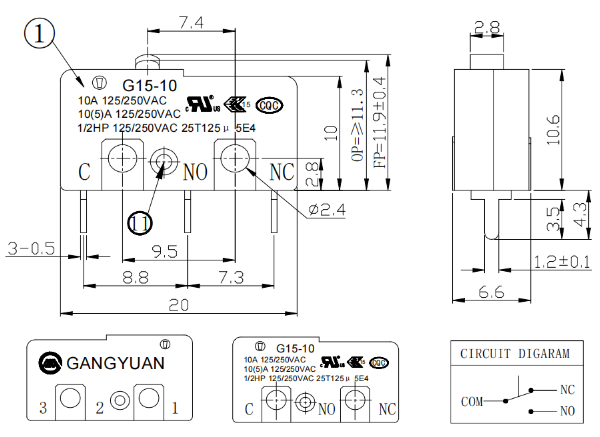

 Micro switch drawing


 Is a micro switch a sensor ?

A micro switch, also known as miniature snap action switch, is a type of momentary contact switch used widely in automotive,

industrial and medical instruments as sensor.


 Micro switch types

G15 micro switch manufacturers



Pcb terminal micro switch      Solder pin micro switch with        Right angle micro switch          SPDT micro switch with

                                                      short straight handle                                                                         long straight handle



      Spst micro switch                     Mini micro switch            micro switch with roller lever          micro switch with curve knob
