Home Switch Tactile switch 68 series tact switch wholesale tact switch with led

wholesale tact switch with led

This right angle tact switch features through hole terminations and LED color offerings in blue, red green and yellow. It features high reliability switches with sharp tactile response and long travel.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN6832
  • Order(MOQ):

    500
  • Payment:

    100% T/T Before Production
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Outline (mm)

    7.40mm x 7.40mm
  • Mounting Type

    Right Angle
  • lllumination

    llluminated
  • IP Rating

    IP4X
  • Product Detail

right angle push button with cap LED-illuminated tact switch factory


 Product Attributes


Tact switch type: LED tact switches, Tactile Button Switch, illuminated tact switch, right angle switch

Rating: DC12V 50mA

Contact resistance: 100mΩ Max

Insulation resistance:100MΩ MIN

Electrical life: 100,000 cycles

Operating force: 160gf

LED: Red, Blue, Yellow and so on

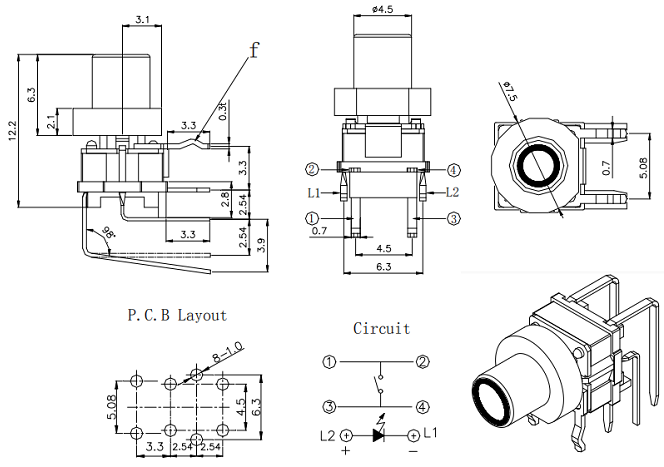

 Drawing


 Right Angle type switch features and benefits:


Reduced space usage on board
Excellent ergonomics
High bright leds
Customized cap options
Long operating life

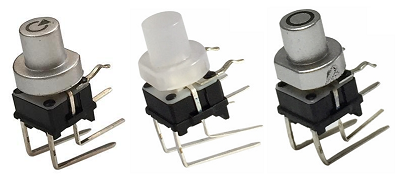

 Cap choose

LED powe reset tactile swicth
