tact switch led right angle

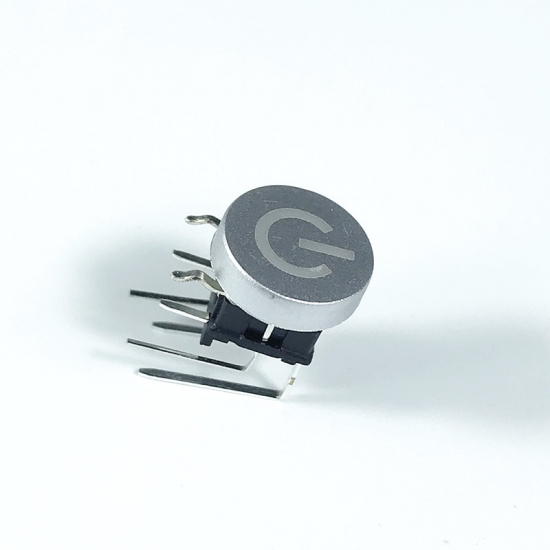

8 pins illuminated led big right angle mini tact switch with cap

  • Brand:

    Gangyuan
  • Item No.:

    KAN6811-B
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    white
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    10pcs
  • Lead Time:

    14 working days for payment
Product Details

8 pins illuminated led big right angle mini tact switch with cap

Basic Information

Type LED Tact Switch
Contact Rating DC 12V  50mA
Contact  Resistance ≤100mΩ
Insulation Resistance ≥100MΩ
Operating Force 250±100g
Operation life 200,000cycles
Height 8.2mm
Travel 0.25±0.1mm

Dimension

tactile push button switch momentary tact with led.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
