Home Switch Tactile switch 68 series tact switch Illuminated smd tactile tact switch
6.8*6.8mm 4pin tact switch 6.8*6.8mm 4pin tact switch 6.8*6.8mm 4pin tact switch 6.8*6.8mm 4pin tact switch

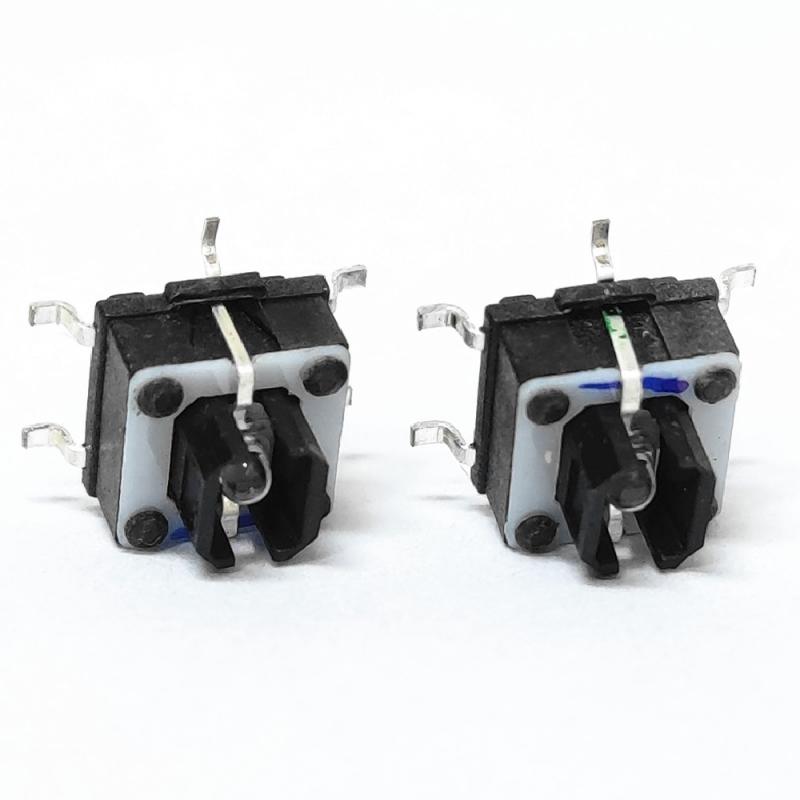

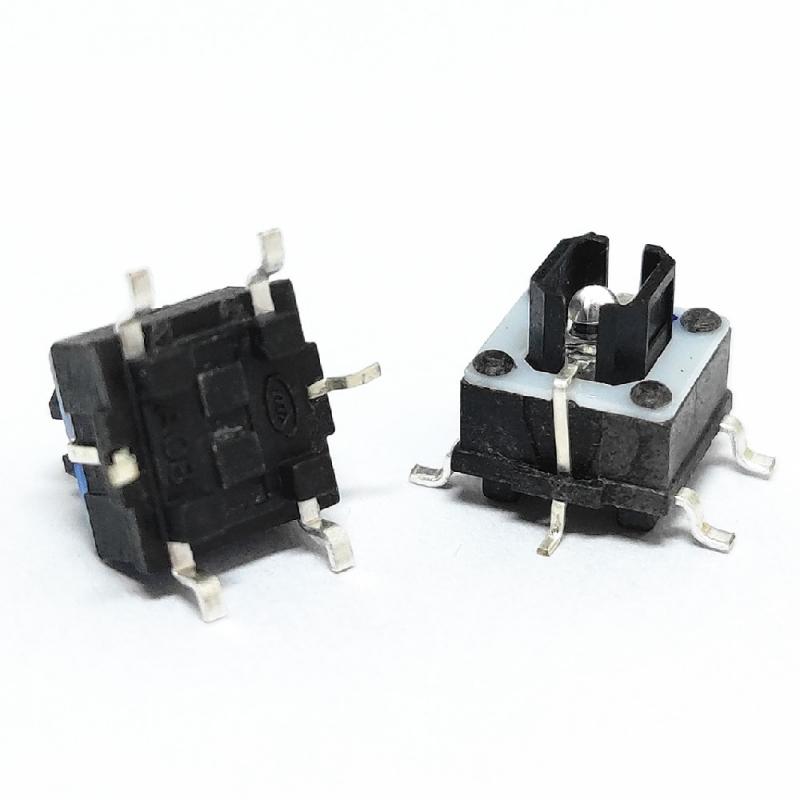

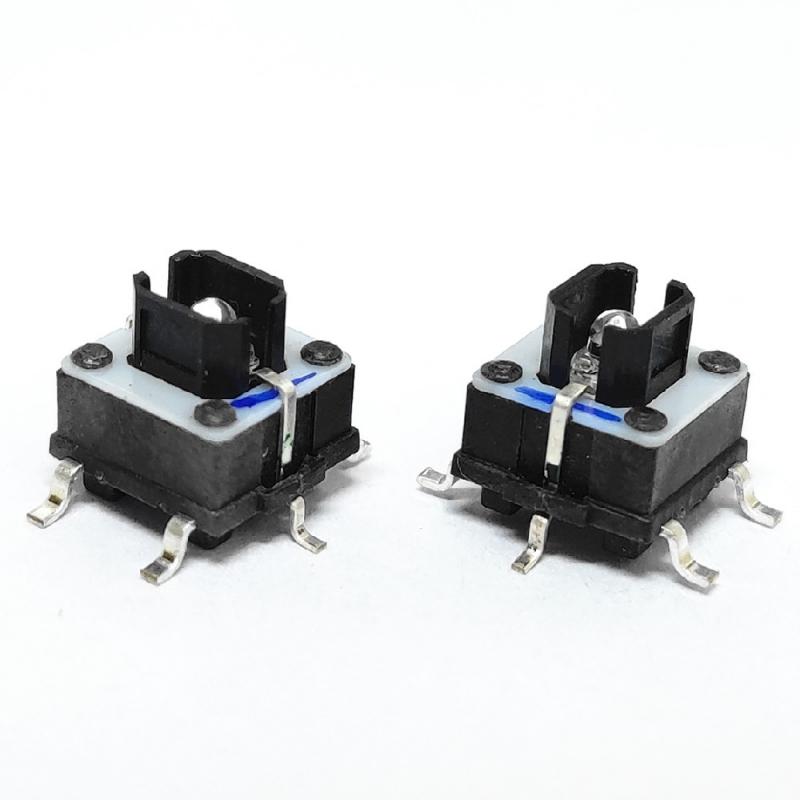

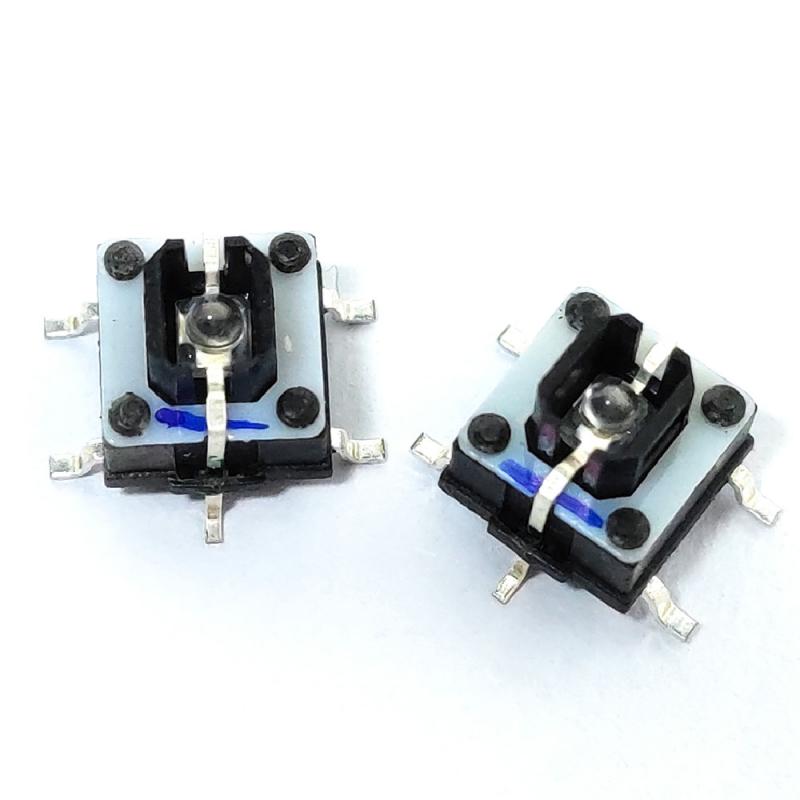

Illuminated smd tactile tact switch

There are various led color for customer choice.

  • Brand:

    Gangyuan

  • Item NO.:

    KAN6841-0581C010-082

  • Order(MOQ):

    2400

  • Payment:

    100% T/T Before Production

  • Product Origin:

    Zhejiang, China (Mainland)

  • Color:

    Black

  • Shipping Port:

    Ningbo/Shenzhen

  • Lead Time：

    7-14 Working Days For Payment
Contact Us

  • Product Detail

Green led 5.8mm Height momentary tact switch

China smd tact switch factory


Parameter


Led tact switch


Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Operating Force: 260±50 gf

Full Travel: 0.25±0.1mm

Return Force: 20gf Min

Stem Strength: 20N min.

Operating Temperature Range: -30℃～80℃

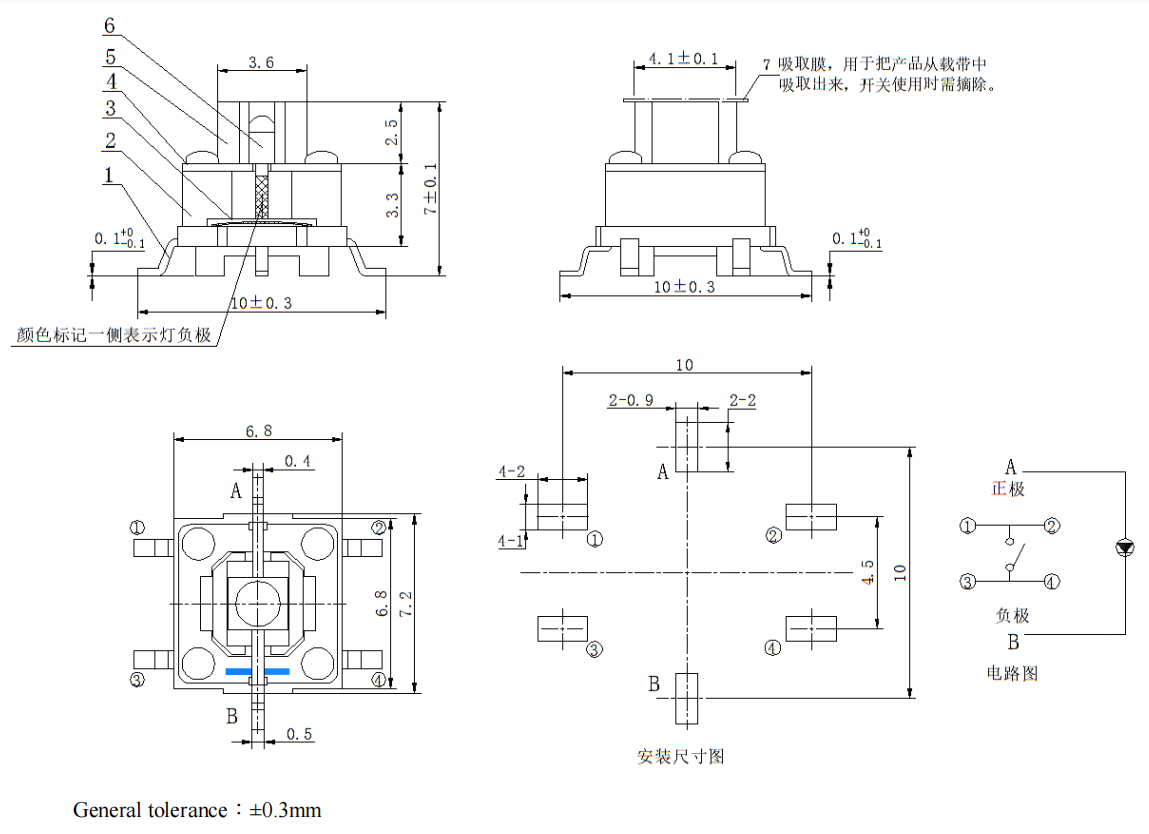

Drawing




Features


●LED high light intensity,

Emitted Color: Super Green.

●Low power consumption

●High reliability

●Long life

●Lens Appearance: Water Color.

●Low cost plastic package

●This product doesn’t contain restriction


Application


1. Automotive: Dashboards, stop lamps, turn signals.
2. Backlighting: LCD, Keypads advertising.
3. Status indicators: Consumer & industrial electronics.

4. General use.


packing


800 pcs/ Reel; 15 Boxes/ 1 Carton/ 12000 pcs
