Vertical SPDT Slide Switch

The handle height can be customized according to requirement from Customer.

  • Brand:

    Gangyuan
  • Item NO.:

    SS12F46-EG5-20
  • Order(MOQ):

    1000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Orange and silver
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Outline (mm)

    12.10mm x 5.80mm
  • Mounting Type

    Through Hole
  • lllumination

    Non-llluminated
  • IP Rating

    No IP Rating
  • Product Detail

Orange 5 mm Raised Slide Actuator PCB Mount Slide Switch

Non-Shorting Slide Switch for Toy


Parameters


Contact Resistance: 100mΩ Max

Insulation Resistance: ≥100MΩ

Operating Force: 180±80gf

Operation life: 10,000 cycles

Operating Temperature Range: -20℃~70℃

Storage Temperature Range: -40℃~90℃

Packing: Bag Packing

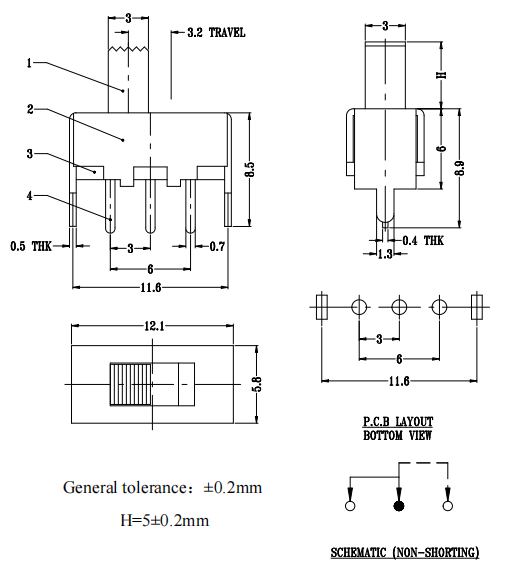

Drawing



The four most common types of slide switches in circuit design are:


  • Single Pole Single Throw (SPST)
  • Single Pole Double Throw (SPDT)
  • Double Pole Single Throw (DPST)
  • Double Pole Double Throw (DPDT)


What is SPDT slide switch?


The SPDT slide switch is a Single Pole Double Throw (SPDT) Slide switch with 3 terminals and a vertical handle with 2 Positions and ON-ON contact type; Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights, etc.
