Home Switch Push button switch vertical push button switch

vertical push button switch

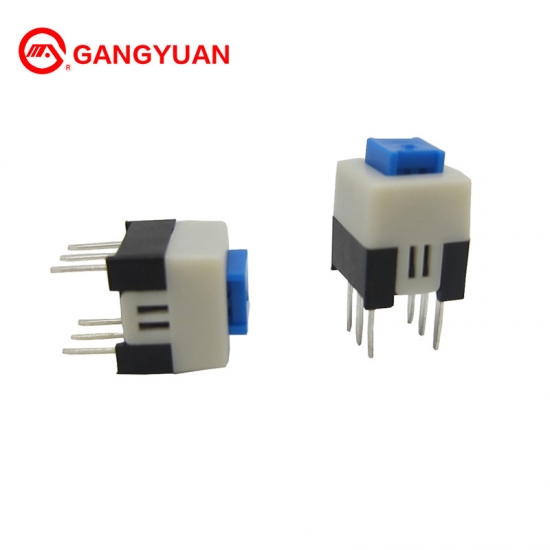

7X7mm 6pin self-locking straight vertical  push button switch 0.1A 30V

  • Brand:

    Gangyuan
  • Item NO.:

    PB22E07431
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    blue and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 working days for payment
  • Product Detail

7X7mm 6pin self-locking straight vertical  push button switch 0.1A 30V

Basic Information

Product name Self-locking switch
Model Number

PB22E07431

Rating

30V DC, 0.1A

Contact Resistance ≤100mΩ
Insulation Resistan ≥100MΩ
Heat resistance 80±2℃,72h
Mositure resistance 72h,40±2℃
Operating temperature -5~35
Operating force 10,000 cycles

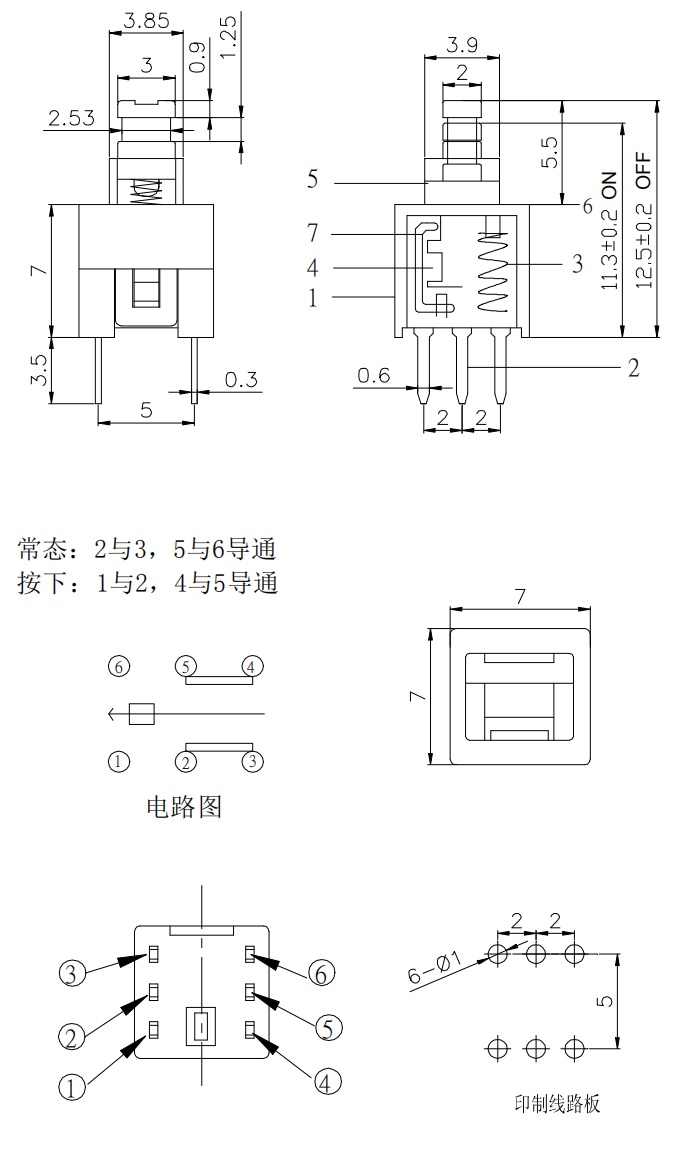

Dimension

7X7mm push button switch.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
