TactilePush Button Self Locking 6 Pin Switch

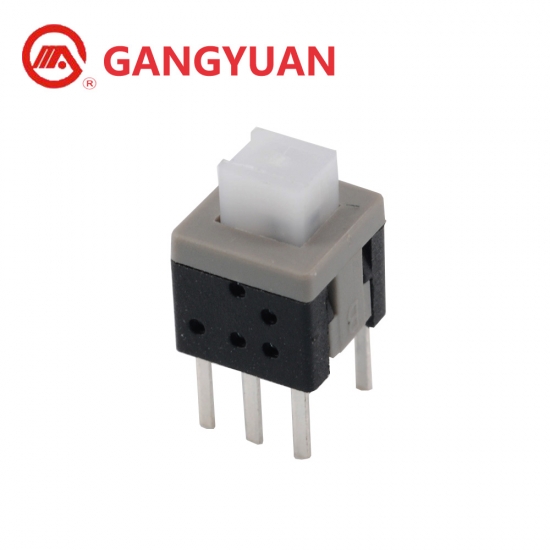

5.8x5.8 mm PCB Tactile Push Button Self Locking 6 Pin Switch DIP

  • Brand:

    Gangyuan
  • Item NO.:

    PB22E06
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

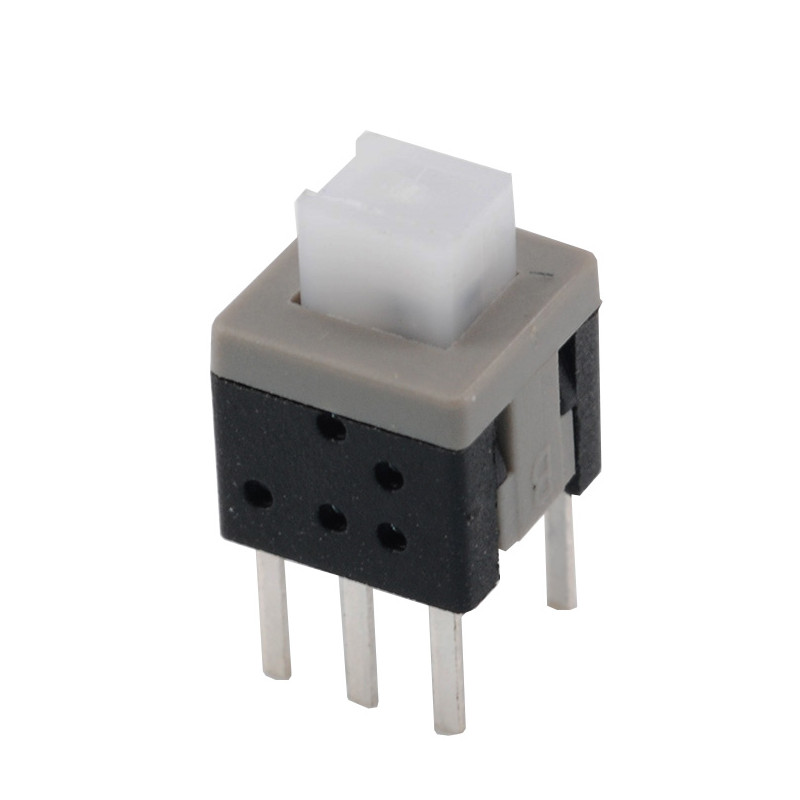

5.8x5.8 mm PCB Tactile Push Button Self Locking 6 Pin Switch DIP


6 pin push button switch connection can be customized for a variety of button cap types, with 2.0± 0.5n operating forces and 10,000 cycles mechanical life.


Basic Information

push button switch 60v.jpg
Life cycles 10,000cycles
Rating DC30V 0.1A
dimension 5.8*5.8mm
full Travel 2.0±0.2mm   1.2±0.2mm
Operating force 2.0±0.5N
Contact resistance 100mΩ.max
Insulation resistance 100M Ω
Resistance to low and  temperature -20±2℃  72h and 80±2℃   72h

Dimension

momentary push button switch.jpg


Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
