SMD Mini Slide Switch

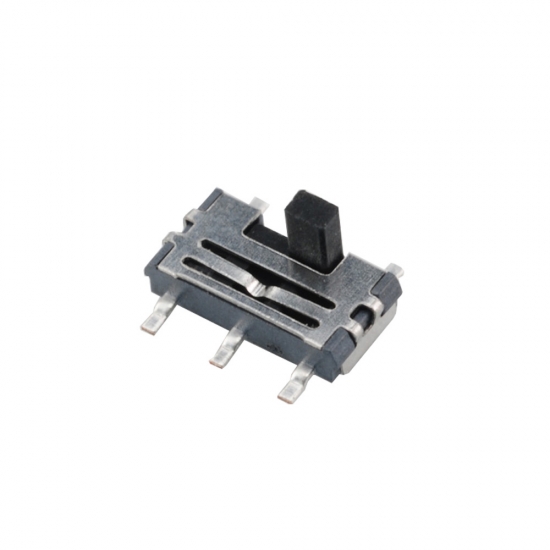

DPDT Type SMD Mini Slide Switch DC 6V 0.3A

  • Brand:

    Gangyuan
  • Item No.:

    MSK-01P
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    silver
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

DPDT Type SMD Mini Slide Switch DC 6V 0.3A



P/N


MSK-01P
Dimension
7.1mmX3.5mm
Operating force
180gf
Switch Function
DPDT
Rating
DC 6V 300mA
Operating force
180gf

Life cycles
10,000cycles

switch drawing


PCB mounting holes size
Ciucuit daigram
