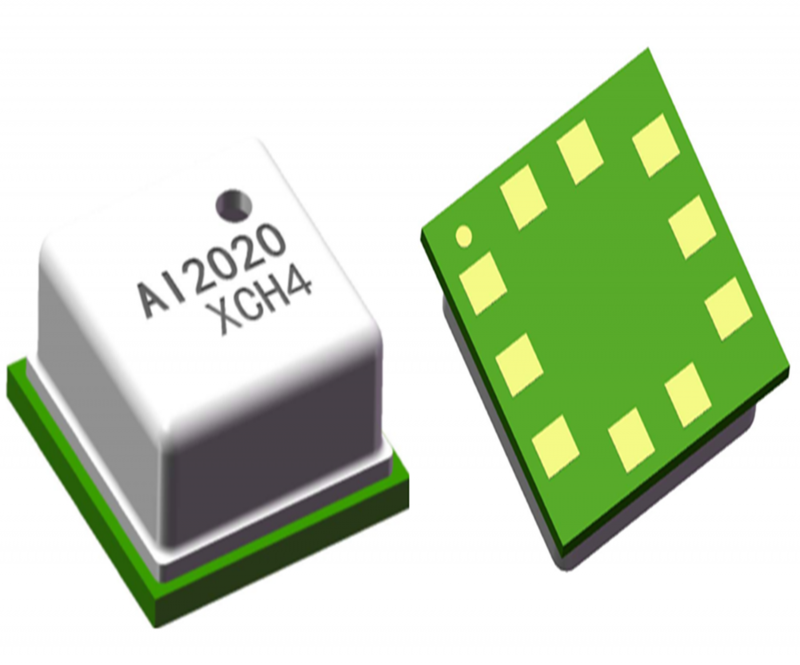

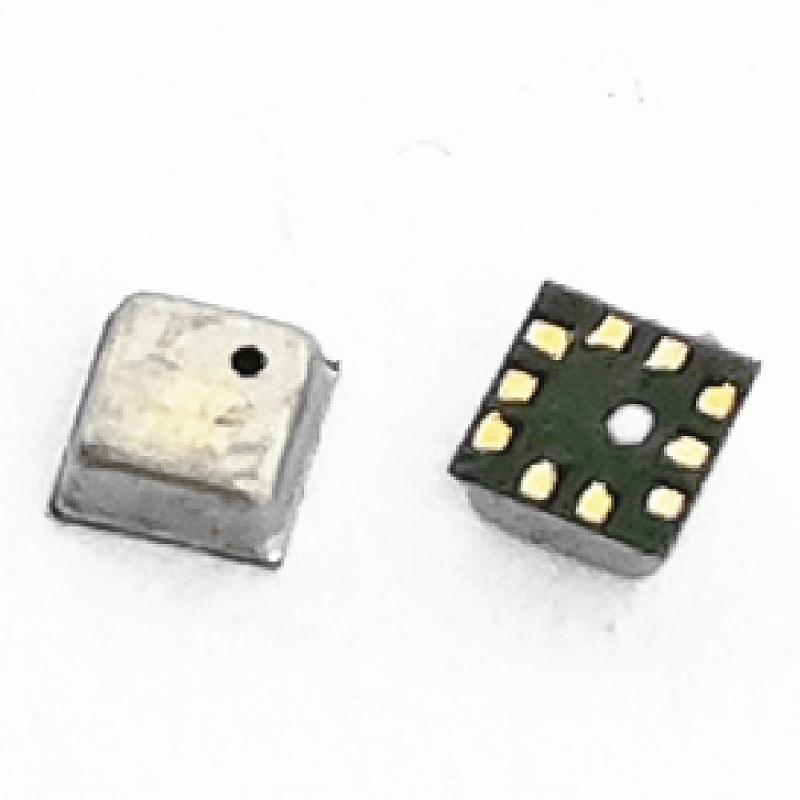

AIP2020S/AIP2520S are high-precision absolute pressure sensors and high-precision temperature sensors
Brand:
GangyuanItem NO.:
AIP2020S-1ANROrder(MOQ):
500Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
GreyShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentHigh precision absolute pressure sensor
Specification
Size: 2.0 x 2.0 x 0.75mm
Pressure Range: 300~1200hPa
Absolute Accuracy: ±50 Pa
Relative accuracy: ± 2.5 Pa typ. (equ to ± 0.21m)
Long Term Drift 12 months: 100 Pa
Types of sensor
Environmental sensors: gas, humidity, and temperature sensors
Pressure sensor: high-precision barometer (altimeter); liquid pressure sensor
Flow sensor: wind speed, sensor for gas flow measurement
Application
Cell Phones and Tablets
Home and Building Climate Control Systems
Barometers and Weather Stations
Headsets and Controllers
Drones and Flying Toys
Sports Equipment
Absolute Pressure Measurement
Accurate Elevation Measurement
Altitude Tracking Floor and Stair Counting
Electronic cigarette
Outdoor sports altimeter Drone hover Sweeping robot jam monitoring
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
