Home Relay & Sensor purpose relay

purpose relay

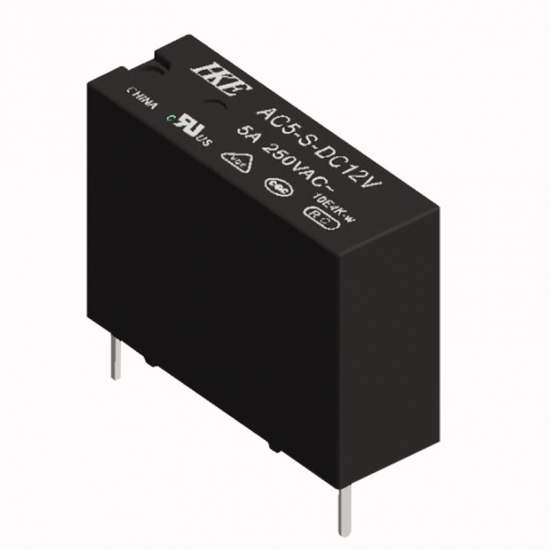

12V 5A general purpose relay  black electronic relay

  • Brand:

    HKE
  • Item NO.:

    AC5
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 working days for payment
  • Product Detail


12V 5A general purpose relay  black electronic relay



Basic Information

Contact Form

1 Form A

Contact Material

Ag Alloy

Contact Rating

5A 250VAC

Contact Resistance

Max. 100mΩ (24VDC 1A)





Load

Max. Switching Voltage

250VAC/30VDC



Max. Switching Current

5A



Max. Switching Power

1250VA, 150W



Min. Switching Load

5VDC, 100mA



Life

Electrical

100,000 operations



Mechanical

10,000,000 operations




Dimension

buchholz relay.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
