pcb push button switch

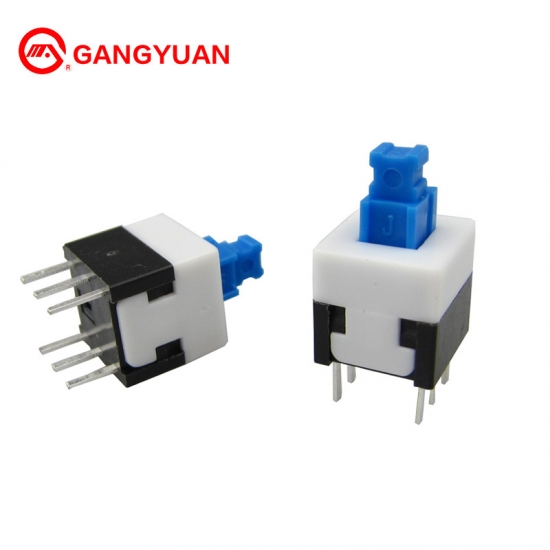

Hot sales 8x8mm straight vertical pcb push button switch

  • Brand:

    Gangyuan
  • Item NO.:

    PB21E08431
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    blue and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 working days for payment
  • Product Detail

Hot sales 8x8mm straight vertical pcb push button switch

Basic Information

Product name No-locking push button switch
Model Number

PB21E08431

Operation force

1.8N/2.5N±0.3N

Operating Temperature Range -5~35℃
Contact Resistance 100mΩ max
low resistance -20±2℃,72h
Heat resistance 80±2℃,72h
Mositure resistance 72h,40±2℃
Salt Mist 8h±1h,35℃±2℃
Operation life 10,000 cycles

Dimension

 6 pin electronic push button switch.jpg

HTB1nsGJgXXai.pngmicro push button switch with lock.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
