on/off tact switch

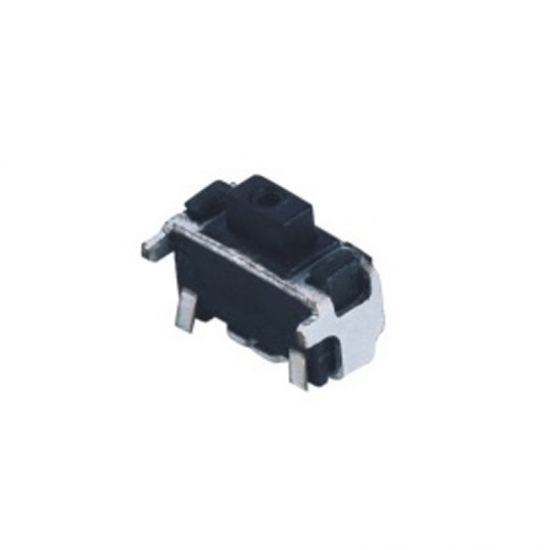

4 pin side button mini silent small on/off tact switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN1541
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

4 pin side button mini silent small on/off tact switch



Product Description:



           P/N: KAN1541-0291H
Dimension: 3.9X1.55X2.9mm
Operating force: 320gf ± 30 gf
Life time: 200,000cycles
Rating: 12V DC, 50mA
Travel: 0.15±0.05mm



Dimension:












Contact resistance ≤100mΩ Heat resistance 80±2℃, 96h
Insulation Resistance ≥100MΩ Moisture resistance 120h
Dielectric voltage proof 250V AC(50Hz/60Hz)/1min Sulfuration resistance 72h
Resistance to low temperature -30±2℃, 96h Salt Mist 48h±1h
