12V SMD tact switch

IP68 mini waterproof and dustproof 12V SMD tact switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN1542-0290H020
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

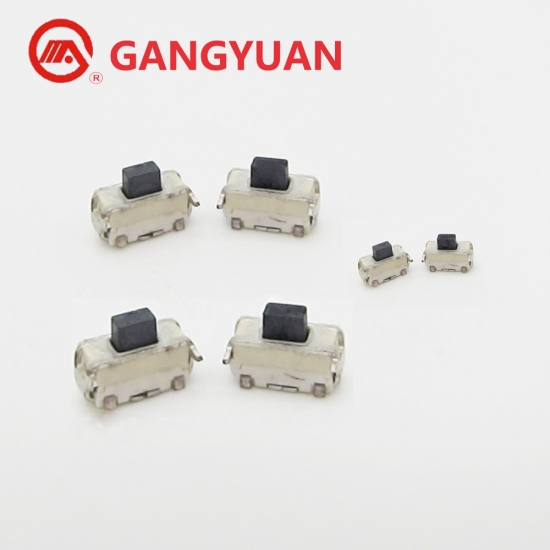

IP68 mini waterproof and dustproof 12V SMD tact switch


Basic Information

Contact Rating

  Ratings: DC 12V  50mA(Max)    DC 1V  10μA (Min)

Contact Resistance

≤100mΩ

Insulation Resistance

≥100MΩ

Operating Force

 2.3±0.3N

Operation life

200,000 cycles

Moisture resistance



80±2℃, 120h

Sulfuration resistance

40±2℃(90~95%RH)

Free samples range

30~50pcs


Dimension




Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
