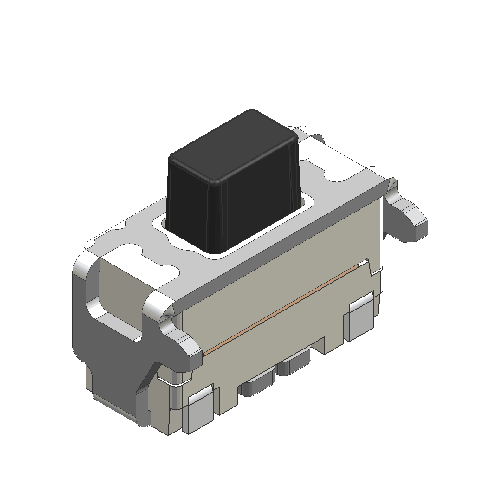

Mini Waterproof IP67 SMD Tact Switch

KAN1542: DC 12v 50mA, water resistance, SMD type tactlie switch.

  • Brand:

    Gangyuan
  • Item No.:

    KAN1542
  • Payment:

    T/T before shipment
  • Product Origin:

    ZheJiang China
  • Color:

    Black
  • Shipping Port:

    Shenzhen/ Ningbo
  • Min Order:

    1000
  • Lead Time:

    7-10 working days depends on actual quan
Product Details

Gangyuan Mini Normally  Closed  Waterproof IP67 SMD Tact Switch


Basic Information

Temperature

-20℃to+70℃

Rating

50mA.12V DC

Insulation resistance

100mΩ min.100V DC

Dielectric strength

250V AC for 1 min

Contact resistance

100mΩ max

Travel

0.25±0.1mm

Height

3.15mm-19.85mm

Operating Force

100gf/160gf/260gf

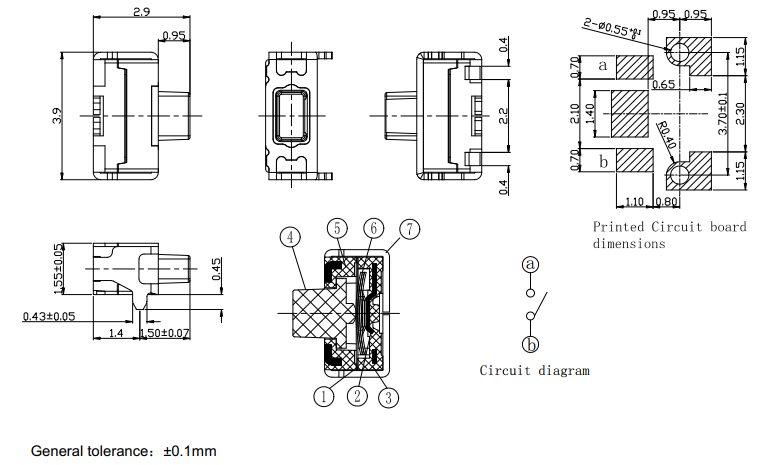

Dimension

A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
