Home Switch Non locking Switch On off latching push button switch

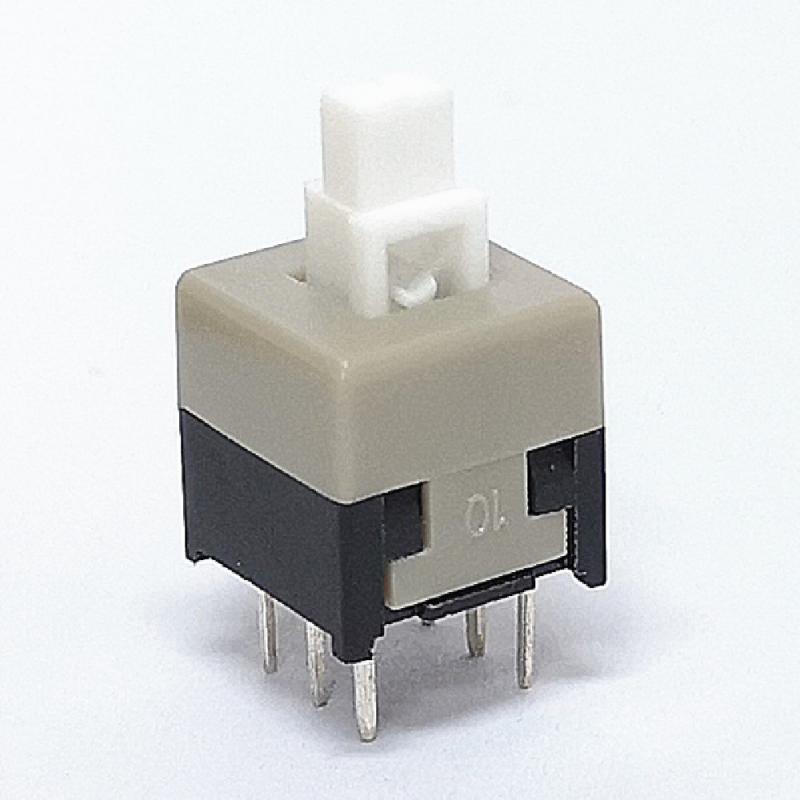

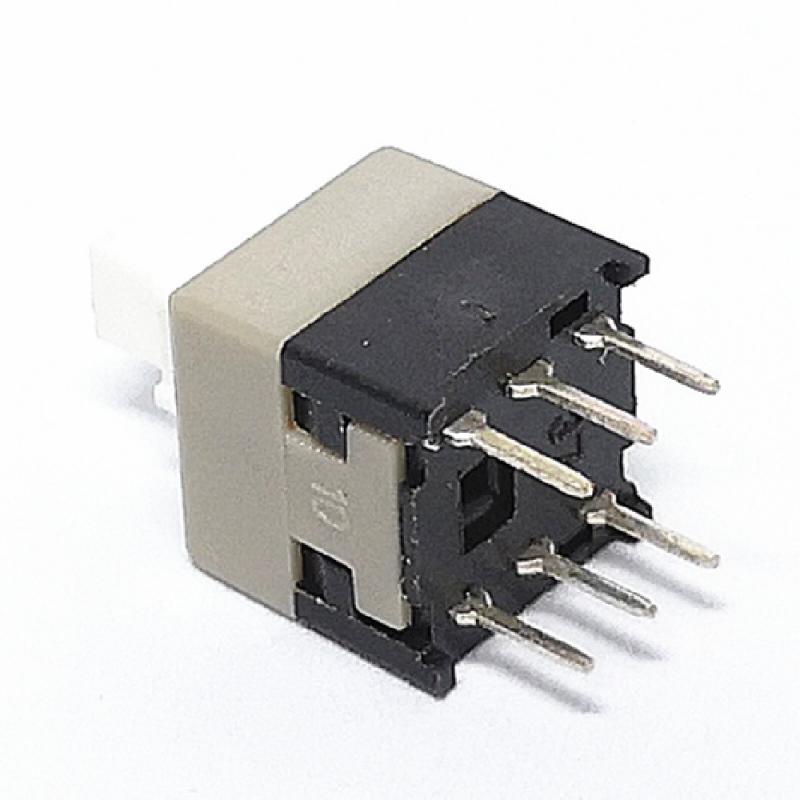

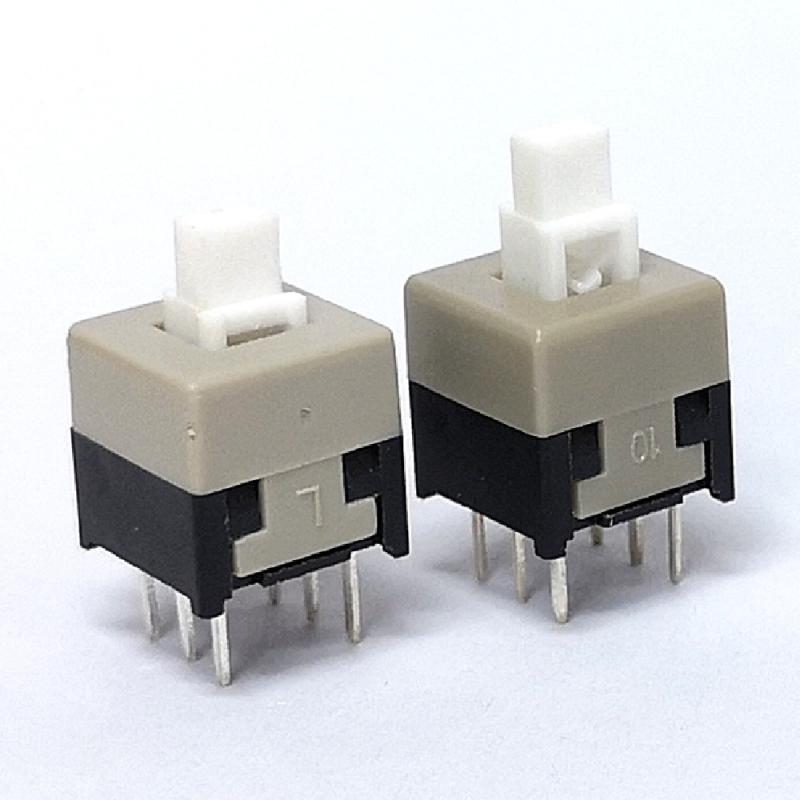

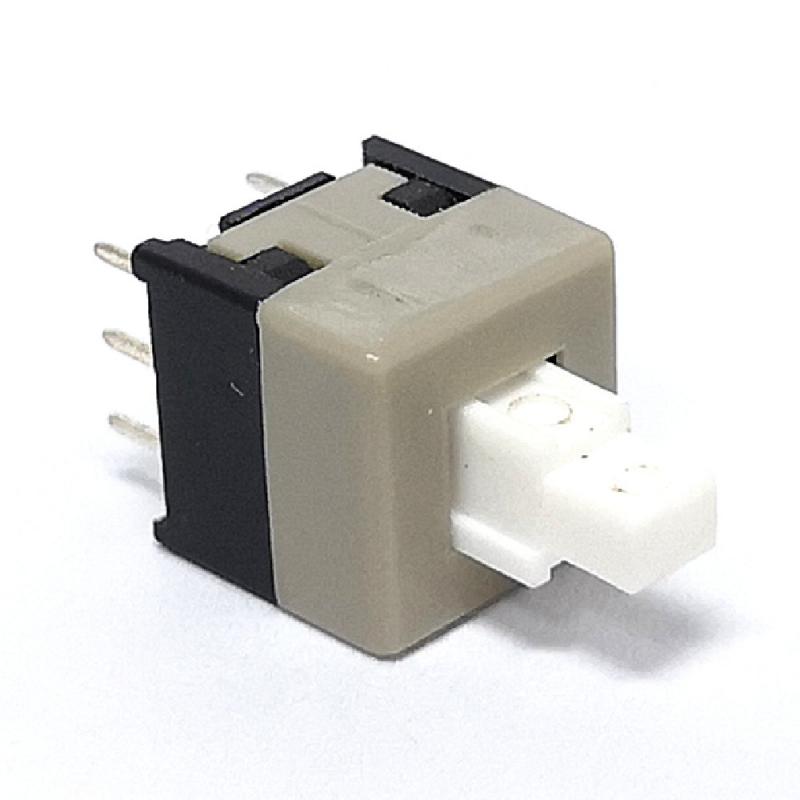

On off latching push button switch

We are the China factory of  momentary self-locking push button switch for appliance.

  • Brand:

    Gangyuan
  • Item NO.:

    PB22E09071
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black and Grey
  • Shipping Port:

    WenZhou/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

8.8*8.5mm micro tact push button switch manufacturers


Parameters


Max. Current: 0.1A

Max. Voltage: DC 30V
Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ DC500V

Insertion and extraction force: 170-180N

Withstand voltage: AC 300V(30Hz)/min

Life Test: 10000 cycles

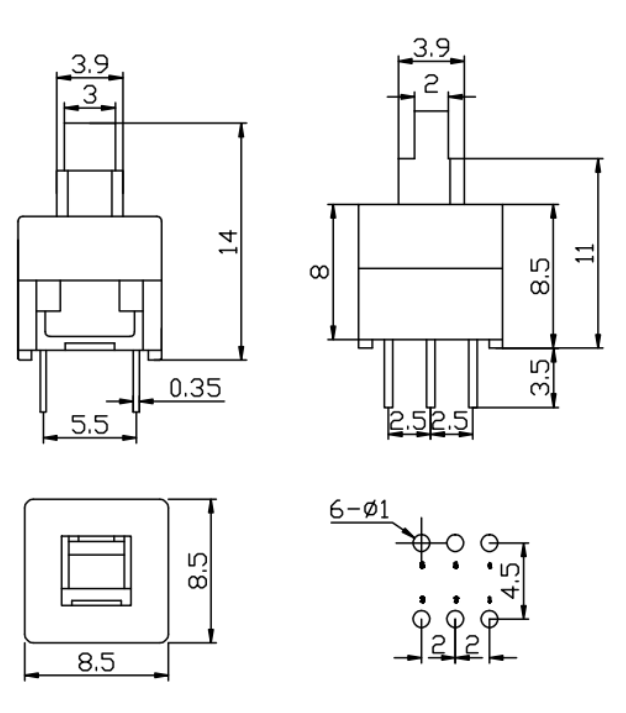

Drawing


Six-pin Self-locking Switch Principle


The six-pin switch (six-pin self-locking switch) is what we call a double-pole double-throw switch(DPDT push button switch). There are 2 rows of pins with 3 pins in each row. The middle one is the common terminal, corresponding to the two left and right pins, one normally open, the other is normally closed, the other row is the same as this, normally open to normally open, common point to common point, normally closed to normally closed, but it is completely independent of 2 groups, unless you connect them on the PCB It makes sense to get up.


R&D CAPABILITY

  • Technology design and development capabilities of miniaturized switch products
  • Design and development capabilities of Process automation equipment
  • Design and development capabilities of precision hardware and plastic mold


CAPACITY

  • 100K Grade Anti-Dust Plant
  • Production Equipment


  1. Automatic Production Equipment
  2. Automatic Assembly Equipment
  3. Automatic Detection Equipment
  4. Automatic Taping Equipment
  5. 100K Grade Anti-Dust Room
  6. Automatic Testing Workshop
  7. Final Assembly Fixed Plant
