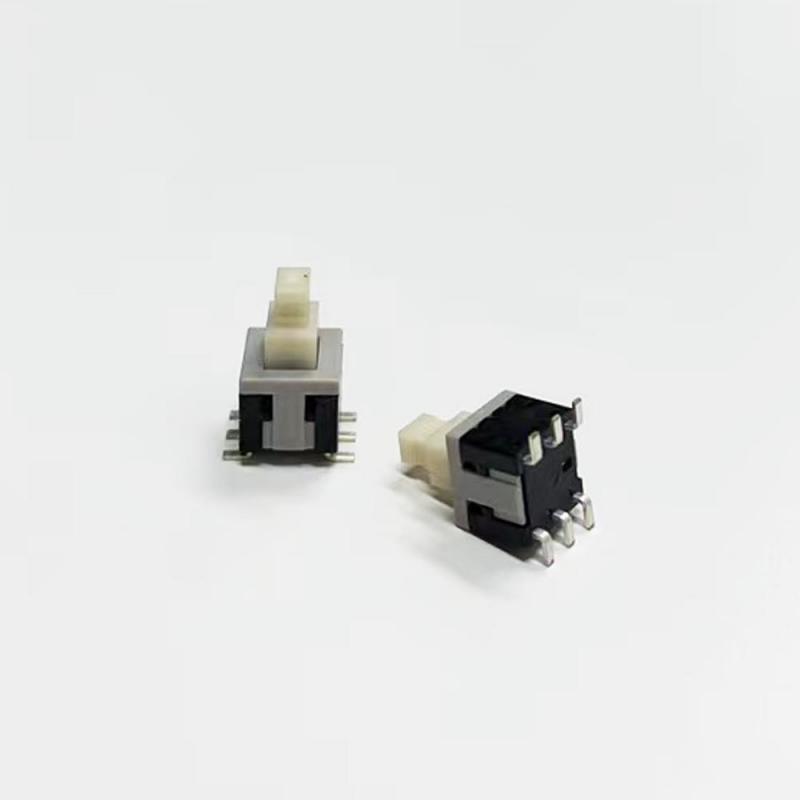

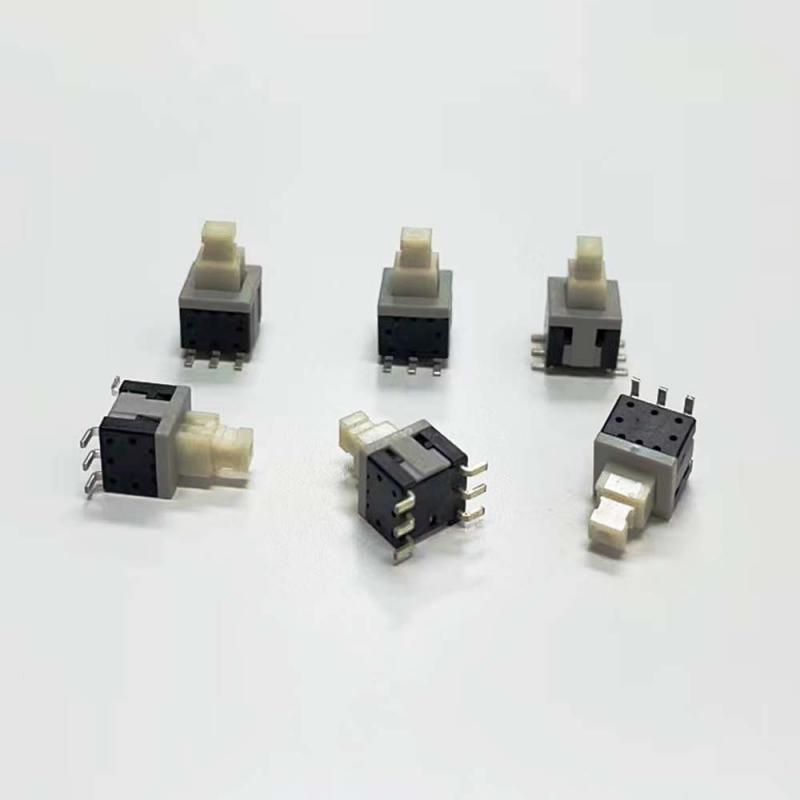

Grey Latching SMT push button switch 5.8*5.8

 Grey Latching SMT push button switch 5.8*5.8

Product parameter

   Voltage drop: DC 30V，0.1A

   Insulation Resistance: ≥100MΩ

   Operating force: 200±80 gf

   Full Travel: 2.3±0.5mm

   LOCK Travel: 1.5±0.3mm

   Wobble in Lever: 1.5 mm max

   Operation life: 10 000 cycles

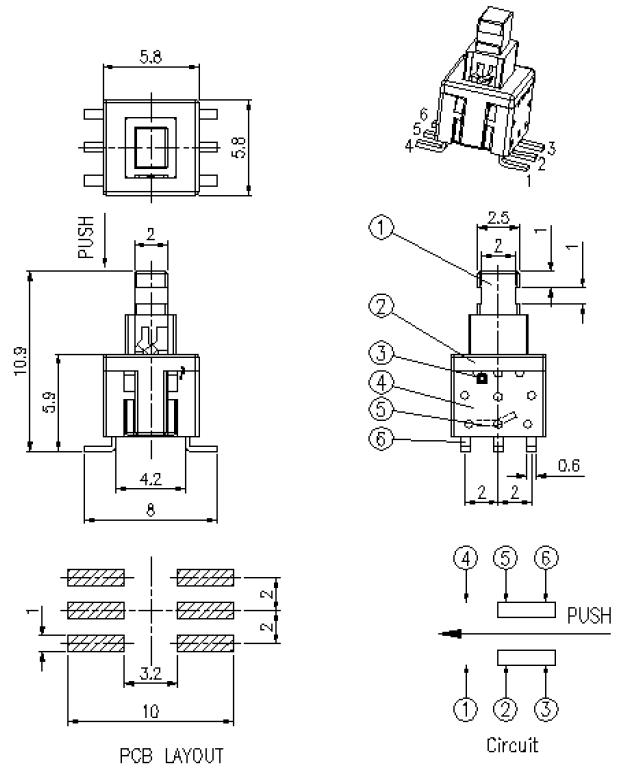

Drawing

Defination of self-locking switch

     The self-locking switch generally refers to the switch with its own mechanical locking function. After pressing it,  the button will not jump up completely after releasing it. It is in the locked state and needs to be pressed again to unlock it and jump up completely. It is called a latching switch. Early TVs and monitors that were directly powered off were such switches.
