non-locking push button switch

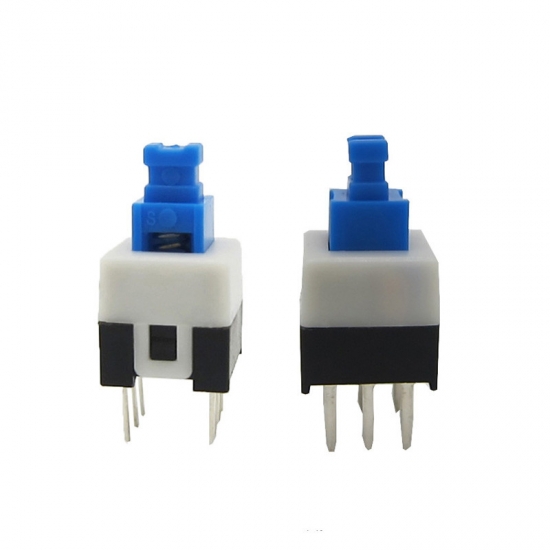

7x7mm non-locking no sound spring push button micro switch

  • Brand:

    Gangyuan
  • Item No.:

    PB21E07431-07
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    blue and whitete
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    20 pcs
  • Lead Time:

    3 Working Days after payment
Product Details

7x7mm non-locking no sound spring push button micro switch

Basic Information

Model No.:

PB21E07431-07 non lock non sound push button switch

Ratings:

12V DC, 50mA (effective value)

Contact Resistance:

≤100mΩ

Insulation Resistance:

≥100MΩ  100V DC

Withstand voltage:

250V  AC  / 1 min

Operating Force:

180±50gf

Dimension:

7x7mm x H mm

Full travel:

2.2±0.2mm

Life cycles:

10000times


Dimension

push button switch arduino.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
