Home Switch Tactile switch 62 Series tact switch mini push button tact switch

mini push button tact switch

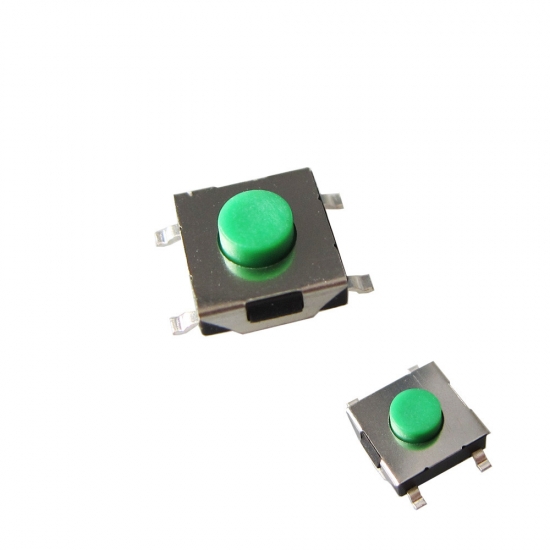

4 pin small smd mini push button tact switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN6247
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    silver and greend
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    14 working days for payment
  • Product Detail

4 pin small smd mini push button tact switch

Basic Information

Contact resistance ≤50mΩ Heat resistance 80±2℃, 96h
Insulation Resistance ≥100MΩ Moisture resistance 60±2℃, 96h
Dielectric voltage proof 250VAC(50Hz/60Hz)/1min Sulfuration resistance 40±2℃, 72h
Resistance to low temperature -30±2℃, 96h Salt Mist 35±2℃, 8h±1h

Dimension

tactile switch 6x6x4 3mm smd.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
