Mini Normally Closed SMD Tact switch

Gangyuan Long Travel Mini Normally Closed SMD Tact switch

  • Brand:

    Gangyuan
  • Item No.:

    KAN3741
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    yellow and black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

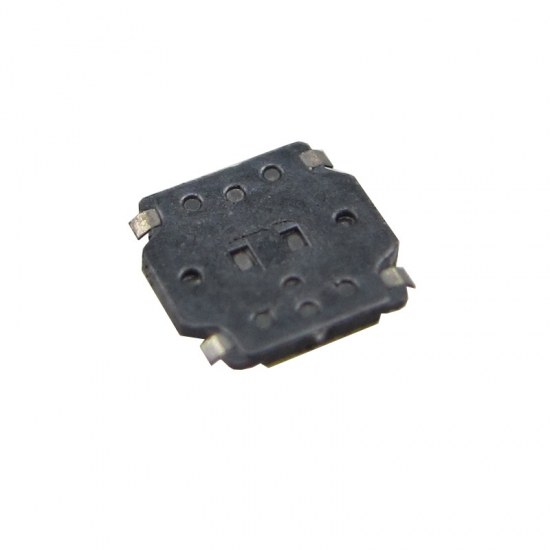

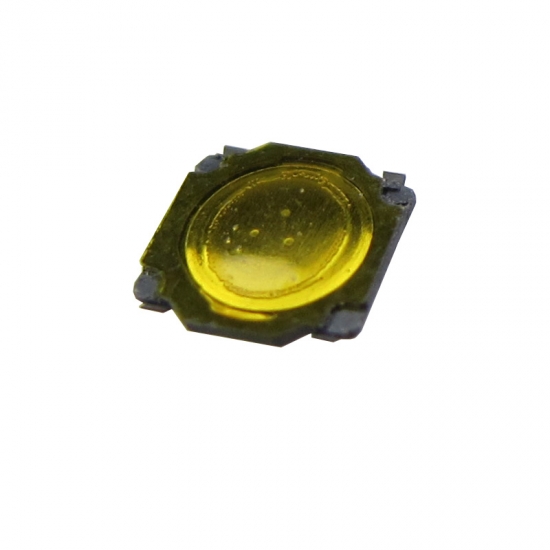

Gangyuan Long Travel Mini Normally Closed SMD Tact switch

Product Description

Tact Switch Features:

  • Gangyuan
  • SMD Tact switch
  • Dimensions: 3.7X3.7xH (mm)



Tact Switch Specification:

Contact Rating

  Ratings: DC 12V  50mA(Max)    DC 1V  10μA (Min)

Contact Resistance

≤100mΩ

Insulation Resistance

≥100MΩ

Operating Force

100gf/160gf/260gf±50gf

Operation life

100,000 cycles

1,000,000cycles

Heat resistance



80±2℃, 96h

Sulfuration resistance

40±2℃, 72h

Free samples range

30~50pcs




OUTLINE, WIRING DIAGRAM, MOUNTING HOLE LAYOUT (UNIT: mm)






Application

Tactile switch use for Audio and video products; Router; set-top boxes; communications products;

white home appliances; black home appliances; small household appliances; security products; toys; office equipment, etc.
