push button switch smd tact switch

Gangyuan Long Travel Mini Normally Closed SMD Tact switch

Gangyuan 6x6 series bracket type 4pin 6x6 smd tact switch high quality durable using life, produce for JAPAN CANON, RGB rod and height, operation force, life cycles for selection, use for Audio and video products: Router: Set-top box: Communication products: white goods; black appliances: small appliances: security products: toys; office equipment, etc. Basic Information Model Name: 4pin 6x6 smd tact switch Model No.: KAN0621 series (KAN0621-0431B) Dimension: 6x6xH (4.3-18)mm Operating force: 100gf/160gf/260gf Life cycles: 100,000/200,000 Cycles Waterproof: IP67 grade Working tempreture:  -20℃to+70℃ DC rating: 50mA.12V DC Insulation resistance: 100MΩ min.100V DC Dielectric strength: 250V AC for 1 min Contact resistance: 100m Ω max. Full travel : 0.25±0.1mm   Passed test: Salt Mist/Solderability/Resistance to low temperature/Heat resistance/Change of temperature /Moisture resistance /Sulfuration Resistance etc Certifications:   CE,ROHS, REACH, ENEC,  Features:  High quality, durable using life Dimension Tact Switch Using Attention 1．Please consult us when considering to wash tact switches 2．Please don’t immerse soldering flux into tact switches 3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board 4．The second welding should be done after switches return to normal temperature Our advantage 1. Excellent R&D team, clients design requests are welcome. 2. Experience of more then two decades in switch manufacturing. 3. Two thousands invention patents and 47 utility model patents. 4. Assembly process in 100,000 grade dust-free workshop. 5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system. Application Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance; act Tactile Switch

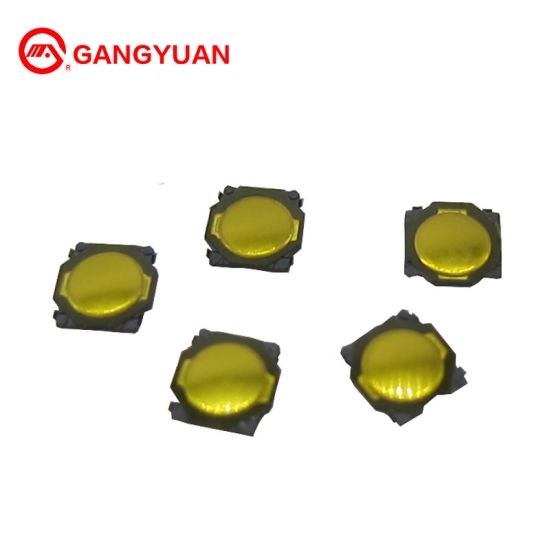

4x4 smd tact switch normalyl open mini usb tact switch Basic Information Contact Rating   Ratings: DC 12V  50mA(Max) Contact Resistance ≤100mΩ Insulation Resistance ≥100MΩ Operating Force            100gf/160gf/260gf±50gf Operation life                      100,000 cycles Heat resistance                       80±2℃, 96h Sulfuration resistance                       40±2℃, 72h Dimension Tact Switch Using Attention 1．Please consult us when considering to wash tact switches 2．Please don’t immerse soldering flux into tact s 3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board 4．The second welding should be done after switches return to normal temperature Our advantage 1. Excellent R&D team, clients design requests are welcome. 2. Experience of more then two decades in switch manufacturing. 3. Two thousands invention patents and 47 utility model patents. 4. Assembly process in 100,000 grade dust-free workshop. 5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system. Application Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance; act Tactile Switch

4x4 smd tact switch normalyl open mini usb tact switch

0.5mm operation stroke 1NO non-locking metal IP67 switch

The self-locking switch generally refers to the switch with its own mechanical locking function, accompanied by sound.

This compact smd tact switch is ideal for applications such as sports watches, hearing aids, and the latest IoT portable devices. Smaller, more reliable switches are required for designs with limited PCB space.
