micro switch t105 1e4

soft touch circuit board micro switch t105 1e4 ms4-16t

  • Item No.:

    G20-16CM-150-08
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

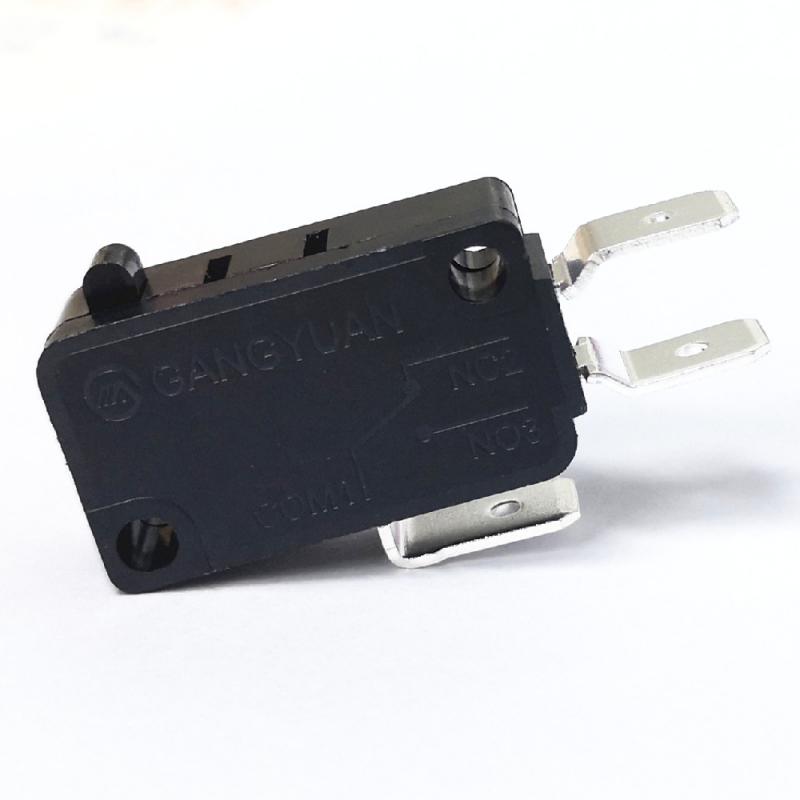

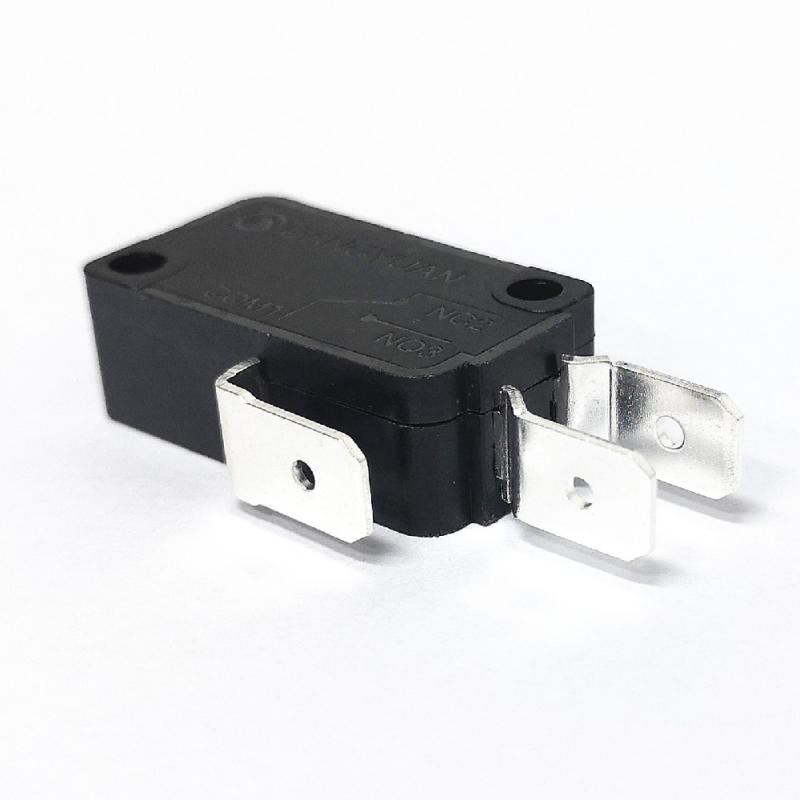

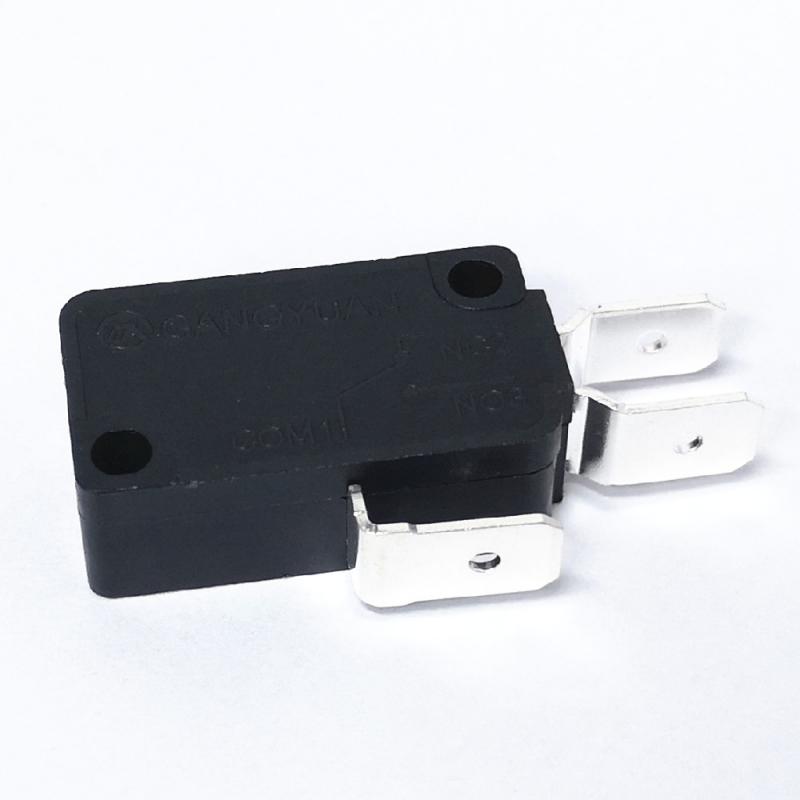

soft touch circuit board micro switch t105 1e4 ms4-16t



Product Description:

P/N G20-16CM-150-08
Rating 125/250VAC   16A
Operating Force 150±50gf
Life Time 50,000 Cycles
Operating Temperature Range -25℃~+125℃
Dielectric Withstanding Voltage 1500V AC 1Min
Certificate UL,ENEC,CQC
Insulation Resistance ≥100MΩ
Contact Resistance ≤200mΩ
Soldering Temperature 260±5℃ 5s





_01

A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.

  • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
