Home Switch Micro switch G20 Series micro switch 5a 125/250vac

micro switch 5a 125/250vac

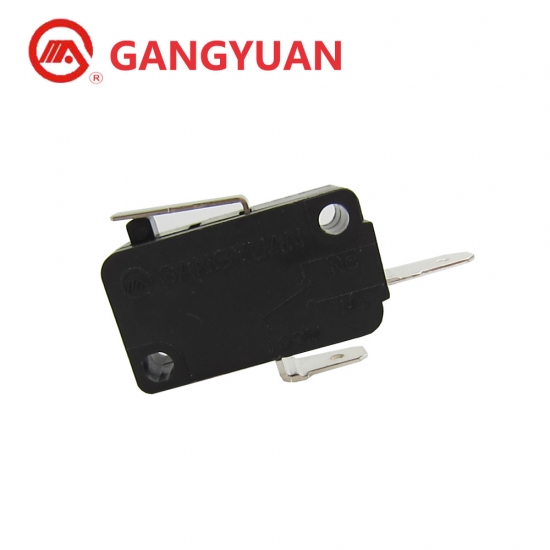

Electronics 5a 125/250VAC limit mini Micro Switch

  • Brand:

    Gangyuan
  • Item NO.:

    G20-16GN15-150
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    14 working days for payment
  • Product Detail

Electronics 5a 125/250VAC limit mini Micro Switch

Basic Information

Item No.
G20-16GN15-150
Dimension
29mmx10.1mm
Contact resistance
≤100mΩ
Dielectric Withstanding Voltage
 AC 1500V 1Minute
Operating temperature
-25℃+125℃
Operating force
150±50gf
Life expectancy
50,000Cycles
Rating
16A 125V/250VAC

Dimension

kw12 3 micro limit switch information.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
