Home Switch Slide switch Metal PCB Terminal 8 Pin Vertical 3 Way Slide Switch

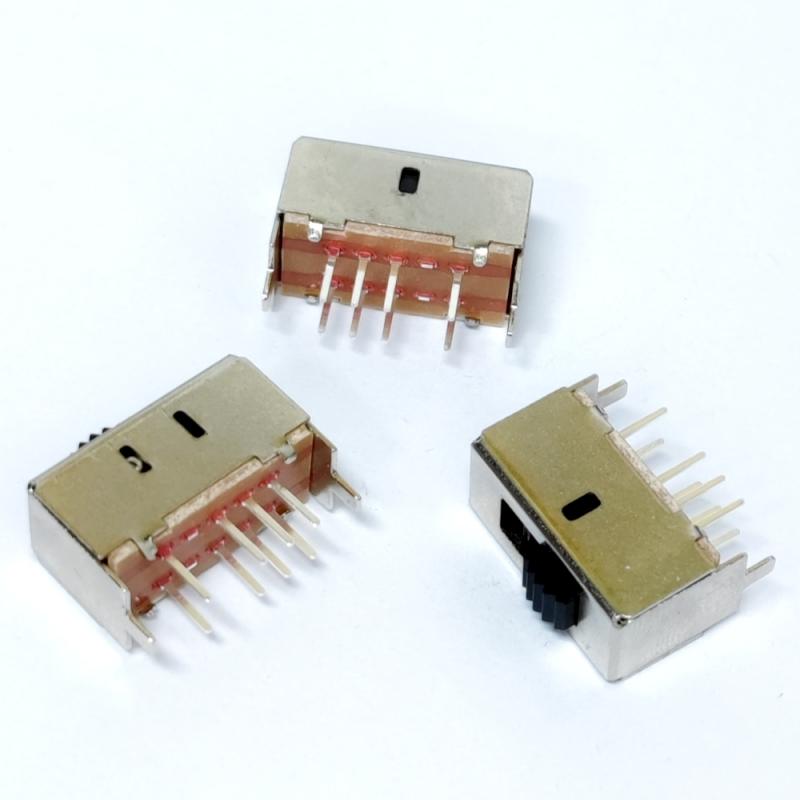

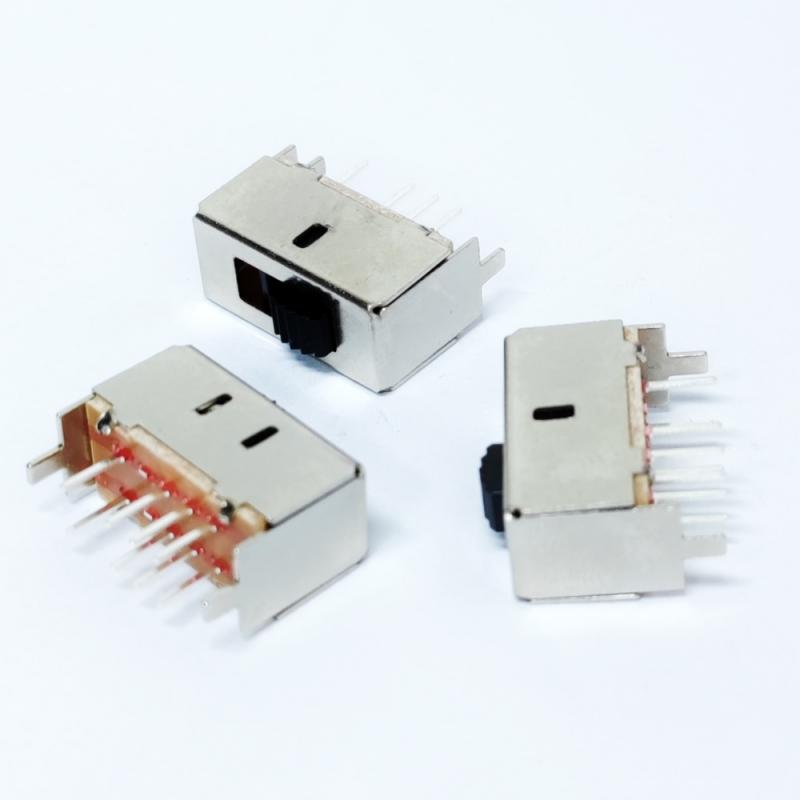

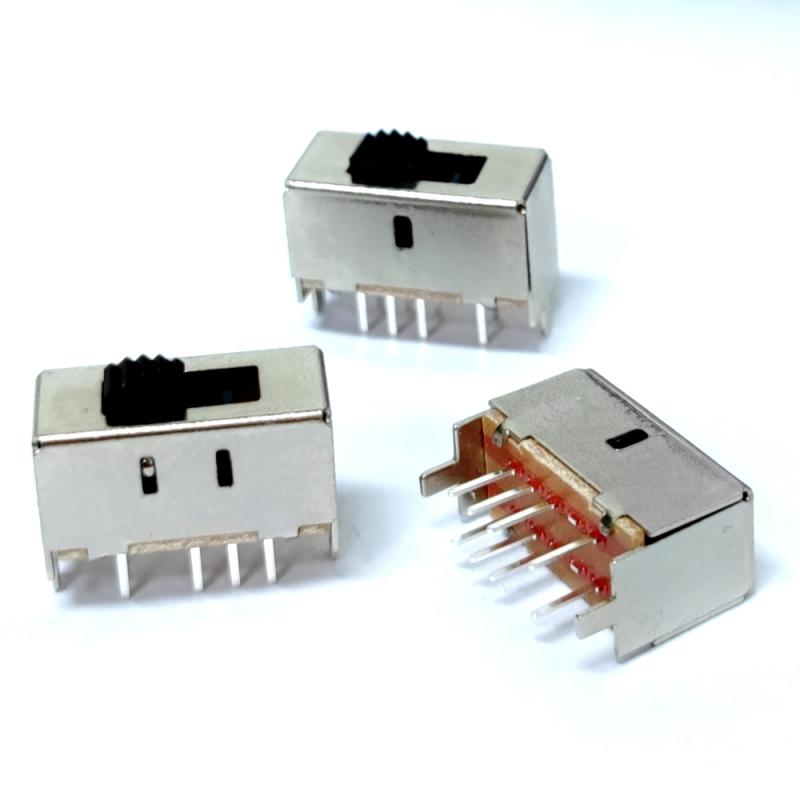

Metal PCB Terminal 8 Pin Vertical 3 Way Slide Switch

SPDT slide switches are also known as three-way switches because they link a single conductor to any of two other single conductors. In most cases, these switches have three terminals utilized in pairs. This standard switch may be used as an ON or OFF or a standard control switch.

  • Brand:

    Gangyuan
  • Item NO.:

    SS23E01-G2
  • Order(MOQ):

    1000
  • Payment:

    100% before production
  • Product Origin:

    Wenzhou
  • Color:

    Black
  • Shipping Port:

    Ningbo or Shenzhen
  • Lead Time:

    7-15 working days
  • Outline (mm)

    20.00mm x 9.40mm
  • Mounting Type

    Through Hole
  • lllumination

    Non-llluminated
  • IP Rating

    No IP Rating
  • Product Detail

slide switch electronics 8 pin 3 position vertical slide switch


 Typical Specifications


Type: electronic component slide switch

Ratings: 0.3A 50V

Operating Force:250±100gf

Full Travel: 2±0.2mm

Operation life: 10,000 cycles

Slide switch knob: 2mm

Operating Temperature Range: -20℃~70℃

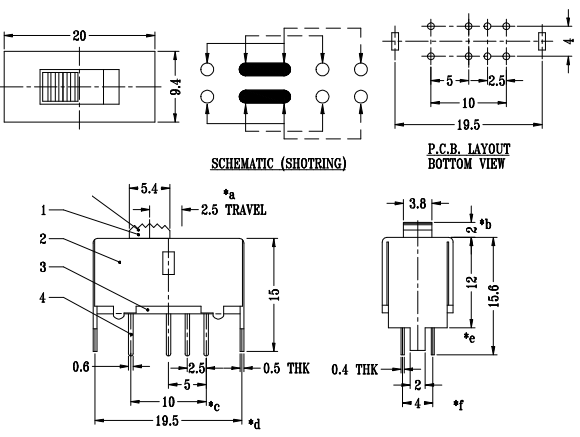

 Slide switch dimensions

 low profile slide switch


 Product details

Excellent materials - Made of high-quality stainless steel, customized according to demand

Advanced technology - All products comply with EU ROHS standards, providing customers with qualified high-quality products

Customized processing - Customized production according to customer needs, with a full range of products, reliable quality and timely delivery.

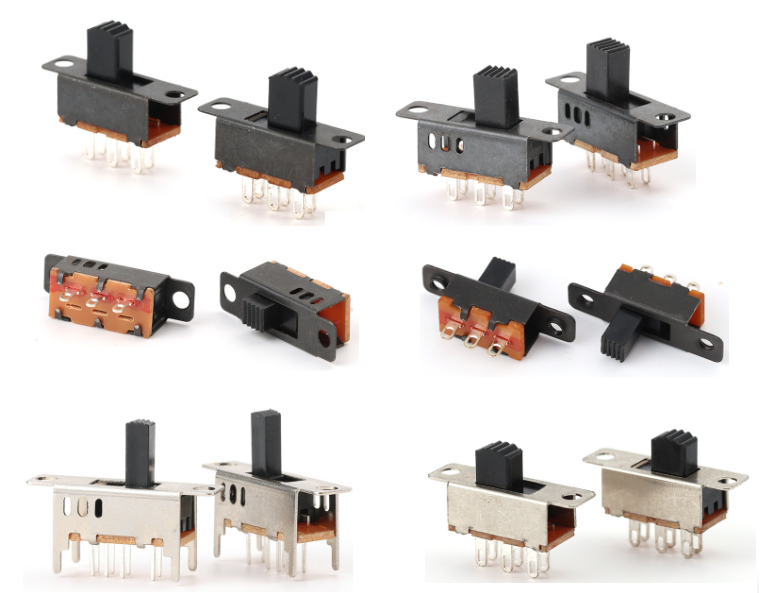

 What are the terminals of a slide switch ?

There are many terminal types for slide switches, including feed-through style, wire leads, solder terminals, screw terminals,

quick connect or blade terminals, surface mount technology, and panel mount switches. The handle of the switch is either raised or

flushed, depending on the actuator type.


Typical Applications

Straight handle toggle switch LED lighting switch vertical slide switch

Machine control

security products

digital cameras

precision instrument electronics

industrial program control

All kinds of household appliances
