Home Switch Tactile switch 07 Series tact switch LED right angle tactile switch

LED right angle tactile switch

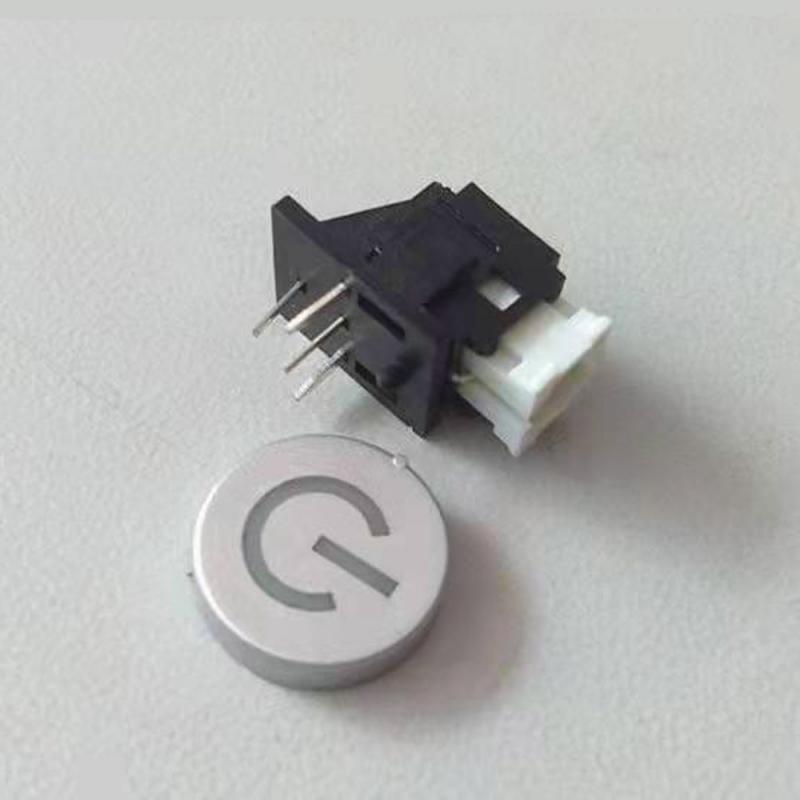

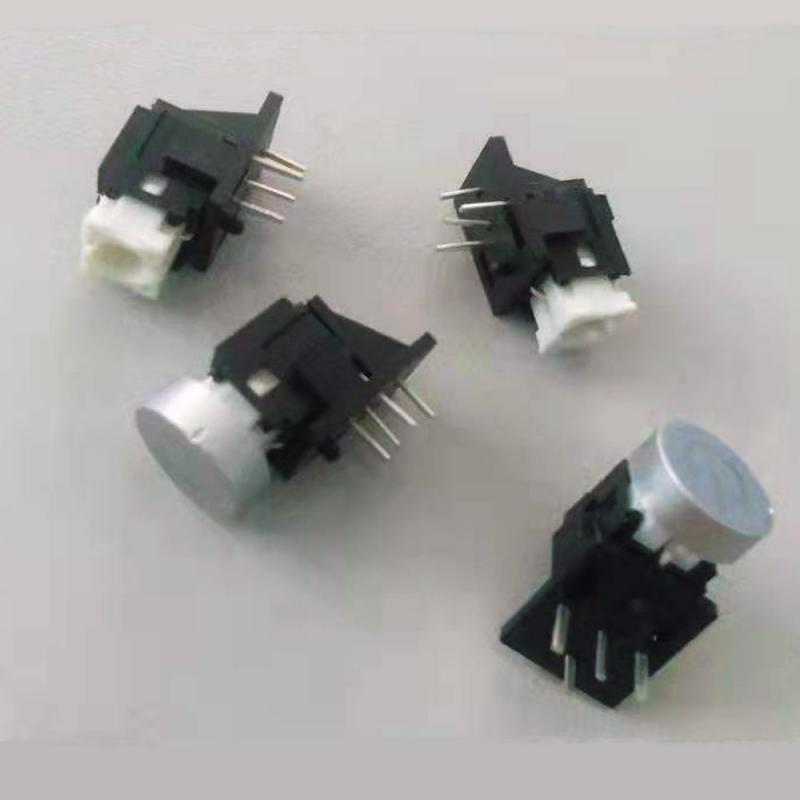

7x7mm right angle DIP LED right angle tactile switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0713-03-CH
  • Order(MOQ):

    50 pcs
  • Payment:

    T/T
  • Product Origin:

    zhejiang/shenzhen
  • Color:

    led: green/white/blue
  • Shipping Port:

    ningbo or shenzhen
  • Lead Time:

    10 Working Days after payment
  • Product Detail


7*7 Right angle dip LED right angle tactile switch


Basic Information

Model No.:

KAN0713-03-CH

Dimension:

7*7mm

Operating force:

260gf±50gf

Life cycles:

10,000 times

DC rating:

12V DC, 50mA (effective value)

Salt mist:

8h±1h

 Feature:

illuminated Tact Switch

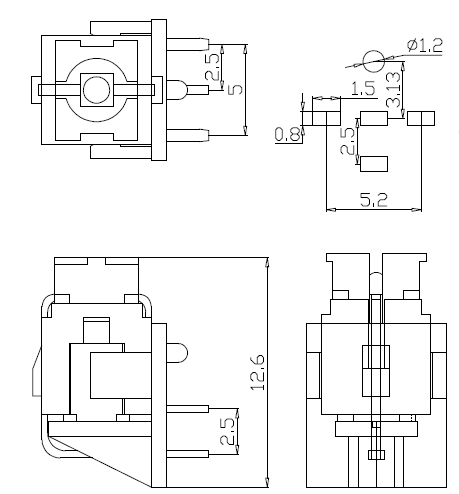

Dimension



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature


Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949, ISO9001, ISO14001, OHSA18001 quality system.


Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

LED Tactile Switch
