6 pin 5 way momentary smd tactile switch

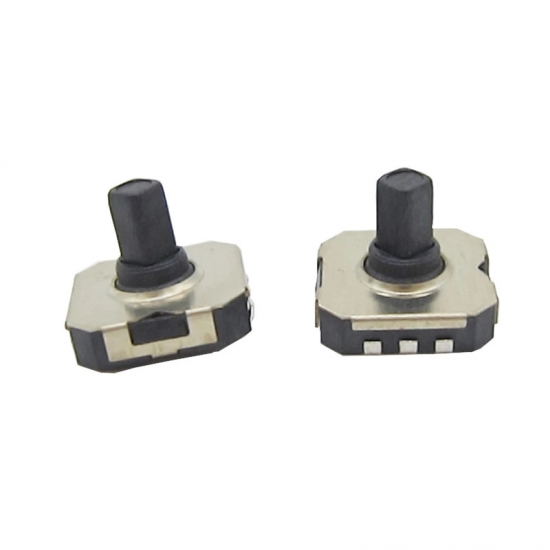

7.5x7.5mm 6 pin 5 way momentary smd tactile switch

  • Item No.:

    KAN0741-0601M
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    20 working days after payment
Product Details

6 pin 5 way momentary smd tactile switch


Product Description:

Model Name:

SMD tact switch

Model No.:

KAN0741-0601C

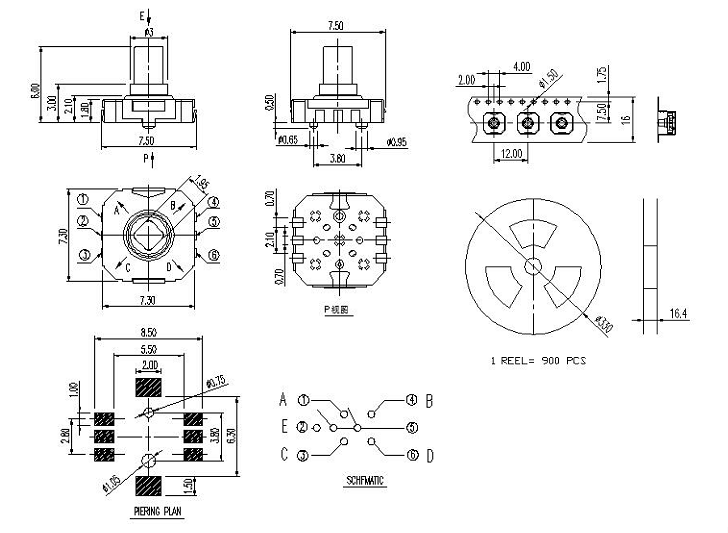

Dimension:

7.5x7.5mm x H

Operating force:

center: 400+50/-0 gf ;

 4-directional:200+50/-0 gf

Life cycles:

100000 times

Working tempreture:

 -20℃to+70℃

DC rating:

50mA.12V DC

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

100m Ω max.

Full travel :

0.15±0.10 mm  4-dir leaning:0.25±0.10 mm


Product Description:




A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
