Home Switch Tactile switch 07 Series tact switch 7.3x7.3 Smd tactile push button switch china manufacturer smd tact switch

7.3x7.3 Smd tactile push button switch china manufacturer smd tact switch

7.3x7.3 Smd tactile push button switch china manufacturer smd tact switch.


  • Brand:

    Gangyuan
  • Item NO.:

    KAN0741
  • Order(MOQ):

    1000
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black or grey
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 -5 Working Days after payment
  • Product Detail

 7.3x7.3 Smd tactile push button switch china manufacturer smd tact switch


Feature

Product Name: Smd tactile push button switch

Product specifications: 7.5×7.5×5MM/6MM

Product model: KAN0741 series

Product strength: 360gf

Product life: 100,000 times



Basic parameters

Working temperature: -20 ° Cto + 70 ° C

Rated current: 50mA.12V DC

Insulation resistance: 100MΩ min.100V DC

Dielectric strength: 250V AC for 1 min

Contact resistance: 100m Ω max.

Switching Travel: 0.25±0.1mm

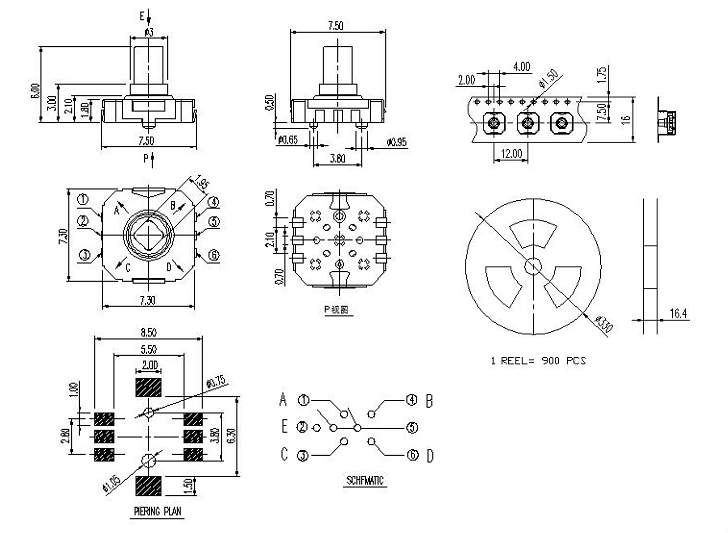

Dimension

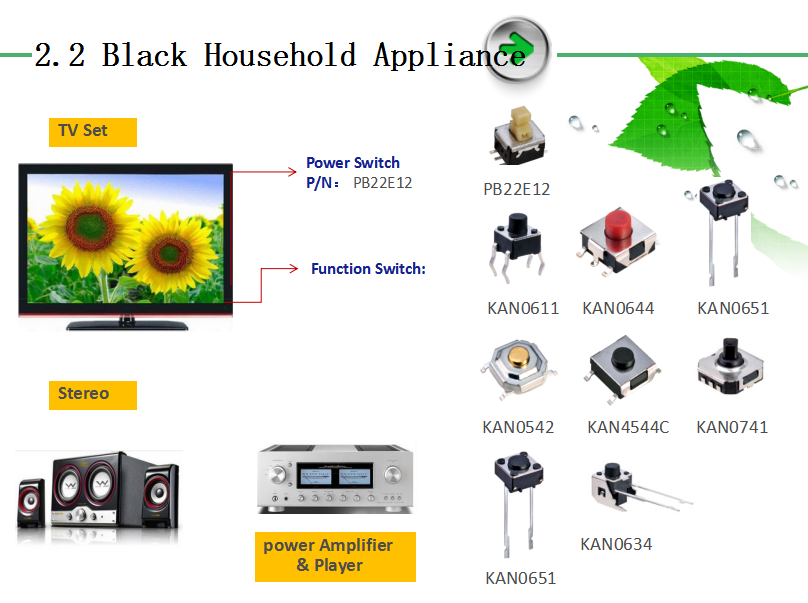

Application

Use for Audio and video products; digital products; communication products; digital equipment; mobile phones; computer products; digital cameras; digital cameras etc.
