led push button switch

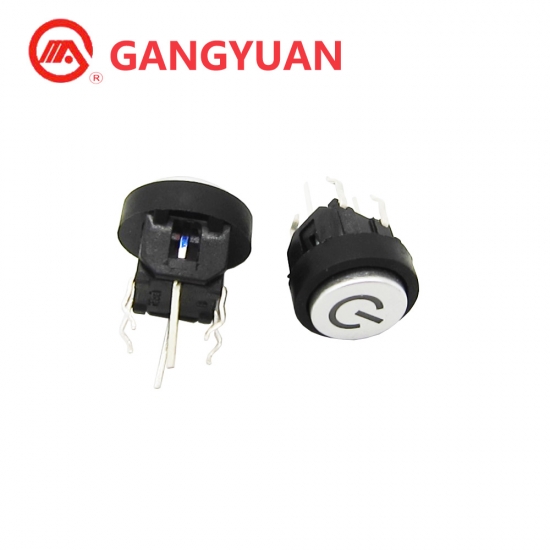

50mA 12V 10x10 momentary led push button switch

  • Brand:

    Gangyuan
  • Item No.:

    TS-2B-3AX
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

50mA 12V 10x10 momentary led push button switch

Basic Information

Model No.:

TS-2B-3AX

Operation life:

200,000 cycles

Operating force 2.5±0.5N
Environmental temperature -10~60℃

Travel

0.25mm±0.1mm

Button  Diameter

10mm


Dimension

 led indicator push button switch.jpg

arduino push button switch led.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
