Horizontal Style Mini slide switches

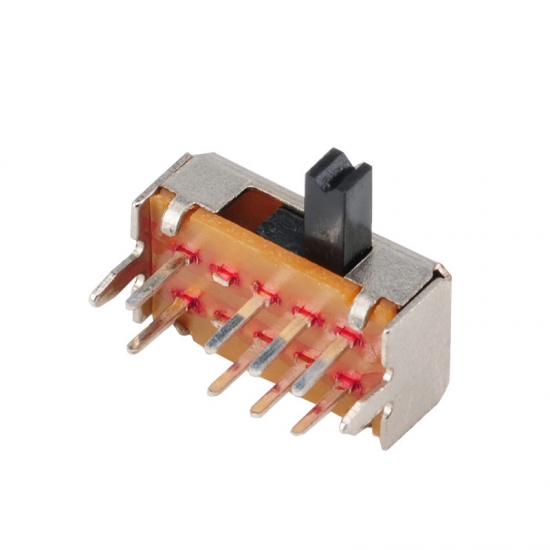

Side Knob Slide Switch Horizontal Style Mini Switches

  • Brand:

    Gangyuan
  • Item NO.:

    SK23D07
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    silver
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-15 working days after payment
  • Product Detail

Side Knob Slide Switch Horizontal Style Mini Switches


Basic Information


smt slide switch.jpg Life cycles 10,000cycles
Rating DC60V 0.3A
Function 2P3T
Travel 2mm
Operating force 180gf/250gf
Contact resistance 70m Ω
Insulation resistance 100M Ω
Resistance voltage AC 500V for 1 minute


Dimension


slide switch circuit.jpg



Our Advantage


1. The factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of categories. More than 2000 models.

3. Good quality. Using raw materials imported from Japan and South Korea.

   More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.

7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.


Application


Slide switch is to turn on or off the circuit by turning its actuator (switch handle). It has the characteristics of flexible slider action, stable and reliable performance, and is widely used in electrical appliances, machinery, communications, digital audio and video, building automation, and electronic products.

FAQ


1. Q: Are you manufacture/ factory? Location?

   A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

   A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.

3. Q: What about the delivery time?

   A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

   A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?

   A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

  A: Yes, we have 100% test before delivery.
