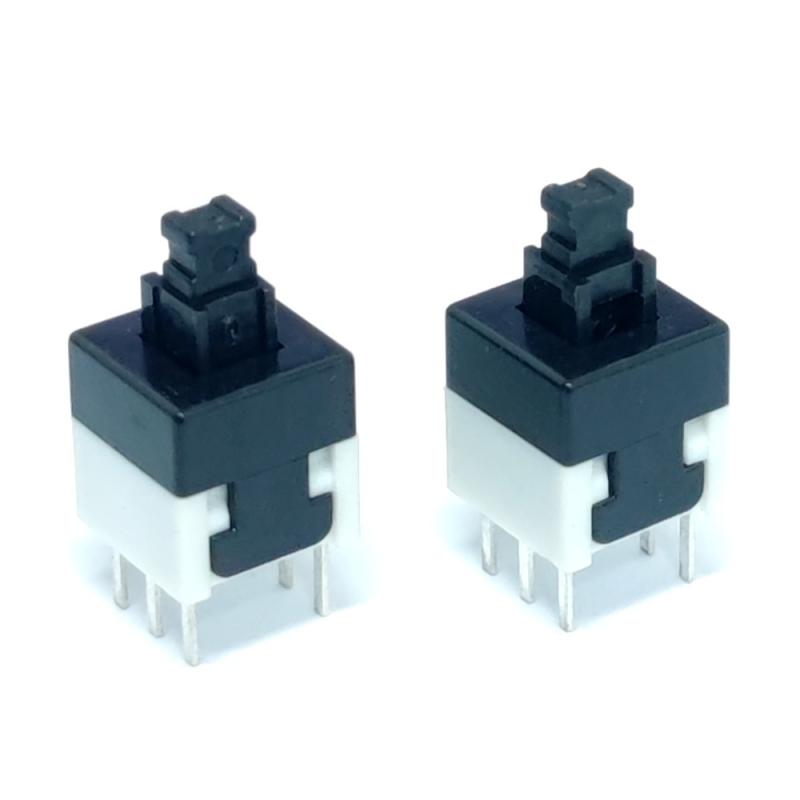

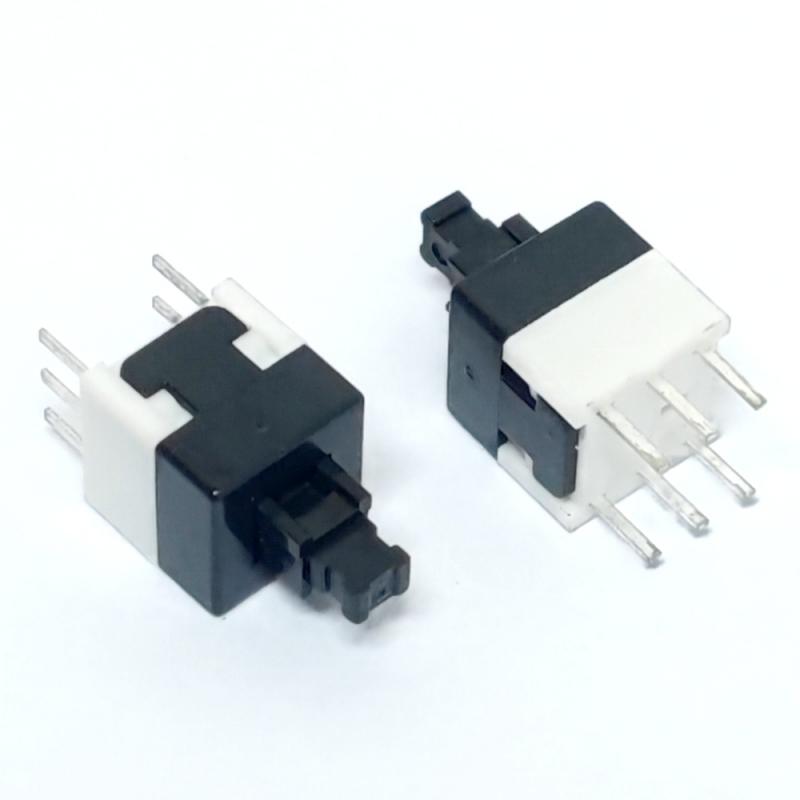

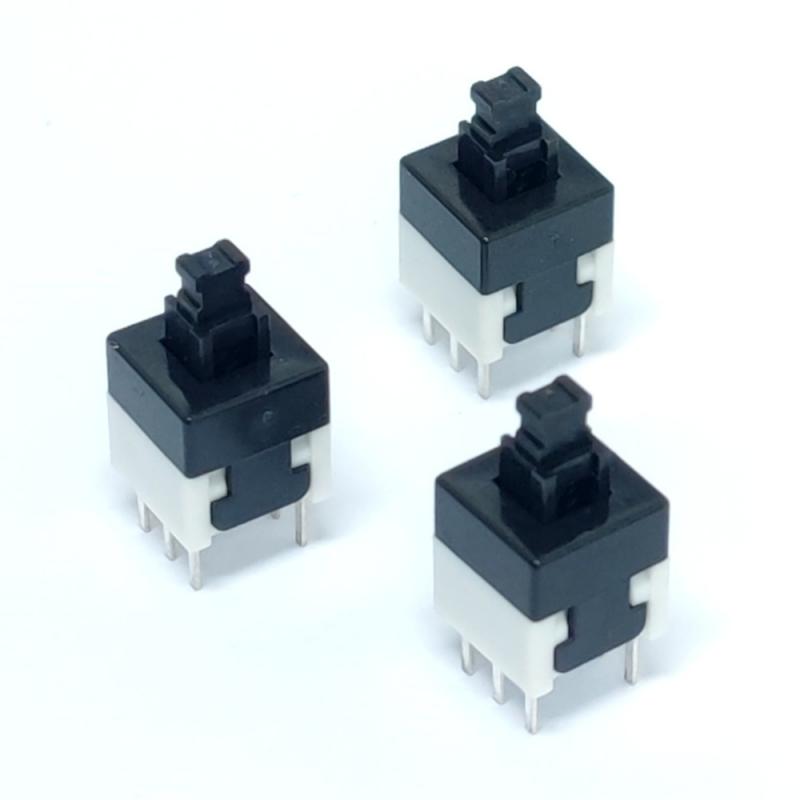

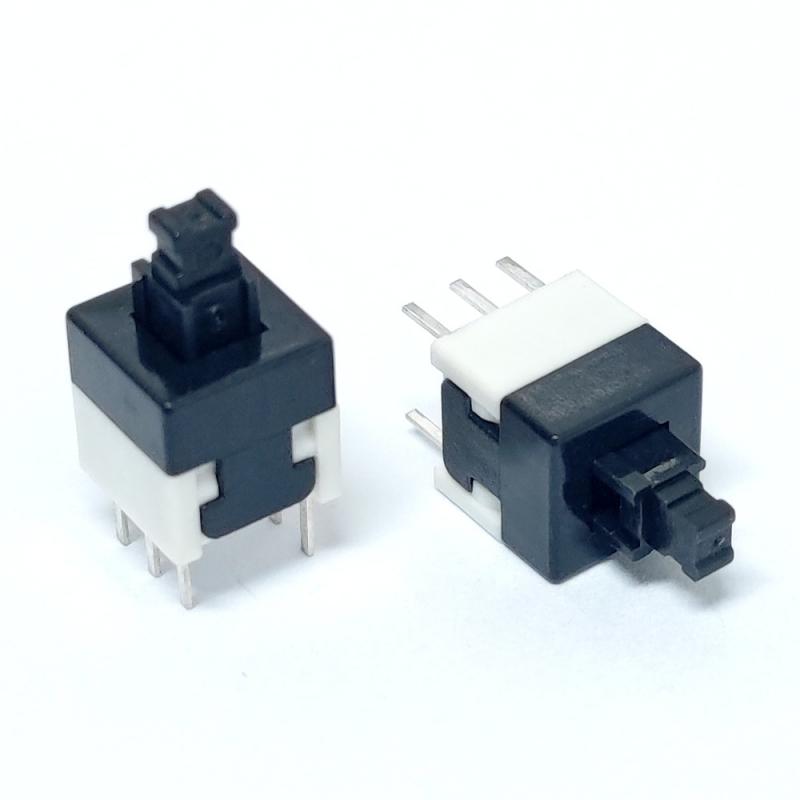

The 8x8mm self-locking push button switch is a compact 6-pin (DPDT) tactile switch used for on/off power control, often with a 17mm total height and 2.5mm pin pitch. It features a mechanical latch that stays down when pressed (on) and pops up when pressed again (off), ideal for PCB mounting in electronics.
Brand:
GangyuanItem NO.:
PB23E08113-06Order(MOQ):
100pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
8.00mm x 8.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
No IP RatingTwo Row Push Pull 8x8mm Tactile Push Button Switch
Specification
Type: Dip PCB Mount 8*8 Latching Push Button Switch
Ratings:DC 30V 0.1A
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Operating force: 180±70gf
Full Travel: 2.4±0.2mm
Operation Life: 10,000 cycles

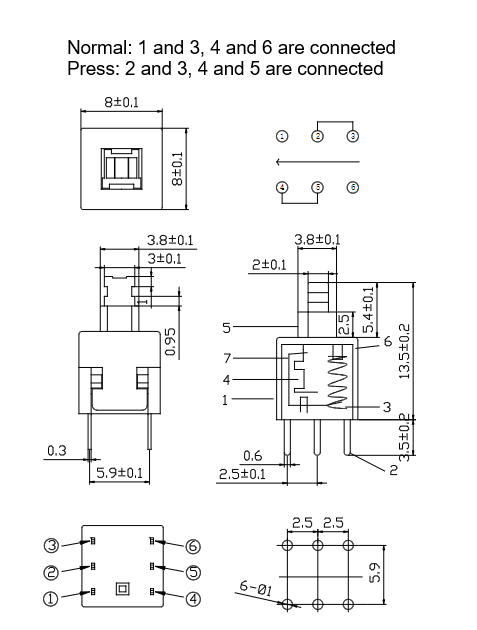

Schematic
Tactile Latching Switch for Industrial & Consumer Electronics
Key Feature
Self-Locking Mode: Press once to lock the circuit in ON state, press again to release and return to OFF state,
ideal for power control, mode switching applications.
Non-Locking Mode: Press to activate, release to reset, perfect for momentary trigger, signal input, reset functions.
6-Pin DIP Design: Standard DPDT (Double Pole Double Throw) configuration, supports dual-circuit control, compatible with universal PCB layouts.
Tactile Feedback: Crisp, consistent click feel with every actuation, ensuring reliable operation and user confidence.
Installation & Welding Guide
Mounting Type: Through-Hole PCB Mount
Welding recommendation: Use the automatic immersion welding method at 255℃. T
he maximum welding time should not exceed 5 seconds to avoid excessive heating and damage to the internal components.
Installation Note: Ensure proper alignment of pins with PCB holes, avoid bending pins during installation
Recommended PCB Pad Layout: Provide standard pad design for 8.5x8.5mm 6-pin switch, downloadable for engineers
FAQ
Q1: What is the difference between self-locking and non-locking 8.5x8.5mm switches ?
A: Self-locking switches stay in the ON state after pressing, requiring a second press to turn off.
Non-locking (momentary) switches only activate while pressed, resetting when released.
Q2: What certifications do your 8.5x8.5mm latching switches have ?
A: All our switches are RoHS, ISO9001,ISO14001,1045001, REACH compliant and other certification
Q3: What is the minimum order quantity (MOQ) for custom 8.5x8.5mm switches ?
A: The standard MOQ is 5,000pcs, and we support small-batch custom orders for R&D projects.
Q4: Can you provide 3D models or CAD files for the 8.5x8.5mm switch ?
A: Yes, we provide free 2D dimension drawings and 3D STEP files for all our standard products.
Q5: What is the lead time for mass production ?
A: Standard lead time is 7-15 days after sample confirmation, and we offer expedited production for urgent orders.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
