Home Switch Slide switch dpdt 8 pin slide switch

dpdt 8 pin slide switch

A slide switch is a mechanical switch that slides from the open (off) position to the closed (on) position and allows control of a circuit's current flow without having to manually splice or cut wire.

  • Brand:

    Gangyuan
  • Item NO.:

    SK23D06
  • Order(MOQ):

    500
  • Payment:

    100% T/T Before Production
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

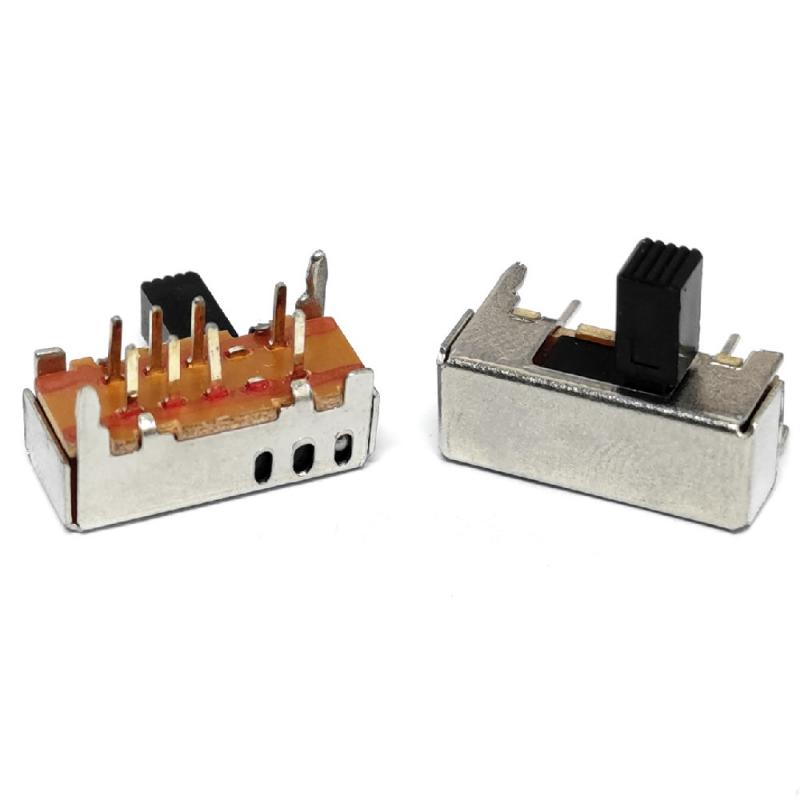

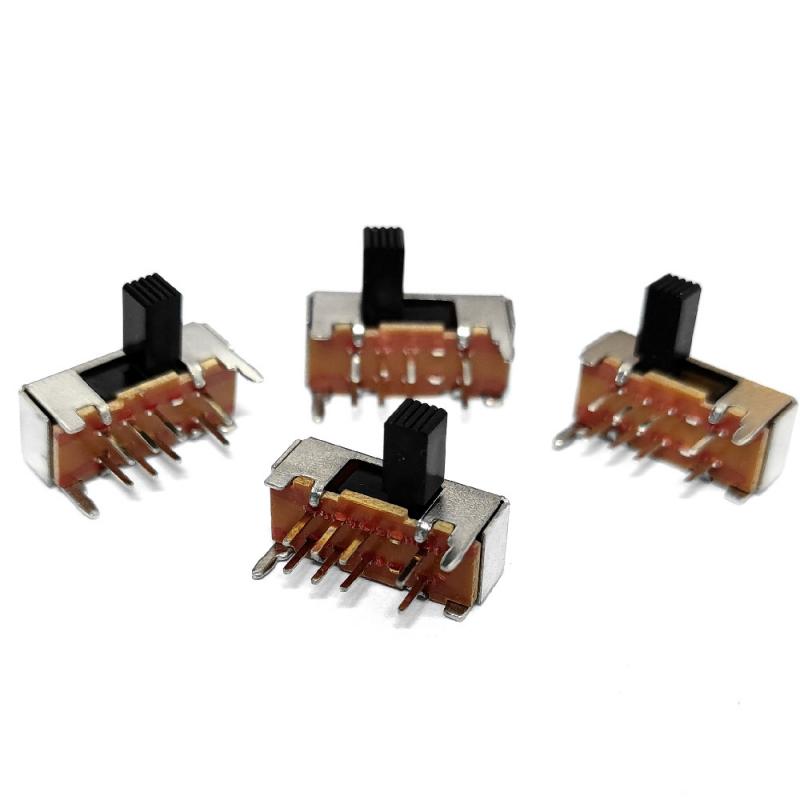

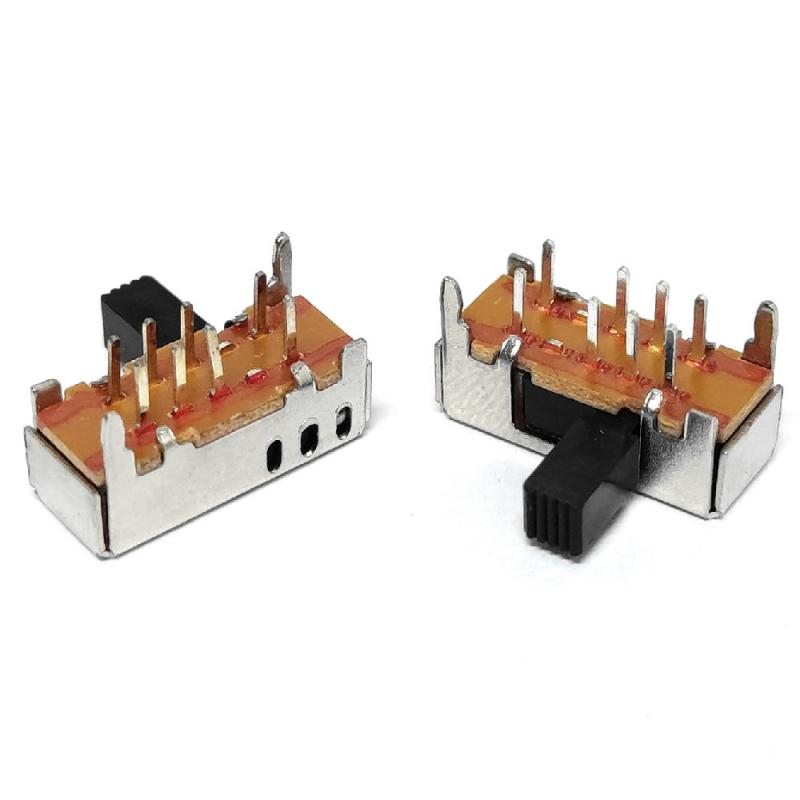

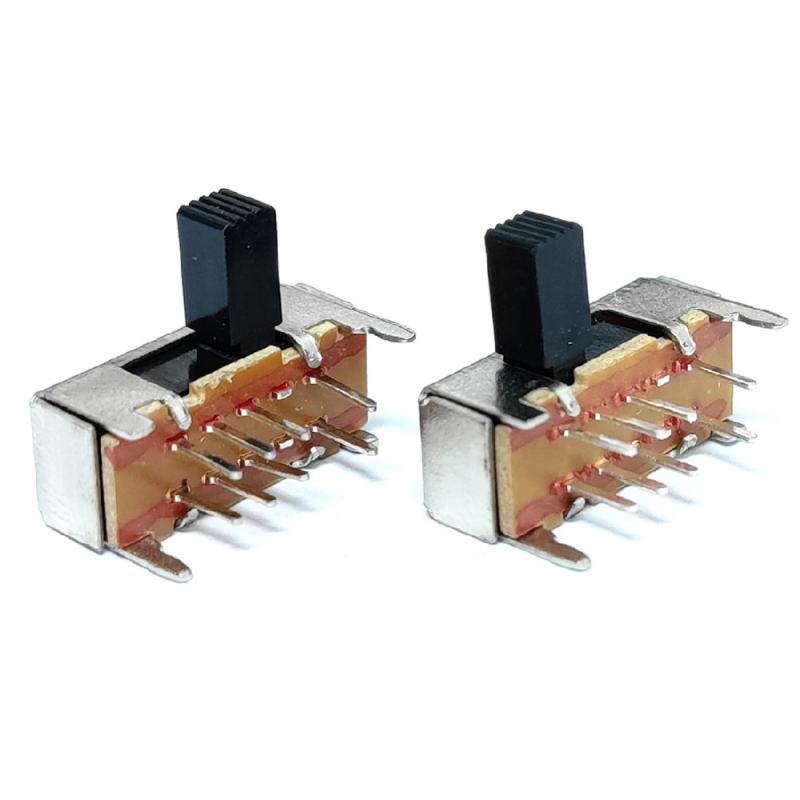

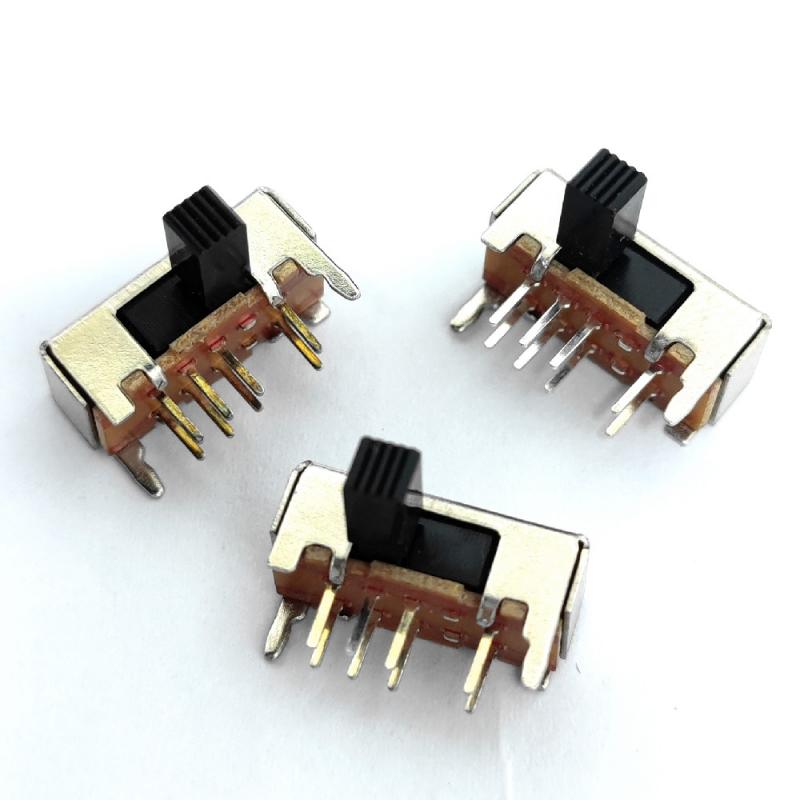

through hole right angle dip type dpdt 2 position slide switch

china mini slide switch manufacturer


 Specifications


Rating: DC 50V 0.5A

Function: 2P2T

Contact resistance: 30mΩ MAX

Insulation resistance: 100MΩ MIN

Operating force: 300gf±100gf

Life: 8000 pcs

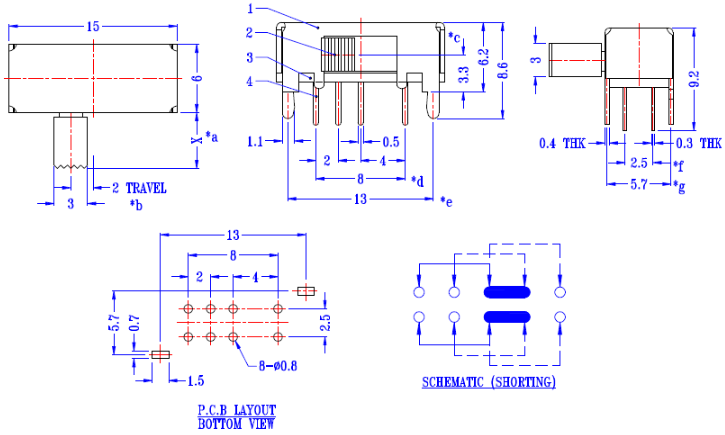

 Dimention



 Application of slide switch

  • Computers, peripherals and network products, such as PCs, routers, monitors, etc.
  • Telecommunication equipment, such as phones, modems, exchange, transmitters and receivers, etc.
  • Consumer products, such as smart phones, thermostats, headphones, TV sets, remote controls, etc.
  • Test and data acquisition equipment
  • Power tools, such as drills, jigsaws, sanders, grinders and routers, etc.
  • Automotive
  • Medical devices

 How does a slide switch work ?


The middle pin is fixed. When the handle is pushed to the left, the left two pins are connected; push it to the right,

the two pins on the right connect, thus switching circuits.


 Slide switch types




    3 pin slide switch     4 position slide switch    wholesale mini slide switch        6 pin slide switch
