Double row slide switches

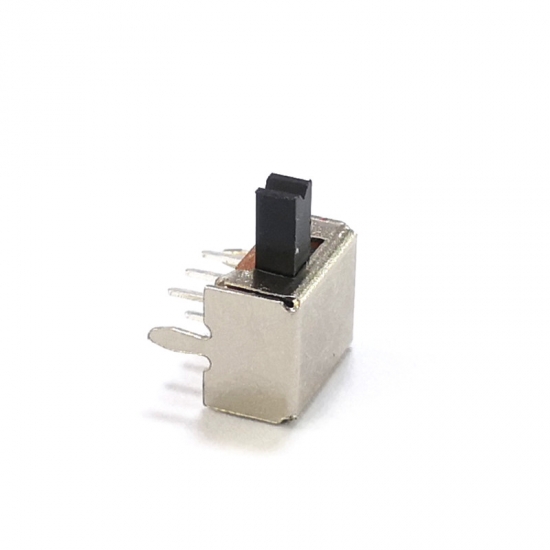

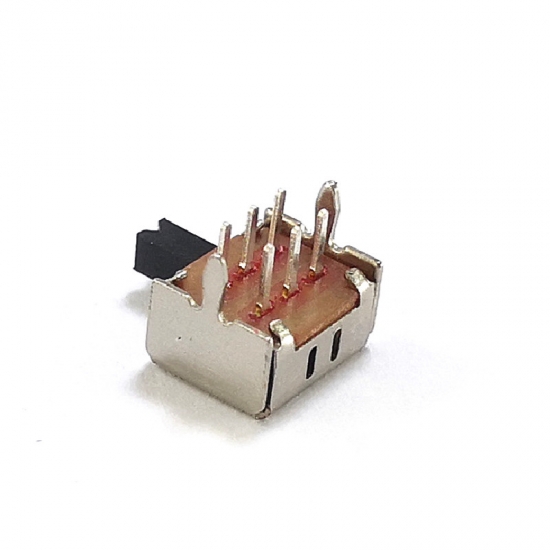

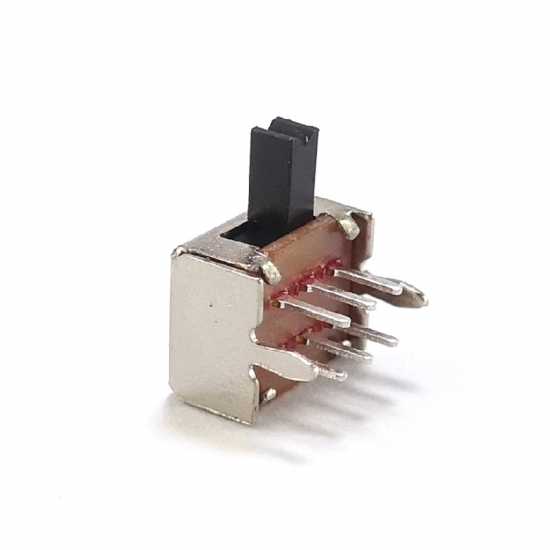

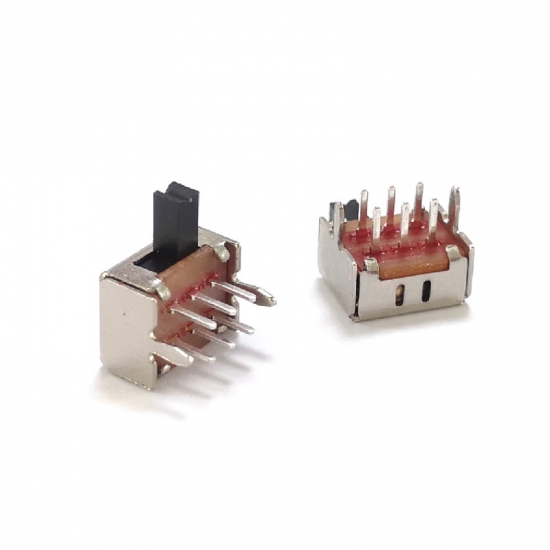

DPDT surface mount right angle slide switches

 Slide switch symbol

Type: 2p2t slide switch

Button height: 4mm

Operating force: 300±100gf

Rating: DC 50V 0.3A

Contact resistance:≤100mΩ

Insulation resistance: ≥100MΩ

Life: 10000 cycles

Full travel: 2±0.2mm.

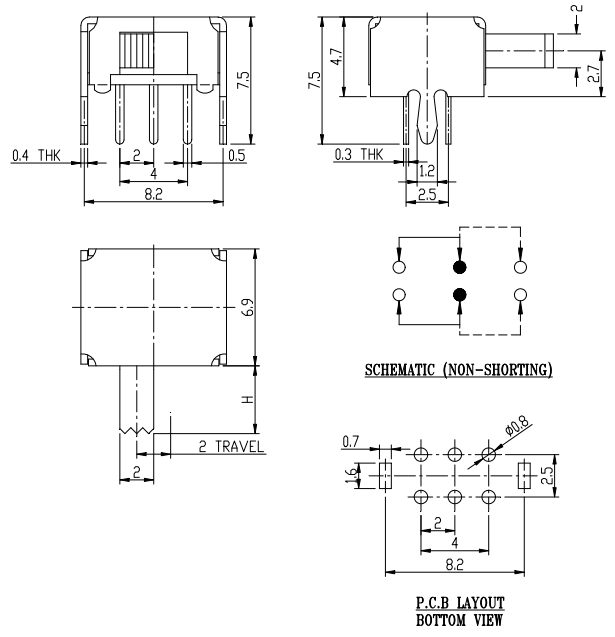

 Dimension

 2 ways Slide Switches Notes

b. In the case of using soldering iron, soldering conditions shall be 350℃ max and 3 sec.max.

c. Prevent flux penetration from the top of the switch.

d. After switches were soldered,please be careful not to clean switches with solvent or other similar products.

e. Right after switches were soldered;please be careful not to load to on the knobs of switches.

g. Please be careful not to pile up P.W.B.after switches were soldered.

 Application

• automotive (air bags, heating/AC, door handles, column switches)
• aerospace (main cabin lights, flight attendant buttons)
• consumer (cell phones, headsets, remote controls, wearable electronics)
• medical (hearing aids, health diagnostics, portable equipment)
• industrial (control panels, instrumentation, power supplies)
• computer (keyboards)
• telecom/network equipment
• handheld applications (power and selection switches, volume control, keyfobs)

  FAQ

1. Q: Are you manufacture/ factory? Location?

    A: Yes, switch manufacturer. three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
