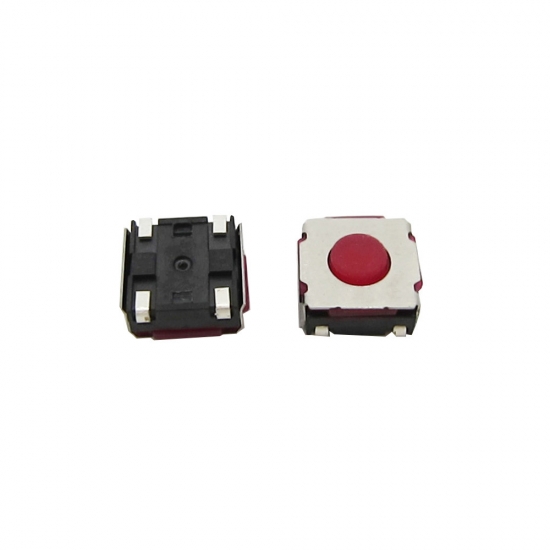

color SMD tact switch 12V

Surface mount switch green red black button color SMD tact switch 12V

  • Brand:

    Gangyuan
  • Item No.:

    KAN6247
  • Payment:

    T/T
  • Product Origin:

    zhejiang/shenzhen
  • Color:

    red and silver
  • Shipping Port:

    ningbo or shenzhen
  • Min Order:

    50 pcs
  • Lead Time:

    3 Working Days after payment
Product Details

Surface mount switch green red black button color SMD tact switch 12V

Basic Information

Contact resistance ≤50mΩ Heat resistance 80±2℃, 96h
Insulation Resistance ≥100MΩ Moisture resistance 60±2℃, 96h
Dielectric voltage proof 250VAC(50Hz/60Hz)/1min Sulfuration resistance 40±2℃, 72h
Resistance to low temperature -30±2℃, 96h Salt Mist 35±2℃, 8h±1h

Dimension

tact switch smd 4.5 x4 5mm.jpgtactile switch smd 4.5 mm.jpgHTB1YHJphDvI8KJaP.jpg


Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.

  • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
