Home Switch Push button switch 7x7mm non-locking push button

7x7mm non-locking push button

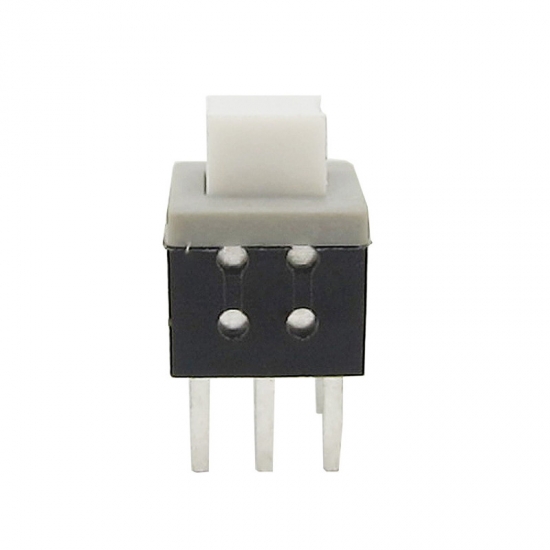

Straight lever 7x7mm non-locking push button reset switch

  • Brand:

    Gangyuan
  • Item NO.:

    PB111E06081
  • Order(MOQ):

    10pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 working days for payment
  • Product Detail

Straight lever 7x7mm non-locking push button reset switch

Basic Information

Model No.:

PB21E07431-07 non lock non sound push button switch

Ratings:

12V DC, 50mA (effective value)

Contact Resistance:

≤100mΩ

Insulation Resistance:

≥100MΩ  100V DC

Withstand voltage:

250V  AC  / 1 min

Operating Force:

180±50gf

Dimension:

7x7mm x H mm

Full travel:

2.2±0.2mm

Life cycles:

10000times


Dimension

 push button switch 10mm.jpg

push button switch 12 mm.jpgpush button switch onoff.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
