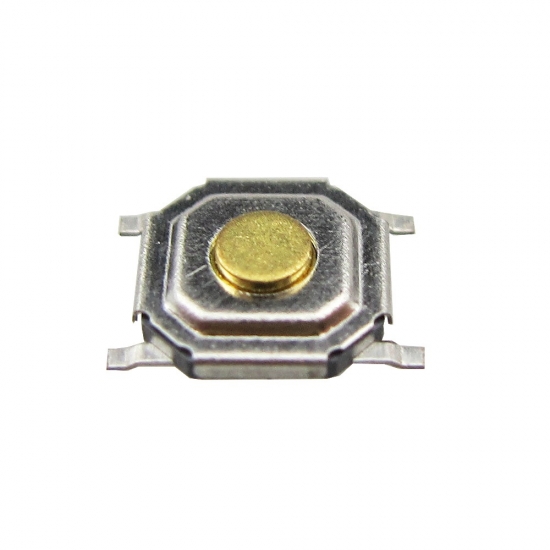

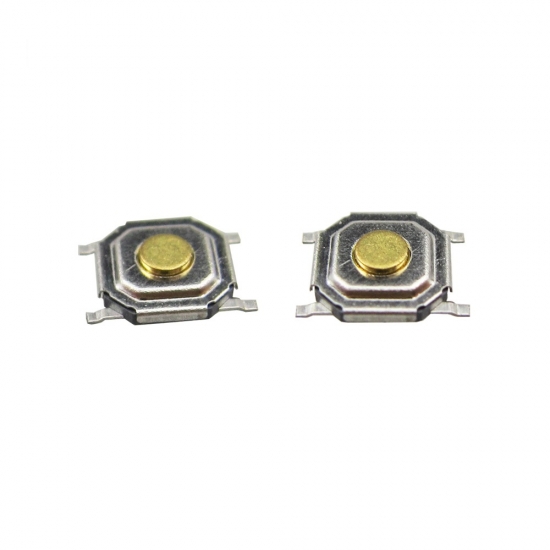

5.1*5.1*1.5mm 4 Pin SMD Tact Switch Use Smart Device

KAN0542: smd type, 5.1*5.1*1.5mm, metal tact switch.

  • Brand:

    Gangyuan
  • Item No.:

    KAN0542
  • Payment:

    T/T, Paypal full payment before produce
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Ningbo/ Shenzhen
  • Min Order:

    1000
  • Lead Time:

    5-7 working days
Product Details

5.1*5.1*1.5mm  4 Pin  SMD Tact Switch Use Smart Device


Basic Information

P/N
KAN0542
Dimension
5.1*5.1mm
Rating current
12VDC 50mA
Height 1.5/1.6/1.7/2.0/2.5/3.0/4.3mm
Operating force

100gf, 160gf, 260gf(at customers request)

Life cycles
100,000/200,000/500,000/ 1,000,000 cycles
Travel
0.25±0.1mm

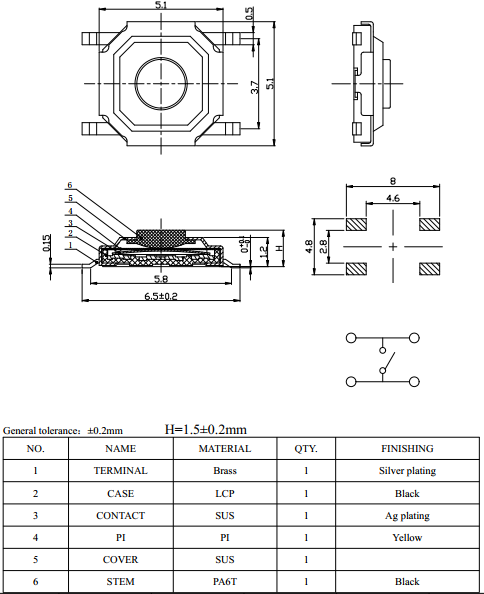

Dimension



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches
2.Please don’t immerse soldering flux into tact switches
3.Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4.The second welding should be done after switches return to normal temperature



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
